How does DSP work? [Part 3]

This time, we're going to look at distortion.

In Part 1, I briefly described distortion as "bending the waveform" by changing the sample values.
Now let's unpack what that actually means.

Distorting a waveform

To "distort" something means to change its shape.

A distortion effect does exactly that to a waveform:


We talked previously about how in a gain/volume effect, every sample is multiplied by the same amount.
The waveform becomes taller or shorter, but it keeps the same shape.

A distortion effect changes sample heights by different amounts.
That is what allows the waveform to bend shape.

Clipping

The simplest example of distortion is clipping.

For example, a clipper that only allows sample values between -1.0 and +1.0.

(fact: Most audio file formats will clip at this value)

Values inside that range are left alone.
Anything above +1.0 or below -1.0 is clamped.

Watch what happens as the waveform gets louder:


At first, the waveform simply gets taller.

Once the peaks reach the limits, they cannot get any taller.
That's how a clipper works. This is a distortion.

Let's zoom in and look at a few of the sample values:


Only the sample values that exceed the limits are changed.
The extra height is cut off, leaving the waveform with flat edges.

In pseudocode, the whole effect could be written like this:

for each sample in the buffer:
    sample = clamp(sample, -1.0, 1.0)

In other words:
if the sample value is less than -1.0, it gets set to -1.0.
if the sample value is greater than 1.0, it gets set to 1.0.

Waveshaping

This kind of distortion is called a Waveshaper.
Hardclipping is just the straightforward clamp.


But we can use other rules/functions to create different waveshapers.

You can create waveshapers by defining a function that maps input values to output values.

In other words:
If the original sample value is equal to -0.75 we set it to -0.88.
If the original sample value is equal to -0.50 we set it to -0.67,
and so on.

This is called mapping.
One value is mapped to another value.

And the table is called a lookup table.

Drawing the table

The input and output mapping can also be drawn as points on a graph.
You've probably seen this kind of thing before:

It's an easy way to visualize the waveshaper.

Input values run along the bottom.
Output values run up the right side.

To look up an input of 0.50, start at 0.50 along the bottom, move up until the line is reached, then move right to read the output:

The result is 0.67.

This plot is called a transfer curve or waveshaper curve.


Bending the line means we are mapping the samples to different output values.

A waveshaper

Here is a waveshaper processing a waveform:


For each sample of the original wave, we look up the input value on the transfer curve,
and replace it with the corresponding output value.

The same process on a more dense smooth waveform looks like this:


The Math

The input and output mappings do not have to be stored in a lookup table.
Some waveshaper distortions use a table, but some use a formula instead.

Here is the most common "soft-clipping" formula:

output = tanh(input * drive)

input is the current sample value.
tanh is a math function that returns the new sample value.

The function is simply another way of providing an input-to-output map.

(You could also use sin, cos, or any other function that takes an input value and gives you an output value!)

The drive multiplication in my code makes the original sample value larger (increases gain) before tanh waveshapes the output.
Tanh has more of a shape at the extreme edges, so increasing the volume of our waveform means we get mapped with all those strong parts of the curve.
And get a more warped (distorted) waveform.


Basically we get more distortion when we go into the waveshaper with a louder signal.

The algorithm is still very simple:

for each sample in the buffer:
    sample = tanh(sample * drive)

In HISE-style C++:


HISE's math.expr node does exactly this kind of thing, and it lets you type in your own waveshaping formula!

What distortion sounds like

Different shaped waveforms sound different (well duh).

A sine wave sounds smooth and pure.
A square wave sounds harsh and loud.

When we apply waveshaping, we are bending the waveform to make new waveforms.


More bending changes the shape more (and creates all kinds of harmonics)!

You can use a lot of different kinds of formulas to bend waveforms in weird ways.
Different transfer curves create different effects!


To Recap

A distortion effect changes the shape of a waveform by altering the sample values.

A clipper does this by limiting/clamping sample values.

Waveshapers use a function to map each input sample value to a new output value.
You can visualise this mapping nicely as a transfer curve.

Apply the mapping to every sample in the buffer, and the new sample heights you get, form a distorted waveform.

That is how a waveshaper works.

ustk

Claude said:

Main bus   Sidechain   Host buffer  SC lands at    Internal scratch
mono         mono         2 ch        buf 1        [m0][m0][sc0][sc0]
mono         stereo       3 ch        buf 1–2      [m0][m0][scL][scR]
stereo       mono         3 ch        buf 2        [L][R][sc0][sc0]
stereo       stereo       4 ch        buf 2–3      [L][R][scL][scR]
either	     none          —           —           ch2/3 silent

So a mono-track instance sidechained from a stereo source works fine: the mono main is duplicated across ch0/1 (HISE renders internally in stereo regardless) and only channel 0 is copied back out, while the stereo sidechain keeps its L/R on ch2/3. A mono sidechain gets duplicated. The network always sees one fixed layout — no mode-dependent logic anywhere.

Stereo sidechain detection is genuine, not left-channel-only. envelope_follower::processFrame takes max(abs(s)) across all channels of the frame, so it detects the louder of L/R.

I say:
All good

ustk

@dannytaurus said in Mono plugin with side-chain:

@ustk What's your intention behind mono compatibility? Is it for a specific DAW?

Simply for mono tracks like compressing bass for instance where you might need sidechain with the kick

And are you looking for mono sidechain input, or stereo?

In the end I think I just need to "monoize" the sidechain if it's forced stereo with mono plugins. I still have to investigate this, but it's not crucial as long as a mono track goes through the first SC channel... The ideal is to have the possibility to connect either mono or stereo SC no matter if the plugin is inserted on a mono or stereo track.

@HISEnberg Nice! Claude patched Hise for me, I am testing it in the afternoon...
If yours was made a few years ago then it might not account for the existence of HISE_SIDECHAIN_CHANNEL_LAYOUT

HISEnberg

@ustk I’m away from my system, but i did this a few years back (mono and stereo with sidechain support for VST3/AU/AAX). I had to modify the HISE source code at the time, perhaps this is built in now.. Once I have a moment I’ll share with you the process ;)

ustk

@Oli-Ullmann Yes, that's why I've made a patch and hopefully a PR soon.

Oli Ullmann

@dannytaurus
So if I understand this cortect, it's only for stereo plug-ins?

If we have HI_SUPPORT_MONO_CHANNEL_LAYOUT enabled, we have to compile two versions of our plug-in?

One stereo with sidechain and one mono without sidechain?

David Healey

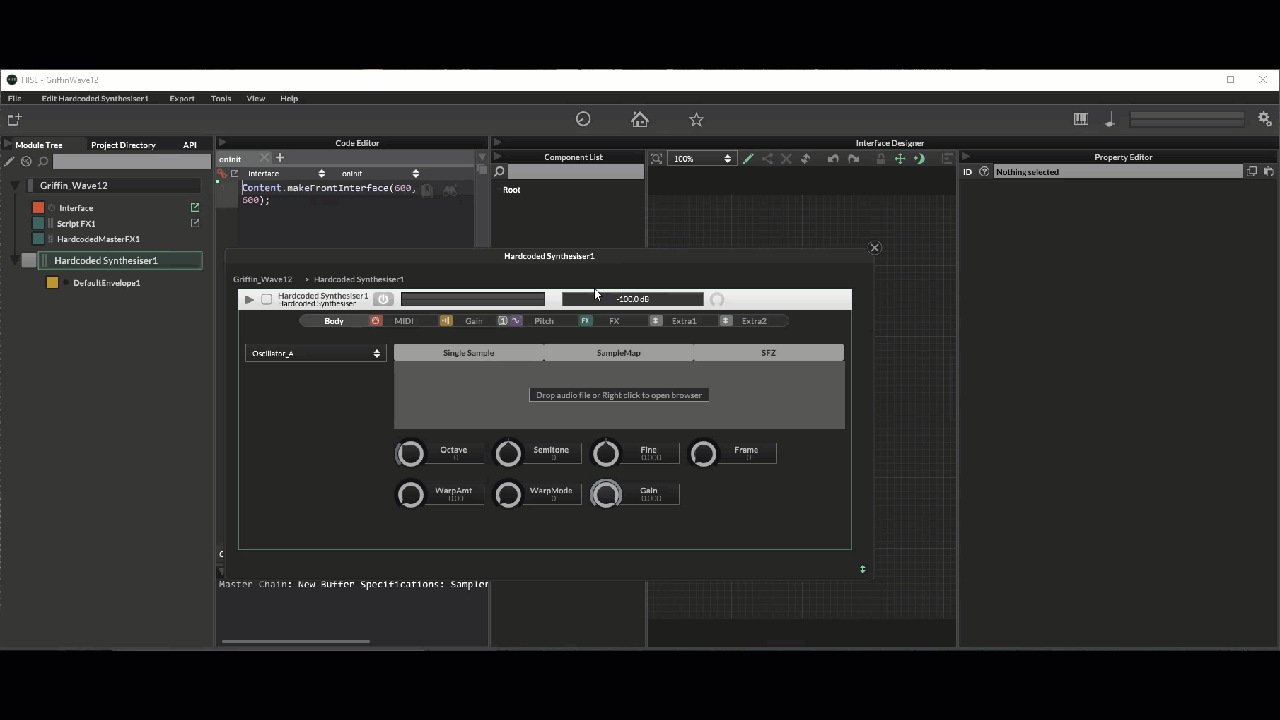

@observantsound Aha ok, I didn't realise how old that video was. The basic layout controls are the same though.

@observantsound said in How to move the position of the console tab?:

When I do Show Custom Workspace, then it appears instead of the UI editor. But Code Editor and Module Tree tabs are still there.

The custom workspace always shows at the right side of the screen. You need to readd the interface designer and anything else you want.

Here's mine which you can load up using the Load from JSON option

{
