@resonant You can also look at the Math.from0To1 function. It takes a normalized value and sets it to the actual value of the module. You have to set the min and max values using JSON in your script. Maybe that would help. It worked for me.

@David-Healey Here is a snippet of my VST. I use Paint Routines to draw the ARC around the knobs and LAF to customize the knobs. I got the PR code off the forum and it seems to work except for when I start the VST. I will try to replace the PR code with LAF instead. Thx

HiseSnippet 6741.3oc6c07baijcGTxP1j9iwylI0tGRkBCqraQMCGZ.PJJp0i2QRVVypLV1ZE0ZuaY6xCHQSJLFDfK.n9HdUkoxobK4Og7WPNkCoxo4XNjJ0V4dpZukq6+AIuW2M.5FD7K4wyGYWUyXIz8q69260u2qecitaPNKh3YSreYnmyvgjHEkBKePfeWRXnefRgRGc9PhRgan19buniu+wVNdJ6siRgaodvm9xCImrCw0570T197gVggDakBEV9SQZJT7JJze9Cex1VtVdcIoIon7DemtjG5LvIJM0C17ybbc20xlbjy.Apar4dc88tuuq+H.OKqpqLzp6qr5SdjER1RpJ+bqviUJ7ApaP5zsQ2N8rs1nYc8FlaXPV2Z8FaPL61sSCacil0sWmn2RovJOv1IxOncjUDITovU112971G6epGqAdhSnSGWB9fgRankYIuquqMxhXpJ2+XGW6DAUHH1TEDaKyDaum59N1NIomJ9tMMCszRHJ.KrjL7VVBdFhvSW.d4.oBBP5JLH8tps6F3LLJMGDOWWcOuHRPOKneRDJLZUV58KodeefBunZCrdEY2.3gjRTootdUs0z0W8tkJ4300cjMoR4G56+ps7r2kPbq8Egkg7Rx59iBi7GbP.IjDscf+ogjfrjLzK5P+QQNdDdNk.kfvHsSrBzXfZ2ekg18znpk05ShdPudjtQUJyxTCxEKUZgb63tSv4OkD8DKWnbwbCTx66OXnuG7PkxhDMVwepiczwynzwzLVga672PlQY4jLNrQSrYgZNMiUXP7a2ArWlQ4EHStJ51I1HehEOkjL8SVsItPexgOAJ5yJCDQB5n8a0XjVUqbxevxp7KjKM5F.5d6RKswcLPJMti4N7ey+0Qre2fmbC9u3I2hmbK9u3Iazbm3+nbU5u3YTOt5qaF+adNMiaglMh+8QTDip7tfdpVuQdcib78z.s5G1w8wc9hJtzeUUyqpVXUsSppc1pZutTwhkJ5zSqxIZe78zLz9I+DsJmocO3OWcULqhrRUCplJkiHmEAs2C75ilB19i.C+i7aGE330GpfOPy.s8zWU6C0BW8tPoItgj7qiSfdmhXCjX+fYuUDTWcFEQp3QIoXoK.l5N2ArCz.CgwXNeuW4Q6vo1InFQfuaktwpCPcX4NhrZoWCMjjfHwvBbU.BvebYNoUA99tXilu1kXqUdUDw7179VttnJakbQzpTl.MoxmCXtKzmB9y.et0YUs5iC9hBdqFBt3i9LO+NgUP+gEmJmwQwT3KYbx3JpSlowVFyOaE6vppl4byWFbsjYvVFyjsLDXKTki5lAM6mFyYN+LWrWQfa.lKk2ncLB4KYlj324YTpeA0pJeAg4LTb4.dlxASot2XewSSHTe9EBBt1qp0Xt6jqOW7V8Yxa0kMHoiHnwb3WkMTflefVGeXT7Z0JkNVBqOwIhLHD82RGZomePEGX3.86p4n8woiuTyk30O5XH0O7CoB.gpwx1dOnRpjP7ybdAxZEKki7MsbSU9NAGnfi3JThz9HzW9zLRDGyLeA3XPgZjTR.rOxOh7XuJTDU5hRZYypWubyiWctjfbyF09ClVAq3MZPGRfn7.IDBvTNpU0IG0pXP0cYxGAB881yyI5wCIdSJTaEtPEhvcENp.Rinw2dKd7ssccrIAJN13jWRcjpPQMe1EZO+e3+5STVrZvPpF9x26e9+YQqASoZ.941atf0PcoZ32+K9W+OmKLbKUwAJk4i6UJG93175.Tb63us+YbbjpZlkS9Cehxubucrhrv4dv6jfNtgjfHGTmnvNjSfY9wlIRQ0cHguJxeHLKyDSCkB2LhO0ItUlquE3ap+QNftCq86Eskmk64vrFTNSbVkmm7vWt2lmhCrkjvW82s4wDm9GmNeyM+7M4.jgl2QcqQ1N9I0bm9wS47FpMLWuUy0zaV2PAcHIlQq0Wqdy0MWWHCSdN550MMa0PAGWIsH0aYtl45F5MLTnBpBOT80kzzJmneumc4epV4Xb.Q8h4tGLE8yfzMoOASD00+zm5G7pPXtvDH8dVXXeWHfh53j5p2nw5q0pU8lnIShD9ZLI7MimInkGwkqfHjhwalvsie.n2gQMkVK+nMEkpnbCDF002PBc2TFcOzpCGckTgQyNxIBzCl.xfelExT1aSr+fs.F33PrwfT5A5BxfciME6qutZK8lq0ndiVqIoZX.5FqsQqVsZpP.2eVIyKmVgQmiOtB3Jz0Vwx0ou2.JOthpKoWjDae8I0oTTcnm693BGLAt9y6My9CknMm.nmDOlQc1Xsl5lsLza0RIuN12aSQk7qq1rNXVzvTecvNVfGu5j4w6a4chUntHOt2lmK9vPq.nRDpsTAiL6+k+hrrOjB5NJqAvrFpP.KZhX4ufqBopVW+Gmsw+rwZ7OKOnGyuJKh3Qzj7exVV7LGxfoHAWbwiwbHdVy7MS7XrXhGSAHoM5sl34Fy2f7yg3oltx.KA5L2LLhLT1z5O7ICbrscIG3G5fAhklS4MeSjslJC7sInw5QDHSbBOKlztt.G969se6pLVeNj1q+FZqVeZiglNJ0MwQoRhOR.VmKBq9bX8CT4yHhwGvTflqANlhvSDjEm2PASg4WNLOXBRu5+Xk2rd0goA3fRIgWevhIXyFAvW1VDw+DNhulJaNl4HNGendyMmSA5zAGvLYA2sOMOvcUUgfN95BaWcRX65pIq9l.x1bf.x9baNxfXxCN+2hTNN1VLktwwQQU9xnIZUron74i4nXEUJYKDDjUNU90iEBz5aNWnjFkIcUwDGrsSdv7ppL5dahyIpwciDMtAhBzOOLOjdC0z0Vawf6kDcT6g3UdRr+904AuRpIj90H3lXW7sTEWNZwfF9MBnaS+TmeiEGyziGcblPJ56ML2.lEXCc84yt4lpBqSqHZ6Ih1mmh1FeCf1RSUujuX4hdo2OevZtwaJXEmAy0TW2.lQ4Fu4x63kFVfE98ixiEVQEe4SeKpdbaU4E4U.w+iWLAg92DZHS2y0SHAgXzrBh2+VAv9k+lLwPpbzXNJ+YSCxLV85pP6n0nldsb0dm85aMg329puHC717yuLvaIUp1anRg+R0RxuezRr+kGDCcVBpEVVQYZw2s8nnHPjxXhNQdrWvNcdrpE92YqYfZgR3xAPa9kU+3D0fUL4qqPn0Ij83EksRFNg66iQeZEbNaAYkWCLi0MMZttdKCyEGaFLrckB4fse1acrMtp46fplr5mt6RnnaSQzMdr3nwAaqnbM0Ge148IdhQwsxs4XO0ho3Jvi+u3OwwbEKLlO426fxu1fnfKHnf7+XbQHDEEPz2F8v2BQHn.KBvqszX.TEiJ4sN9l3BI+tp8hj1CJYLT1M8EMDuDwxjmXwux+RlUebkpEXIPWh2k9uWhsFu3K4.6SXhp3kssZbVO3rgVdnWwvsBAtazfwIgtEjBlP4w25S330psCuuAyKJXDKqzjebud.SA4YnmTnsrsSZjjhfYbHwCz0m..ftSRzjxrMwJn6waaEHkytVm3G.cm3d7JAHo3PLa4xMx08.qniiIPlu476dfzzlrMcAKkx+QiFvDvXwLnIwdlFl0gfdhOjwyfz0zzqUOyOUWvzgjeAsMdnSXzVADqDFk2BUy6WIkhgrC8O8.KaaPAddKWh.ea+Qd1Hm9LVF66Gv6jxlSpxY1bhkyikaoKTNI9M6oxz5GeSmca088sG4ZEIuG3vcJHOCLV.wMdFt4xfdunyEWIru11XbyKDeW0Cbh5db9XbobvnhxaELx2Ng2TksLQo.7Jp69qdKs2AWRn8UYseI0jWOFaSCl7Vpjvv1i.Tl4MD7UaB9NOwgbJ+c+k7pOKr7bCXioKuXahg96aEE3fdxAi71vHDcIf3xyi3huS5BKgN0YOqGqv1l3YSe.GSlmoA9bAdlFwYlidSo3gW9UTYxMTS2.h4sSJK72ql9N0GFPvXDOx+.HVuJgVCF5R.mOjpZcb869JTBN9KhmuNZaiTToKm0tLuu9U99jfO4M9q7HRzo3a9DeEy7+FB8hI6CoB4W16L.97IXT3pp5z3+2BemoX3ANbSYnSgl1A9tmO7XeOmtXRLJhg9VC.OcQw3O0Ov1w8OwrxO2J7HKGWzsP6QgCAr+Xu1P8P23yfYYgGQWs8qtqUWPleNNzE5dA28CfsLInV2DaZI1HUEBE9r3LukZ77SNhDFof8YGXE.YEA7Lq+Bas3.jX.D3KVXqvjNJrLlOSBRg0JX6dUUFFlADyCQwEcda1kDZ1qodVOKbcokZ2aSaWP8sFO27Z1jhNq1UXOHvbrgOAtsWBAv6fJrBBvmv1SCKqZR8AKR5J3fDjXJTUOb+1fh5o3XDGYEzmDQqewD3aDBOB0pLT9Qtf.WP7qp1GDf0URvAl3JzQHkag4sBWgVg4WeBLKtGwieB7osuiWBygFM6acVxyFvyL8DVRaMJxe.36HdGwKoJENz0IZxpRrryWUhk2kSUhpFV+xnBmT1ErguJqg6DX408X4F9GHzv77yuk4Y9lXHurfX3lpg98hdYGZaICoenXef.Q4gKvOT5Bg7FZg0dfuezwzYeMHw94Jpl5iYhcC08BeBVScsbiIDb9FympRc2ArkGQhEutZuypwyHewMOyYvRKIYkr7hZkTTcGX7bfiUDHcMAaOHk4yZi8RF1gzyZjajTkk0BbQqa96YYtpZg9WEIcsH70G+xvy85ZH2Q7dItvSII2dD45XVZZoCBm5xMeWfWS8KroJuRNAuN6cgPUDk8Ddk4S9shpQKHg1IupdwNK5KSet6XLxVwMmPEeC08gdHGvyHTGREWrtWYVc54U0EUefGtskrkq2wUJl615ZpF555RM26AjfIh+XzXCcCilF7yQ1uzC62I1hdFX0nLDtJ3sfAhInJVDLr6RbNgj08e.K9zZwYmmNXZgWH2BK7fmBupq40DKQMVhstIjZ3vZ7rx2QGOyEhiVZ9LBR6ieE4TFvX8x00MzqCYswFsZrw55Fb6B1g8KagUdazXhF3yqLdE0PHjcYI7sRTbn4kmHlWrYJfEGbrvXC3I37hyvoZiRdnjeP.92RbDeyK+P9Egg7+t038WQfKugv3DWxgZjphu9FooH2Ty3OMTyeTLTSoX6SiKyXMBk96bC1jpIufi1jVv+zvMyTJeU53FFK73Mwk6q8AbDTIuDi3Xb4GwoDaRlyw7w9FaHmBYhoDAmwhMGyzh8mlj4kcRlSTMTxO3Tf.t.d4OxI8zzr.wF1erkE85fJd.oV+IsZR7xbo68EFx6ZpejgdVg6bLjmnyq+L00p0vzzbc80WuQqFF3YtgwZzEDTPR.1ABv3pu4i7Nm9PSrdi0jAH2TuVCrtZUeM8lF5qmQGZEv1dxQJ71TrcC0Cw8A.qZyD1xjUgmtO4I5RRdsMMeCVaSyK4qEn+3qo5rz+iKz22M.V4aOCf+HP8dhUvWuUcgUDcowBLNYgsm1PXl4LOlGbFTMdVtB6I.n51wIjMwFYWTfNtTkMeu5ljWHfzjIiG1RIKyDeZBV3oQdoYk0ygUVJWVQZ91YXG17WUxsbxKIb9ETzvPLHlYETxkjsQyolLqIy5f0Rq0Vei4TJj7JGxvHL7pLgkTHNDx7KTVtmGl0aQlGbgP+YC7DO2nt4aDyyg6Bw6wkIKqKLM22hrOzci+zpdcC8larwZyI6KLyJIlQ.zSVHvVCgIVtrBhqo9TRzNAm+VULzhJFVu95qWei0ZVet8oweU8YzlY07kxE+k4lFPbC77CYYdc0mZcBgdOhQG86Om9bO+fAZeJAhqB2QXFS4Bt62MuWvcCm6K3tG2MBfvQvf.gC8CAMGgZtMYfyQ9djPoTyTBybKgTp6PhF4IW0rjjnBEE6BhBA5t1lwIZJl3AVdRUF7rTMsuivdo+2+IrEBrMA3b6GG1EDLVzXRR2reGLxMjPc1YHVvzjMES9maEXSOCqhaEukm107mwk7Z9akuycM+88fMbozMQXwXL11A2waOv6DhKX4Rw3OPk67INUYSu8887i2qVoczGRhBb52mHo+jKCsUTD54T3hK3PhKwJTvb7uZyGBSmxJftSetbxBiE9VYL29qejJCtzism12e2nrK++q2nryu0G3B7618h+PUvUroFsqT6am9xuI1KoeSzFCr5F3+R9akDM5uFMEfu83qP793yZFYuBkTTF.CY7xtckqpwJn4ksf0urErwksfqcYKXyKaAW+xVvVytf3H570KBsMfHaN3AraxoBwucSvLQgLnCwFhifsuuoKuUO7jGUXI7WrV81pxWRtwWFZJK8ucEUjD506jl.Q3sGZoh24Nzzzr7r0vTKUjcso5Z0S6dw2UncCHfw3m552wxkeN2RqmJza.Qqd0BH8cBgnw2kuuwqT1Nv5zC8wyZE69hnb0jMUdk9U0767EqVpHd6dVjdKsBMHjTMKn0tKOsnicfAstmVcoDLgTLkRoNjRyZqg2uh3+AbUaRjFqU0dn0tPZ8YWNdXnwUX+Jr1oNQGuk6vispfMb5QAynpldMi0VkdMm1uFxGOv00YXHoxyZPu5Csdl4Kz9HsV3eUm9WunJGs2Qqd70ipTihMQ5caDupgdP2YW0za+ywqs3CBXd0kgdU7TXEWal5IUmo9KlH9DDA4w6.lZkTkFMSpRil.2Kx0RPYipZajVpT9xnEGH7e3cngfBSjXOL3MDdjk7GnYB+OBUp00if4NX4BSk2FpOJEoXHvGGBoBT5pZOi152AuYRoMN7WyiPvLOIabUAsHW2iVuFlTgSK1s7YohWv5ztyc3mfroYjbje+9twm1sbMR.XnkmQhF9+IhC5U+q1mnMQEEsep1r5x0Xr6g34xhXeHD5ikG.tJVn9zpIs4Lzr0XZNagmwUh8QPlITUMgAppUtK3iJfXWlUHZcyEbktnjhxX949Qp4eiem5u6wuqf+tghjogGXE7hCMZzPsjqbb7tBk6z6LTqSW+twOiWT0FoOFhap5sgznm9ujj29nG8RFmCYUN8DjVlxFLZROB0B280VwmLxJkSyG59Oqp14T4QZpRWqrk+3xTcrwxmdlQKi2e54VbwSCKVM5kykLgiHK85odBTkn1.DkJBVMOl1XFLMdebel1Gp0TeLN2Ply+YHmWLGBlDqaLertwbw5Fyj0S3coC+sL6SOi3zqJ8TJ3B.CyDIfT1r1M4.iiXCOv3kmDkwGjbjP1AIepjhqEJPpQStvcLx314.3hG4riKLaRINV5jjOwN7TR3rroTmdZ1x86X5Bc8YIa7d+rTLYEfrTNQcfwHbRpAEKJKVRN95STpjPAWnT2TTnjjqrLARVPjjgnwkHYHXxBjLDNQ4QV5lCqhLmRdY4g3opGzKkIEpSS75oecF+jIWFBDNg8HRkK+jKF+LGCEg4fexTxNk9nkRqo.iXQec8oPDFlOBxW+bOMsmm437+7jSXdZtieh9yiJwC0ed4SOW+4V8oGs+mGeP8Y4l8z8+b1w6OsnIGv+LEL6Y7OulU7X9mW9IG77rYN9g8+4zS6ufnPfhwJc1i7eVBx4T+mkjzC9OUhvSM6Y+Gy6YXV4dJ+W3LvzeAuojuB.DanpS32hkN6UAvhV9LWI.Omc99Y4k8VAPJyrWL.RYl2cC.ifm6cQYvXBC7gEV8irNwoODfu1i.+gz4uROV39iB0X1agiEGh72cjsbcSthOBEhF44OmENZoh87CvumFNdoUADKdwyx+ZVOglzaYc5mmiwtZ3yRXN2L7z.9c86Z4BstMACLMoT0no73doEKYlL3mBj2OtJJVL.hzMvSJSZYWEerHex8fWW6XI2uD7OwZjJTUcZEieFPxV.TlONwzloX9wYH+0GAuB6GEf2oQo0BRakUY0xEr9XTWg2aNQQY5vxyk3jMi.z1Ic8M.zjBCLqJrnknEnqWTh1iLe0Ogu3c0SV9yyKswS6Diq9UwIu8QFXAQzRoOsse+6ge3BvYdU70LYLtJGOhbJW7PSfyN3P6BcNosvcknB7QtOILzpO3f6rJ7gKoegDN5XhlWRUqUFhHIEIeH77wVgZcHDOMrore+x7O+CEw9shwe2XP.9fy.dE7tjGJmb6+q8GoMXDNiqgjtN8NGl0KNLhFZOFcb7r5Ra1KJVJoUeco4QPPkfWP6Xt.pg7+xJHGt5pSzpeLMv3Y9yFcKg2YdiXfmMPMnRsKDsS6yCgfmvVmkbEgDSwO6ixyjLCRhFaZVAIJhI5nuluvKftZesd7IqLU0bFk.UhLBUxgq.Oh7JR4DE+IFRJ03Qfwu1PkuCpgwZb3oZC4B7XGWTD2qlSHsxWc0XifhYUm90jvG4+Tvxx+zJkkD9nVELVo14flU3H9ebpkWjlMirnicB4bzOkpv2KE38psKe8GVUXsY.ZA4aHyRmo1gHMS5wYTrWMVKgU0iC1wIfP2CjUPcQNmLM+l3WsDMFUTaLbUR3k6hhwZySUUNcNFSVSNqRD90MImEg4cTk9lpkt1Kghq0bJMzufSLse5k+L266jGKlcMIS0.XEC+PxLyRkbGNWN1.7.7iPiFGEZ+0se7iRsB8i7O3Pn9vNnxCbv6DpOp9Z50zqRSvB+FIH7rzMmMFpIOi3qYaZRFr9fzldqftZVAXXLTGWzuGNIKmDtbkHA2i1vP43K1IKs8AqiZVcBqDSGOljXqdaR+i7OzxtB7GrOEXrgavLz9.sJzxevdZ2QaM1j.oiohMwPAoHao8QKQ5XdwKwXR2zyzeAJoeHNTHKbL5mpn3ZBJGNSFTLhLd7y0NBWXTOv6NjyZ0zEyBLp7eEc2zfKWVaeWGa1Jkk0slvWPHVTKZrwwQ+OdPYi0IdFMWJLeh7ZBWg6nGKwIwhzdA9CzOx2.+Hkw0B3CLB+SJeyqTvVf1Sx0gpjtzrIdOoFgwc33j77z55Dz0kNFXdu0gNHMwQKMDm5Kz6hquZRWZRWtPZLEC1qjfut7ztsg.af7Nu2w.JSrrN0CZL7d5wPv0b3UbR36TjnT7AjZEvhHBdhBMHti1i5Padc92.qEfSNY0TmdyKij9JBn953AbcAcQhSd+XdjyP2q3K+8+Sa91Bp

@David-Healey Here is a snippet of my VST. I use Paint Routines to draw the ARC around the knobs and LAF to customize the knobs. I got the PR code off the forum and it seems to work except for when I start the VST. I will try to replace the PR code with LAF instead. Thx

HiseSnippet 6741.3oc6c07baijcGTxP1j9iwylI0tGRkBCqraQMCGZ.PJJp0i2QRVVypLV1ZE0ZuaY6xCHQSJLFDfK.n9HdUkoxobK4Og7WPNkCoxo4XNjJ0V4dpZukq6+AIuW2M.5FD7K4wyGYWUyXIz8q69260u2qecitaPNKh3YSreYnmyvgjHEkBKePfeWRXnefRgRGc9PhRgan19buniu+wVNdJ6siRgaodvm9xCImrCw0570T197gVggDakBEV9SQZJT7JJze9Cex1VtVdcIoIon7DemtjG5LvIJM0C17ybbc20xlbjy.Apar4dc88tuuq+H.OKqpqLzp6qr5SdjER1RpJ+bqviUJ7ApaP5zsQ2N8rs1nYc8FlaXPV2Z8FaPL61sSCacil0sWmn2RovJOv1IxOncjUDITovU112971G6epGqAdhSnSGWB9fgRankYIuquqMxhXpJ2+XGW6DAUHH1TEDaKyDaum59N1NIomJ9tMMCszRHJ.KrjL7VVBdFhvSW.d4.oBBP5JLH8tps6F3LLJMGDOWWcOuHRPOKneRDJLZUV58KodeefBunZCrdEY2.3gjRTootdUs0z0W8tkJ4300cjMoR4G56+ps7r2kPbq8Egkg7Rx59iBi7GbP.IjDscf+ogjfrjLzK5P+QQNdDdNk.kfvHsSrBzXfZ2ekg18znpk05ShdPudjtQUJyxTCxEKUZgb63tSv4OkD8DKWnbwbCTx66OXnuG7PkxhDMVwepiczwynzwzLVga672PlQY4jLNrQSrYgZNMiUXP7a2ArWlQ4EHStJ51I1HehEOkjL8SVsItPexgOAJ5yJCDQB5n8a0XjVUqbxevxp7KjKM5F.5d6RKswcLPJMti4N7ey+0Qre2fmbC9u3I2hmbK9u3Iazbm3+nbU5u3YTOt5qaF+adNMiaglMh+8QTDip7tfdpVuQdcib78z.s5G1w8wc9hJtzeUUyqpVXUsSppc1pZutTwhkJ5zSqxIZe78zLz9I+DsJmocO3OWcULqhrRUCplJkiHmEAs2C75ilB19i.C+i7aGE330GpfOPy.s8zWU6C0BW8tPoItgj7qiSfdmhXCjX+fYuUDTWcFEQp3QIoXoK.l5N2ArCz.CgwXNeuW4Q6vo1InFQfuaktwpCPcX4NhrZoWCMjjfHwvBbU.BvebYNoUA99tXilu1kXqUdUDw7179VttnJakbQzpTl.MoxmCXtKzmB9y.et0YUs5iC9hBdqFBt3i9LO+NgUP+gEmJmwQwT3KYbx3JpSlowVFyOaE6vppl4byWFbsjYvVFyjsLDXKTki5lAM6mFyYN+LWrWQfa.lKk2ncLB4KYlj324YTpeA0pJeAg4LTb4.dlxASot2XewSSHTe9EBBt1qp0Xt6jqOW7V8Yxa0kMHoiHnwb3WkMTflefVGeXT7Z0JkNVBqOwIhLHD82RGZomePEGX3.86p4n8woiuTyk30O5XH0O7CoB.gpwx1dOnRpjP7ybdAxZEKki7MsbSU9NAGnfi3JThz9HzW9zLRDGyLeA3XPgZjTR.rOxOh7XuJTDU5hRZYypWubyiWctjfbyF09ClVAq3MZPGRfn7.IDBvTNpU0IG0pXP0cYxGAB881yyI5wCIdSJTaEtPEhvcENp.Rinw2dKd7ssccrIAJN13jWRcjpPQMe1EZO+e3+5STVrZvPpF9x26e9+YQqASoZ.941atf0PcoZ32+K9W+OmKLbKUwAJk4i6UJG93175.Tb63us+YbbjpZlkS9Cehxubucrhrv4dv6jfNtgjfHGTmnvNjSfY9wlIRQ0cHguJxeHLKyDSCkB2LhO0ItUlquE3ap+QNftCq86Eskmk64vrFTNSbVkmm7vWt2lmhCrkjvW82s4wDm9GmNeyM+7M4.jgl2QcqQ1N9I0bm9wS47FpMLWuUy0zaV2PAcHIlQq0Wqdy0MWWHCSdN550MMa0PAGWIsH0aYtl45F5MLTnBpBOT80kzzJmneumc4epV4Xb.Q8h4tGLE8yfzMoOASD00+zm5G7pPXtvDH8dVXXeWHfh53j5p2nw5q0pU8lnIShD9ZLI7MimInkGwkqfHjhwalvsie.n2gQMkVK+nMEkpnbCDF002PBc2TFcOzpCGckTgQyNxIBzCl.xfelExT1aSr+fs.F33PrwfT5A5BxfciME6qutZK8lq0ndiVqIoZX.5FqsQqVsZpP.2eVIyKmVgQmiOtB3Jz0Vwx0ou2.JOthpKoWjDae8I0oTTcnm693BGLAt9y6My9CknMm.nmDOlQc1Xsl5lsLza0RIuN12aSQk7qq1rNXVzvTecvNVfGu5j4w6a4chUntHOt2lmK9vPq.nRDpsTAiL6+k+hrrOjB5NJqAvrFpP.KZhX4ufqBopVW+Gmsw+rwZ7OKOnGyuJKh3Qzj7exVV7LGxfoHAWbwiwbHdVy7MS7XrXhGSAHoM5sl34Fy2f7yg3oltx.KA5L2LLhLT1z5O7ICbrscIG3G5fAhklS4MeSjslJC7sInw5QDHSbBOKlztt.G969se6pLVeNj1q+FZqVeZiglNJ0MwQoRhOR.VmKBq9bX8CT4yHhwGvTflqANlhvSDjEm2PASg4WNLOXBRu5+Xk2rd0goA3fRIgWevhIXyFAvW1VDw+DNhulJaNl4HNGendyMmSA5zAGvLYA2sOMOvcUUgfN95BaWcRX65pIq9l.x1bf.x9baNxfXxCN+2hTNN1VLktwwQQU9xnIZUron74i4nXEUJYKDDjUNU90iEBz5aNWnjFkIcUwDGrsSdv7ppL5dahyIpwciDMtAhBzOOLOjdC0z0Vawf6kDcT6g3UdRr+904AuRpIj90H3lXW7sTEWNZwfF9MBnaS+TmeiEGyziGcblPJ56ML2.lEXCc84yt4lpBqSqHZ6Ih1mmh1FeCf1RSUujuX4hdo2OevZtwaJXEmAy0TW2.lQ4Fu4x63kFVfE98ixiEVQEe4SeKpdbaU4E4U.w+iWLAg92DZHS2y0SHAgXzrBh2+VAv9k+lLwPpbzXNJ+YSCxLV85pP6n0nldsb0dm85aMg329puHC717yuLvaIUp1anRg+R0RxuezRr+kGDCcVBpEVVQYZw2s8nnHPjxXhNQdrWvNcdrpE92YqYfZgR3xAPa9kU+3D0fUL4qqPn0Ij83EksRFNg66iQeZEbNaAYkWCLi0MMZttdKCyEGaFLrckB4fse1acrMtp46fplr5mt6RnnaSQzMdr3nwAaqnbM0Ge148IdhQwsxs4XO0ho3Jvi+u3OwwbEKLlO426fxu1fnfKHnf7+XbQHDEEPz2F8v2BQHn.KBvqszX.TEiJ4sN9l3BI+tp8hj1CJYLT1M8EMDuDwxjmXwux+RlUebkpEXIPWh2k9uWhsFu3K4.6SXhp3kssZbVO3rgVdnWwvsBAtazfwIgtEjBlP4w25S330psCuuAyKJXDKqzjebud.SA4YnmTnsrsSZjjhfYbHwCz0m..ftSRzjxrMwJn6waaEHkytVm3G.cm3d7JAHo3PLa4xMx08.qniiIPlu476dfzzlrMcAKkx+QiFvDvXwLnIwdlFl0gfdhOjwyfz0zzqUOyOUWvzgjeAsMdnSXzVADqDFk2BUy6WIkhgrC8O8.KaaPAddKWh.ea+Qd1Hm9LVF66Gv6jxlSpxY1bhkyikaoKTNI9M6oxz5GeSmca088sG4ZEIuG3vcJHOCLV.wMdFt4xfdunyEWIru11XbyKDeW0Cbh5db9XbobvnhxaELx2Ng2TksLQo.7Jp69qdKs2AWRn8UYseI0jWOFaSCl7Vpjvv1i.Tl4MD7UaB9NOwgbJ+c+k7pOKr7bCXioKuXahg96aEE3fdxAi71vHDcIf3xyi3huS5BKgN0YOqGqv1l3YSe.GSlmoA9bAdlFwYlidSo3gW9UTYxMTS2.h4sSJK72ql9N0GFPvXDOx+.HVuJgVCF5R.mOjpZcb869JTBN9KhmuNZaiTToKm0tLuu9U99jfO4M9q7HRzo3a9DeEy7+FB8hI6CoB4W16L.97IXT3pp5z3+2BemoX3ANbSYnSgl1A9tmO7XeOmtXRLJhg9VC.OcQw3O0Ov1w8OwrxO2J7HKGWzsP6QgCAr+Xu1P8P23yfYYgGQWs8qtqUWPleNNzE5dA28CfsLInV2DaZI1HUEBE9r3LukZ77SNhDFof8YGXE.YEA7Lq+Bas3.jX.D3KVXqvjNJrLlOSBRg0JX6dUUFFlADyCQwEcda1kDZ1qodVOKbcokZ2aSaWP8sFO27Z1jhNq1UXOHvbrgOAtsWBAv6fJrBBvmv1SCKqZR8AKR5J3fDjXJTUOb+1fh5o3XDGYEzmDQqewD3aDBOB0pLT9Qtf.WP7qp1GDf0URvAl3JzQHkag4sBWgVg4WeBLKtGwieB7osuiWBygFM6acVxyFvyL8DVRaMJxe.36HdGwKoJENz0IZxpRrryWUhk2kSUhpFV+xnBmT1ErguJqg6DX408X4F9GHzv77yuk4Y9lXHurfX3lpg98hdYGZaICoenXef.Q4gKvOT5Bg7FZg0dfuezwzYeMHw94Jpl5iYhcC08BeBVScsbiIDb9FympRc2ArkGQhEutZuypwyHewMOyYvRKIYkr7hZkTTcGX7bfiUDHcMAaOHk4yZi8RF1gzyZjajTkk0BbQqa96YYtpZg9WEIcsH70G+xvy85ZH2Q7dItvSII2dD45XVZZoCBm5xMeWfWS8KroJuRNAuN6cgPUDk8Ddk4S9shpQKHg1IupdwNK5KSet6XLxVwMmPEeC08gdHGvyHTGREWrtWYVc54U0EUefGtskrkq2wUJl615ZpF555RM26AjfIh+XzXCcCilF7yQ1uzC62I1hdFX0nLDtJ3sfAhInJVDLr6RbNgj08e.K9zZwYmmNXZgWH2BK7fmBupq40DKQMVhstIjZ3vZ7rx2QGOyEhiVZ9LBR6ieE4TFvX8x00MzqCYswFsZrw55Fb6B1g8KagUdazXhF3yqLdE0PHjcYI7sRTbn4kmHlWrYJfEGbrvXC3I37hyvoZiRdnjeP.92RbDeyK+P9Egg7+t038WQfKugv3DWxgZjphu9FooH2Ty3OMTyeTLTSoX6SiKyXMBk96bC1jpIufi1jVv+zvMyTJeU53FFK73Mwk6q8AbDTIuDi3Xb4GwoDaRlyw7w9FaHmBYhoDAmwhMGyzh8mlj4kcRlSTMTxO3Tf.t.d4OxI8zzr.wF1erkE85fJd.oV+IsZR7xbo68EFx6ZpejgdVg6bLjmnyq+L00p0vzzbc80WuQqFF3YtgwZzEDTPR.1ABv3pu4i7Nm9PSrdi0jAH2TuVCrtZUeM8lF5qmQGZEv1dxQJ71TrcC0Cw8A.qZyD1xjUgmtO4I5RRdsMMeCVaSyK4qEn+3qo5rz+iKz22M.V4aOCf+HP8dhUvWuUcgUDcowBLNYgsm1PXl4LOlGbFTMdVtB6I.n51wIjMwFYWTfNtTkMeu5ljWHfzjIiG1RIKyDeZBV3oQdoYk0ygUVJWVQZ91YXG17WUxsbxKIb9ETzvPLHlYETxkjsQyolLqIy5f0Rq0Vei4TJj7JGxvHL7pLgkTHNDx7KTVtmGl0aQlGbgP+YC7DO2nt4aDyyg6Bw6wkIKqKLM22hrOzci+zpdcC8larwZyI6KLyJIlQ.zSVHvVCgIVtrBhqo9TRzNAm+VULzhJFVu95qWei0ZVet8oweU8YzlY07kxE+k4lFPbC77CYYdc0mZcBgdOhQG86Om9bO+fAZeJAhqB2QXFS4Bt62MuWvcCm6K3tG2MBfvQvf.gC8CAMGgZtMYfyQ9djPoTyTBybKgTp6PhF4IW0rjjnBEE6BhBA5t1lwIZJl3AVdRUF7rTMsuivdo+2+IrEBrMA3b6GG1EDLVzXRR2reGLxMjPc1YHVvzjMES9maEXSOCqhaEukm107mwk7Z9akuycM+88fMbozMQXwXL11A2waOv6DhKX4Rw3OPk67INUYSu8887i2qVoczGRhBb52mHo+jKCsUTD54T3hK3PhKwJTvb7uZyGBSmxJftSetbxBiE9VYL29qejJCtzism12e2nrK++q2nryu0G3B7618h+PUvUroFsqT6am9xuI1KoeSzFCr5F3+R9akDM5uFMEfu83qP793yZFYuBkTTF.CY7xtckqpwJn4ksf0urErwksfqcYKXyKaAW+xVvVytf3H570KBsMfHaN3AraxoBwucSvLQgLnCwFhifsuuoKuUO7jGUXI7WrV81pxWRtwWFZJK8ucEUjD506jl.Q3sGZoh24Nzzzr7r0vTKUjcso5Z0S6dw2UncCHfw3m552wxkeN2RqmJza.Qqd0BH8cBgnw2kuuwqT1Nv5zC8wyZE69hnb0jMUdk9U0767EqVpHd6dVjdKsBMHjTMKn0tKOsnicfAstmVcoDLgTLkRoNjRyZqg2uh3+AbUaRjFqU0dn0tPZ8YWNdXnwUX+Jr1oNQGuk6vispfMb5QAynpldMi0VkdMm1uFxGOv00YXHoxyZPu5Csdl4Kz9HsV3eUm9WunJGs2Qqd70ipTihMQ5caDupgdP2YW0za+ywqs3CBXd0kgdU7TXEWal5IUmo9KlH9DDA4w6.lZkTkFMSpRil.2Kx0RPYipZajVpT9xnEGH7e3cngfBSjXOL3MDdjk7GnYB+OBUp00if4NX4BSk2FpOJEoXHvGGBoBT5pZOi152AuYRoMN7WyiPvLOIabUAsHW2iVuFlTgSK1s7YohWv5ztyc3mfroYjbje+9twm1sbMR.XnkmQhF9+IhC5U+q1mnMQEEsep1r5x0Xr6g34xhXeHD5ikG.tJVn9zpIs4Lzr0XZNagmwUh8QPlITUMgAppUtK3iJfXWlUHZcyEbktnjhxX949Qp4eiem5u6wuqf+tghjogGXE7hCMZzPsjqbb7tBk6z6LTqSW+twOiWT0FoOFhap5sgznm9ujj29nG8RFmCYUN8DjVlxFLZROB0B280VwmLxJkSyG59Oqp14T4QZpRWqrk+3xTcrwxmdlQKi2e54VbwSCKVM5kykLgiHK85odBTkn1.DkJBVMOl1XFLMdebel1Gp0TeLN2Ply+YHmWLGBlDqaLertwbw5Fyj0S3coC+sL6SOi3zqJ8TJ3B.CyDIfT1r1M4.iiXCOv3kmDkwGjbjP1AIepjhqEJPpQStvcLx314.3hG4riKLaRINV5jjOwN7TR3rroTmdZ1x86X5Bc8YIa7d+rTLYEfrTNQcfwHbRpAEKJKVRN95STpjPAWnT2TTnjjqrLARVPjjgnwkHYHXxBjLDNQ4QV5lCqhLmRdY4g3opGzKkIEpSS75oecF+jIWFBDNg8HRkK+jKF+LGCEg4fexTxNk9nkRqo.iXQec8oPDFlOBxW+bOMsmm437+7jSXdZtieh9yiJwC0ed4SOW+4V8oGs+mGeP8Y4l8z8+b1w6OsnIGv+LEL6Y7OulU7X9mW9IG77rYN9g8+4zS6ufnPfhwJc1i7eVBx4T+mkjzC9OUhvSM6Y+Gy6YXV4dJ+W3LvzeAuojuB.DanpS32hkN6UAvhV9LWI.Omc99Y4k8VAPJyrWL.RYl2cC.ifm6cQYvXBC7gEV8irNwoODfu1i.+gz4uROV39iB0X1agiEGh72cjsbcSthOBEhF44OmENZoh87CvumFNdoUADKdwyx+ZVOglzaYc5mmiwtZ3yRXN2L7z.9c86Z4BstMACLMoT0no73doEKYlL3mBj2OtJJVL.hzMvSJSZYWEerHex8fWW6XI2uD7OwZjJTUcZEieFPxV.TlONwzloX9wYH+0GAuB6GEf2oQo0BRakUY0xEr9XTWg2aNQQY5vxyk3jMi.z1Ic8M.zjBCLqJrnknEnqWTh1iLe0Ogu3c0SV9yyKswS6Diq9UwIu8QFXAQzRoOsse+6ge3BvYdU70LYLtJGOhbJW7PSfyN3P6BcNosvcknB7QtOILzpO3f6rJ7gKoegDN5XhlWRUqUFhHIEIeH77wVgZcHDOMrore+x7O+CEw9shwe2XP.9fy.dE7tjGJmb6+q8GoMXDNiqgjtN8NGl0KNLhFZOFcb7r5Ra1KJVJoUeco4QPPkfWP6Xt.pg7+xJHGt5pSzpeLMv3Y9yFcKg2YdiXfmMPMnRsKDsS6yCgfmvVmkbEgDSwO6ixyjLCRhFaZVAIJhI5nuluvKftZesd7IqLU0bFk.UhLBUxgq.Oh7JR4DE+IFRJ03Qfwu1PkuCpgwZb3oZC4B7XGWTD2qlSHsxWc0XifhYUm90jvG4+Tvxx+zJkkD9nVELVo14flU3H9ebpkWjlMirnicB4bzOkpv2KE38psKe8GVUXsY.ZA4aHyRmo1gHMS5wYTrWMVKgU0iC1wIfP2CjUPcQNmLM+l3WsDMFUTaLbUR3k6hhwZySUUNcNFSVSNqRD90MImEg4cTk9lpkt1Kghq0bJMzufSLse5k+L266jGKlcMIS0.XEC+PxLyRkbGNWN1.7.7iPiFGEZ+0se7iRsB8i7O3Pn9vNnxCbv6DpOp9Z50zqRSvB+FIH7rzMmMFpIOi3qYaZRFr9fzldqftZVAXXLTGWzuGNIKmDtbkHA2i1vP43K1IKs8AqiZVcBqDSGOljXqdaR+i7OzxtB7GrOEXrgavLz9.sJzxevdZ2QaM1j.oiohMwPAoHao8QKQ5XdwKwXR2zyzeAJoeHNTHKbL5mpn3ZBJGNSFTLhLd7y0NBWXTOv6NjyZ0zEyBLp7eEc2zfKWVaeWGa1Jkk0slvWPHVTKZrwwQ+OdPYi0IdFMWJLeh7ZBWg6nGKwIwhzdA9CzOx2.+Hkw0B3CLB+SJeyqTvVf1Sx0gpjtzrIdOoFgwc33j77z55Dz0kNFXdu0gNHMwQKMDm5Kz6hquZRWZRWtPZLEC1qjfut7ztsg.af7Nu2w.JSrrN0CZL7d5wPv0b3UbR36TjnT7AjZEvhHBdhBMHti1i5Padc92.qEfSNY0TmdyKij9JBn953AbcAcQhSd+XdjyP2q3K+8+Sa91Bp

I have an effects plugin where I use Paint Routines to paint an Arc around the knobs. It works fine except on startup of my VST, where all the ARCs have the value of the last one that I updated before closing it. The code for my PR is below. I have 4 knobs and I call the PR function from the Callback for each knob. I have the knobs in an Array and I pass the appropriate index in the Callbacks.

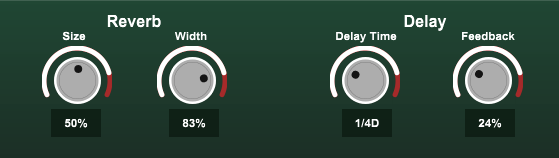

Here are the four knobs on startup where I updated the Width last. Any ideas, I am fairly new to this so I am not sure how to solve this. Thx.

//Size
inline function onknbEffect0Control(component, value)
{
setLblObj(lblSizeVal, 3, "%", value, 1);
pntRoutine.paintKnobs(0);

};
Content.getComponent("knbEffect0").setControlCallback(onknbEffect0Control);

namespace pntRoutine
{
const PanelList = Content.getAllComponents("Canvas");
const KnobList = Content.getAllComponents("knbEffect");

//Paint Routine JSON
const protoPR = {
	"min": -350.0,
	"max": 350.0,
	"middlePosition": 0.0,
	"stepSize": 0.1
};

//Paint Arc around the Knobs
const startArc = -350;
var endArc = Math.abs(startArc);

function degToRad(deg) {
	return deg * (Math.PI / 550);
}

var p = Content.createPath();
var a = PanelList[0].getLocalBounds(2);

var pathData = {};
pathData.Thickness = 5.0;
pathData.StrokeType = "Solid";

inline function paintKnobs(index)
{
	reg n = KnobList[index].getValueNormalized();
	reg v = Math.from0To1(n, protoPR);

	PanelList[index].setPaintRoutine(function(g)
	{
		//Paint Brown circle
		g.setColour(Colours.brown);
		p.addArc(a, degToRad(startArc), degToRad(endArc));
		g.drawPath(p, p.getBounds(1), pathData);

		//Paint White circle
		g.setColour(Colours.white);
		p.clear();
		p.startNewSubPath(0, 0);
		p.addArc(a, degToRad(startArc), degToRad(v));
		g.drawPath(p, p.getBounds(1), pathData);

	});

}

}

@resonant You can also look at the Math.from0To1 function. It takes a normalized value and sets it to the actual value of the module. You have to set the min and max values using JSON in your script. Maybe that would help. It worked for me.
