Flex Envelope - No UI control for Hold

Christoph Hart

@Straticah Yes I think the main issue is that weird distinction between horizontal and vertical adjustment (which is hinted by the mouse cursor change). If I change that to allow changing both dimensions at once, then you just need to slap a rectangle at the corner points and voila you have your UX, right?

Straticah

@Christoph-Hart exactly

Oli Ullmann

@Christoph-Hart
FYI
obj.active does not work. It is always 0.

HISEnberg

Just to add to this, laf.registerFunction("drawFlexAhdsText", function(g, obj) doesn't seem to work either....

d.healey

@HISEnberg said in Flex Envelope - No UI control for Hold:

drawFlexAhdsText

You're missing an r

Christoph Hart

Alright, I've pushed a change that allows to switch the UX to the proposed method. There's now a UseOneDimensionDrag property in the floating tile - the default is still true so it keeps the old behaviour unless you change that.

Once this is set to false you can drag in both directions to change the length and level simultaneously.

obj.active does not work. It is always 0.

Nope, works here, but it is true whenever the segment is currently played by the last active voice, not if you hover over it or anything else.

That's the snippet from the snippet browser with a colour change for the active segment:

HiseSnippet 2633.3oc2ZsDiajTFtclzgXuIQIKvlMvkRVfvCZvqsmIOgUSOOrSFXd3LdxiUQQ6VS2kcWLsqpoeLO1nHEIj35dlaHtwMtv8vANvMNwsUJbiKH16HwveUU2tqdFOy3wjPxh0Fkz+0+eUe++0+qppsc.2lDFxCLJTZi87IFEtfYm8XQtK3hoLikVznv6Y1xir6FjvnFFyumONLj3XTnvD2UvPghm0P96qlcdrGlYSxHYX7PN0lrLsOMJiZaqeF0yqE1grAsuF2yXsjMms.2iGCfYByZF9X6sv8HqhErcFSi6gCcMJ7CMuwsu8M6dSR8ZNXmYpSZLciaQt4L2pqS8aLyz2t1zWeSbsMm1FaT3bMcnQ7fNQ3HRnQgyNO2YuNt7cXpE3gzP5ldDwG0M5.qrhbKtmiPEETMVvk54zN0JEZXTvrclMaBkM6aYtB0gNfdls6xxAPYRna.Kbl7vahbvqtN7poAug.oBZP5rJHcEyN1AT+nrQT6kKwhHAcwv9jNTT7Zbl+cQyE3.Grnp8waQZE.eLPhJ2nVsoPyTq1j+3RkXvtRHrCQPBui4t2hcV+dXliGInzyJUpDrUFFg1FGf7vcQeLJcVsCHfxtL2F6sLmu0bLmVDhWEwL9QeDZCWRHAgCf+34gVdtVntwL6HJmgvaiodXvbf5xCPQtveCqKhv1l3w8IkfkoZ.oGMD.aqDgpT1I.uiDetNgAyC9S8B3wLmxSMXhqzaJDeye9j.pK1qZWv0bNOuJ01sUqFxe.xdt.civ72J1yqMNx8Hm8PRjx+th5uBqtiKMh.SOLnXpDRWA3upO7OjRJ+WyAFsoP0qV6T.lEhC1lzlSYQi.bDpasqeqF2dFEVDlglddT+PRkmHPg8fY6I0dJ5GccE1znVGnh.x0qI9ySOE.sCoWexHgRwRhAN1lflEkZACHNn6L3qM8hIYpvALmqSrivrddD0LAF0IEhGaSbpTu1jmBL2lGREjGuc5CYc8Elv0XB3JMuSmr0qQVZeA52.9uAV2zfpdhUquOmAeTo7f3w6Ff8cKOo.LGJfCTxjXtU46f1gfXDvPFwQPfKCrSxHLPm60SFy4PC88v6IXH12AhfkiuEiuYHBBNEyifPnLMBk0C8fkphVhg3ANj.gTNbTHGVme.DWGKhwQaFvwN1XgUFjEGIlC.G3nHrsqPDQJfLD3iCfLN.ygHHMyAQAjoA14CQ63RXBh6IlMQdDaWXGm3TUOizBqsR60Vs4pazARLAaWyIVxstCpHBMbKphgxSNUoh2CpM.bdjrJFWx3hDa7dGGmRFjr1INLBJXbL.HgCI2qS7H3PxwvcBGYvPlK3NniEIRdjhnz1TYNNKRlLIKYhPGKrN3BsLAxfeBKjjmxSV544bY2LFpCJcA7ffUDuqtSB3.IJugfPHtjGM+MMeg1ys9bqzbilqK7EdxSg4GJuTwGDSyMYxREy3qpebnaE+jnmHWJrFgGyJHbgmWyW+iQMY8nLRRoPsgp.9hTv6prnx1h4EqLXuvA8BuC5InxTQArxCTVwGR++xOUkWP36qBinQnD0uO2INeXDXuNbYzCf1pp4YC9JRwamJMjkY4lOFV3L6B.BgvHWUW.kE45jHIezpc5daZHKj9X.nRBWqhdDIc2SJzOsyZqJSx.oEEIm1gF4dfYKfzkDPf9Og7CgpskDlE8KfQjciBvPVNbDJD5uEuawCqqNNKKx5y.8KayGzqD3+fkTY7zy5SclB4OkRWj49Eq7S7epHo6CEDqnFRkwtXomC8FUZPSMb1p7HxZrJRQgAQGbntcG5Xhfk.tGXmG5vhNqCNNAqvh6uIIPG3BFgtGy2Rp4Q2RpdGy1pXWMF4rkXzn07IripOZij.dn80hInBXMR175kRZdsiGEpeXPgdTOuoJUfgDwIGa3kc9s+RKiQP5yYJRLmS1W829B9HI62vTlfLmvV+jM+cijvEMSR6kSbiK1+OMRheQSsDf4lheyef+2mczPPR0i7Jv+369Wm8zf.YZ6bSwm83+0nMEWvLqBS9sflW8KGoY3Rl5EOxaJk+dvRKhivhSBk3UAdZ9jfHpvItvhjsgygpNWTQ.LgaEw8gC7NnNCfwnjCxoV6VdbrnOlMnfyt.AW1LeaUF6NX8egk0dYfop0l8RODawyAD1WPE58qeF082e+uSdpMRH+BA4HHWUtoP9aGpSj6f0w5EVtDZO2rCV+hsrRzckhdHDKsPE9UlOqDBUdPj3RNkgJNpr4hAVh4P1EHUS9EbTXO9NOhGrk7rd.8tXuPhbrrSXrAGRDIN6OLdiZUUh9fPHwFYQHSDKDx8HpmkJdomKh9GX6KcxA86peOAYV6OquUeb1XK+kV8oNP0mz9yyLWegkelFKxGHzXiAEdVRewfRkDAKx6mvgzEG6oxkmAhumktBT7jx6nAeGM3a85D9IKUNvOZV4zDbYH4kAiCJM9jSFkoq0IaiALLZvOKEqVL4ydSYlyVsWipP9z7ZpwC0SsDbxnK+DoP3GXtJOnO1i94Dm1j.a.K3dDiv3tco6JpN+8MNpMzWM6vc++pYG0slzZOY5DZmSoNkMIuwzmWM6oaeRUF5HRJ8h3QeeRMQu00qbUnOhz.ihZkaddqqUGnqgiH6vnnWGXldSpYG9lburo7vW3n7Wrr352SFPL252lq3FaghtQ6oGw9Z61lGUHdEy1zHa2giwyLDLBsu8l.iI2Q+EMa1sKbdvL.dVyVO9MyExqu7WUs7um4ivaSjOshbw+1xugyl1GcWwINE1t5Gy6q7WF02Wwejeek0ri.HrAz4VnOOjTWel6P5S2.hvByQ8.RzXnRji5hjnX1fo1Z5o+luTQJGWBSQKvTnsXm2JkXCchswLMl9jWBe2PuAjUn6pGN0jIt7vNDPycVKzFLLB6rdXQ6XngzGI5stttfYjanS9d3.GXOzNmS6DG2qLUeLekoy8N2qL80fTS4dHrhoXrCsuuGoYxUbIw36CEpjIfSolOzaENi66xYzbazqShBn85Qx4+LTEJ4fD4jU0zXJo6+6sVlxH3fUj0RFKaQ8S8iBNz8qOLoWDjHeA5qukTl3+qKoLLW622rM2aOkiZKpGzrhDDEMUebbkSLLZEP9EwDlcp0x5eZccq6md6R+5O+BV4cM+Pq6GCM6Lv5ht109y+w4o9bObv+sdGmfm7YGQ2iOvbfR8tterX23caLdMyjMWjvnhd6mO+JoMRM3dsj3Loe8wL8chNdjpRtL4xqaVdKKZWgr59LztV3zSqpcQqGH6u31eOXde8ysqcCu5GST6ZW0Nlk1Uol6PJiWNv5uV7ctj48e214VzwztuaCwqZBMr1.IK3gd6Twacdr3RvWACANPa0lqF2uCb5AaBfRFi3IdfnBmQ7TNpuqI9VcV.li7i8geICVW7cgjAqmN3+SVi9X6.9mZqdmAQZkyKo.5MS9+aYEMWQ7Mp9geYA3D7zO01N+TcHAaLtBN83J3LiqfWebE7Fiqf2bbE7Vmrfhy8LWbDuuJ1vvXk1MUuyQA0Q+jgIF+G7K2E1.

Oli Ullmann

@Christoph-Hart
Got it, thanks! :-)

HISEnberg

@Christoph-Hart Nice this feels much better, thank you for prioritizing it!

My only immediate comment would be to add a small amount of padding on the borders. It's quite difficult to drag one of the points (for example the release) when it is close to the edges. Not really a big deal, probably there is a way to get around in HISE script as well.

HISEnberg

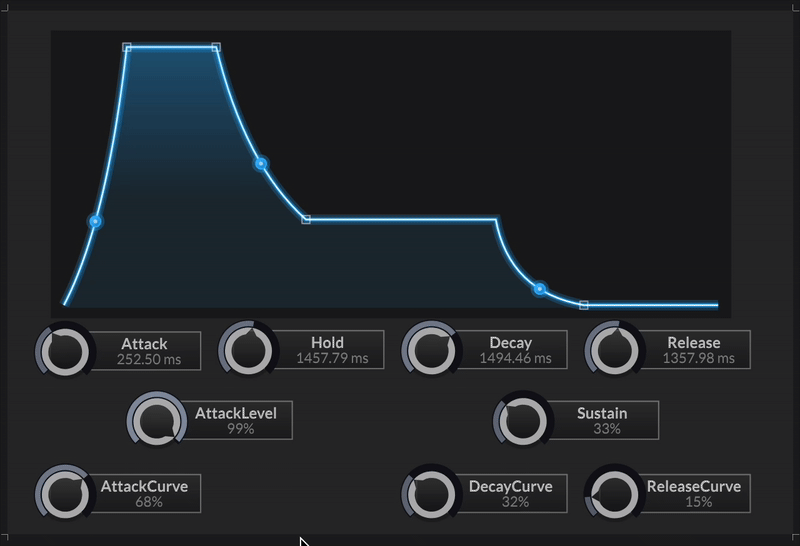

Here is a LAF I was working on for anyone who is interested. It would be nice to be able change the square handles for controlling the lengths, but otherwise this new FLEX Envelope is quite sexy.

HiseSnippet 3363.3oc2arriabbbnjFEy0OfsShkSN0fHFgxZEEI2m1BFh6KJsN6CJwUR1XAgbuyzjryNbZlYFpcWKH.cJWctjDja4CHGxmfAxgjiw.9ZB7kb1F4GPoptmG8vkuVFoH4PIsKmpqp5pptd0cOplmvh46K7LxLydmzkYj40LqehaP60ZS4tFattQlrlUcXGuEsowpmzk56yrMxj472DGNS1KXH+7c2XUpC00hk.xv3dBtEaKdGdPBzZU9EbGmpTa1d7NZXOekMsDtqIbD8.Q47lEM5RsNj1hsCEQ6blF2h521Hy6aVjcvA1MOXtOfUtToxevBEWXoCJCfliYQK2bo4KUboEVp7G.B4E2vlGH7pGPCX9FYtvpB6Sp2VbjqZBtG2mefCCenjQcXlUfqJbrQUDgZrVaticsHajugQFyZIVryqrX+Hys417X3IVt2TN.IgBcCXlykV7NeJwqjt3UTS7FfHkQSjtfRjdKy5Vd7tAIifxyqZtoa.yqIEVmzEEEtFm6OcIy0D.FtAE5POjU0CdHlh7KVr3rj4KV7xWelYf0J+.xCodjlAO.cOHeDIhzVrf0Dc5JbgGxmKb7b.UID4Pa9flooxxiA1gsDVTmsDhCWw0tJi4jGmLWvEvGbGXDjSqbq0qemaQcscXdy7nryj8ZWirJ3qzxSzy0lbDOnMokG2dlrQyRAOVKtOnFU64ZEvEt4yY6QORxr119dITmaVRyHbZMKQbvu7xyj8Qyjk.eZUvmEbSOpMGD2pfSb98Kdb0pkn3elkTT82zP.FTfBJ19y0.3L0wm0.TnP10D3wcXVA4ivBG5w3Oj5TMJnHGcMxbj5AdhCY9DPmAMSI.Dj5IWEq1ywAY3nUvC.l3tE8DlW9.udrHQUS+UAn4Kd7bvmUVoZ0D0AmObJjpSW3KJ0G+1JfxMKY4BEGEGWXgyLGmezbrZ0yLGKOJNp9kegiZyCXmAlV5zLk4ZqrywCf+.W1uY5EXDrLLCxXBYJ7BfPFctueoFjqjFxbMHuOoXgEuNYDNtKTTYaRKq6Wrwr8y9YCYy.9T73hEaJ+L.1DKwC1yeDVrzwAq0y6gLRWAGrIskg89jI2wWRcMj3Q45iVX4LTm+4LvBu70Sf2l5zLDbBJWiTtuUzgD6j1ib9462iDMEa33v65yxuOZDrhEXvJRtZxzeUxbJyjFFkNMFCbwJQvuBYwYS+n15xo8JGUluEWb0UibfFlTOZId1Q3YA4QWYoUVasAw+qLR9qOJtTzXJr1iQtSrfZeswYOWzyOYAx5jVbPWYtqKyKzWdtq2G7aALDfmfShOdZUY4kqJ+bFLqwSvf0Esgimdsu1HcBgMcs4Oja2i5P7Ys5f4J8.OWlG2skp7OEhxgbF9XmU.ar4VTLrexyZTWw2wkxviY2yhYi4r.K29wU6ktnKqU9uT+.JipcoES0gfDRiTKZ7lDU2ARE5xJfOJIpYzYWFZxVM4VG2gw2kVZP7c.k8z3apRoOV8KFTEXLpPoEldU3wo5dR3yw0snkegGjLnM2mzEqgB+dkMmb2gHlMN+gNTuCiCvJM+fKhngTRDlr.TOv9bZjtBYaPiK3ycyugKTiggMXe2tAv1mxeYnR+x3ONEeBilS3Y+Ur.azt8.UlzxQbDzPNj1eJKkgrZUmdLImFZJAYpoccwkQUNgDw7pj4Ca.PCmRC.mAWaKVEkgXodb701.YeaX6ZI8UyTB8DW46T5U5z1mRkN6095aFtxnmgyR0uoV107O0+diSYak9EhdANfe6TVV7YtPhMjuvojz6iM0SrDdLRadq1Nv+BRhoP3CnvIBNLRKFigU1rZ0wV17TpZD+GhplLbzrm7s9JZtE8.1YX+h6wNd7MLSsswRteDobQMaR.P5fqH1W0uhEwHbES5uVYL3R3gNLWwFWmLgejBR7pJpGZKFUE3QRrhGm5.ZWoxW95StS4JfKgKyF4nrNDpmyFqsyRx4gtL4zL6gG8Ax6SctFQKDwKP6.YgOhQbYLaRf.VFgterBfZVLBL6sZQOvA9F2uKjpFQnWWar6Fb7CcEG3SfZcRFgP7kGnCt3b2MK.MLQDdP+QHY1Bhu.lnetiComOiPIG3In1VTzY.nkFHYBHIzf.pUajFJfahL.EPocX.1pCjnO4.bAfPdexQsYtHvSjrCVXIVvl2ZwrKf5axIAs1taWa2c1Xm8pC9KfyU1Uvo8vOj.V9AefRJDxcYHAZ1aIbrATGJt33JLWmYQOYTnJQPga8dPmib2QHCgXnP+NLGF0mMBzCwPSRjaK8CIiTXj3nnQoyQDMJ6hFQgyZHUiTxN0TsE6gLmwLURbxA4Ddbe9vGzi6XK8HbfbLDQSceFveBO3QnuL3aHNZ9e5NF0V4Nqr8F6swcPGi8anBnDd46BTp40.Se1DTKzsme67ciCpjc7A+cDyC5XupVHvGQB6xRcfjZCkGcO4f+VNLvc8zzkCscTuV9eHYeRNNdRh4h0Z7AYbQtF54jCiv3AjPSQGgcuzQXfsCGPdVoLWvdK5B0Q6SlKnXzdhskzWKh774pt0FeBL4IFHPPPhCOHEOY1pPgIcrrUzpcT.MjdIVtBikKPtOKZwTRzGWe2cTIgfDjX1K4twRyNOVSFrcMK77L8UKPgHCqtP5HHepGERCRCH9m3FPON6.zWa6svpWv9Cym3J.5VnBb2MU4D0qfwsgdCmUoMp5XYwIe+tMv7y2CAmWMXbB7GOC7IhAfAXGQ.aW27WdlGIGjz+PMaNvwvXHOgiC164.FFuGDuQQXd2dcNf4EK6gHZj4Bou.AygeAB52ugkJjVCQg6lt7fc6xbG1sdXDlGvvHS1PoBPMPdUCuQ3UMT2gC0XL31FYdESUFBCoDGdIO+w+4WHpXLATeQSLscJZqb0+5uahn8GXJSclhXxW+o+9Ih3rlgoCSS92szuchH+0M0xKlhEO4i+Me6MlLIHrxRJx+rr+6u9FmEIPlNOMKB9p+0DwhWyLo1SZNboFSlP7Fl5EURwCi26u8Wtgwc2bcZ.Eu2pPuJvSqKyKfiNwYVm8PtEScKVYAgw+v.QWiLyDW9AjwfvqcSM2UcDTrWm83fytxJF14kwwwWv3SpT4jjaarPkCZEcWiYuH.3oHTXC.cRf9zm9zeZZnkCA+DDL13WJVH+bD2Nnc77T4IUZyvtBSDiCqDpzJM7MMiuRKXalcaaHMMY90lOZFBIWbH3l14fxNpr43.a5ZyNF.UT9TUH4h3n6K7NTdKY.b4AtKGK47u2S.YfvqnEFubwBJRuqOjQisNjBx0GR5fE0hHelGig8wF8YFez9w5Wmah09y5ToCMYrs9GU5vsgpOQmpRh45KpzMQiwDAnFaDW1YS8ICpUxPTjWirMqIsmiJKdhP7ypnq.YGWBGMw2VS7q7rT7CmpTB+jYkixrkHIeo2zHkFe53kxn4Z71XPFlLwOI2pVL4iddYlSlsmgpP576Zpw8zSs3MdoKMiTR36XtivqC0A14tcMlmEHKzVLC+dMaxOFKK+dFCaA8atwfc++taLoKMQEcRzIxQmQcJgIO2zmu4Fms0IU8mgjT5I8l70IEidgqWoJMOjz.ShZkhOuv0p9ZWXHYGlD8pON87TyN8KbyaZJ27EdQC5u+O3aIU3.Hu0eoavWrFnnavI5QrOydoflTQ7sLqwCrZOXY7bCPFg91ddHiguJUut4FMaBaFLQ.ufY0O44y6Mk9zeI0z+pl2m9Pl78eSN4+X4yvFS6PtItaSz1UZDuFb+8I80fq6D+ZvsqU.HB6Act42U3yJoy45rN78fHL+TP6ihxCjhTPWmEzyMl0Ulate3Wp.kBKzTTELEZS1qTIBXYcf0ntZH8oeI7bY8FP1lerd3zFt3AKVmAZt8t9VfgAsy5gE0vK049Xu0kzILAbYcv2h5YCqgVobZO+ndY.KMkuLfW7ktWFvuGjZJ06qX1HYrNuSWG1FgmwkTFeanPkLAbDzzgdaKbEcaKb4oVnuCKvi2pEKk+y.UnvMRjhVUSiQft8etxVbWF0aaYsjoxVT5L+taNv0q2MrWDBluf782RJm++qKoLHW621rlv4DkiZUtCzrRzaUs7gQUNwvnpG6W0i4ZEYsp7sUVnxsiNQs+vm+ZUR6Z9tUtcOnYmzV2U4cENTu+a8NFim7ElP2i2wLVodY2OFWMd4VF+IlgKtDznRdwmO+shZjJ9bsjxYX+5SY56PcbnpRpL4xyYVdJKZmcr57LzNO3ncqpcBqoy9KO129y6quucsi1UeahZm2p11rzNC0TaRQ6bQelEINo9Nug4se414F6X53WtEwKYBMrVlHK3QdwTw6Nhd3oeuMEBbf1pM2oWm5vtGrXfT55xbvaFJy4v6vQ8bQ7Y0dAbskO7T3S3fkvmyDNXonA+exbzgZ4Idfk5BFvzJuhDBn2tx+K.k0ba7YRozWo.9A1AO+AVVoY0oHr7zR3bSKgyOsDtvzR3hSKgKMsDt73ID22yJ8BDcTwFFFaWaC08bjQs0OYXhw+APh6k1o

const var ft_Flex = Content.getComponent("ft_Flex");
const var laf_flex = Content.createLocalLookAndFeel();

	// Background
	laf_flex.registerFunction("drawFlexAhdsrBackground", function(g, obj)
	{
	    g.setGradientFill([0xFF1a1a1a, 0, 0, 0xFF1a1a1a, 0, obj.area[3], false]);
	    g.fillRect(obj.area);
	});

	// Path w/ 3 Strokes and gradient fill
	laf_flex.registerFunction("drawFlexAhdsrFullPath", function(g, obj)
	{
	    g.beginLayer(true);

	    g.setColour(0x3333AAFF);
	    g.drawPath(obj.path, obj.pathArea, 8.0);

	    g.setColour(0x5533AAFF);
	    g.drawPath(obj.path, obj.pathArea, 4.0);

	    g.setColour(0xFF33AAFF);
	    g.drawPath(obj.path, obj.pathArea, 2.0);

	    g.setColour(Colours.white);
	    g.drawPath(obj.path, obj.pathArea, 1.0);

	    g.endLayer();

    	// Gradient fill
	    var fadeStart = obj.pathArea[1] + obj.pathArea[3] * 0.6;
	    g.setGradientFill([0x5033AAFF, obj.pathArea[0], obj.pathArea[1],
	                       0x00ffffff, obj.pathArea[0], fadeStart, false]);
	    g.fillPath(obj.path, obj.pathArea);
	});

	// Curve point handles
	laf_flex.registerFunction("drawFlexAhdsrCurvePoint", function(g, obj)
	{
	    var pointSize = 8;
	    var halfSize = pointSize / 2;

	    g.beginLayer(true);
	    g.setColour(0x4433AAFF);
	    g.fillEllipse([obj.curvePoint[0] - halfSize - 3, obj.curvePoint[1] - halfSize - 3,
	                   pointSize + 6, pointSize + 6]);
	    g.endLayer();

	    g.setGradientFill([0xFF66BBFF, obj.curvePoint[0] - halfSize, obj.curvePoint[1] - halfSize,
	                       0xFF1A7ACC, obj.curvePoint[0] + halfSize, obj.curvePoint[1] + halfSize, true]);
	    g.fillEllipse([obj.curvePoint[0] - halfSize, obj.curvePoint[1] - halfSize, pointSize, pointSize]);

	    g.setColour(0xFF33AAFF);
	    g.drawEllipse([obj.curvePoint[0] - halfSize, obj.curvePoint[1] - halfSize, pointSize, pointSize], 1);

	    var innerSize = 3;
	    var innerHalf = innerSize / 2;
	    g.setColour(0x88FFFFFF);
	    g.fillEllipse([obj.curvePoint[0] - innerHalf, obj.curvePoint[1] - innerHalf, innerSize, innerSize]);
	});

	// Individual segment rendering with active state indication
	laf_flex.registerFunction("drawFlexAhdsrSegment", function(g, obj)
	{
	    var reducedArea = [obj.area[0] + 8, obj.area[1] + 8, obj.area[2] - 16, obj.area[3] - 16];

	    if (obj.active)
	    {
	        g.setColour(0x4433AAFF);
	        g.fillPath(obj.path, reducedArea);

	        g.setColour(0x7733AAFF);
	        g.drawPath(obj.path, reducedArea, 2.0);
	    }
	    else
	    {
	        g.setColour(0x1533AAFF);
	        g.fillPath(obj.path, reducedArea);
	    }
	});

	// Position indicator, this part is AI
	laf_flex.registerFunction("drawFlexAhdsrPosition", function(g, obj)
	{
	    var markerSize = 14;
	    var halfSize = markerSize / 2;
	    var pulseSize = markerSize + Math.sin(Engine.getUptime() * 8) * 2;
	    var pulseHalf = pulseSize / 2;

	    // Outer glow layer
	    g.beginLayer(true);
	    g.setColour(0x4433AAFF); // Blue glow
	    g.fillEllipse([obj.pointOnPath[0] - pulseHalf - 4, obj.pointOnPath[1] - pulseHalf - 4,
	                   pulseSize + 8, pulseSize + 8]);
	    g.endLayer();

	    // Main gradient ellipse
	    g.setGradientFill([0xFF66BBFF, obj.pointOnPath[0] - halfSize, obj.pointOnPath[1] - halfSize,
	                       0xFF1A7ACC, obj.pointOnPath[0] + halfSize, obj.pointOnPath[1] + halfSize, true]);
	    g.fillEllipse([obj.pointOnPath[0] - halfSize, obj.pointOnPath[1] - halfSize, markerSize, markerSize]);

	    // Blue outline
	    g.setColour(0xFF33AAFF);
	    g.drawEllipse([obj.pointOnPath[0] - halfSize, obj.pointOnPath[1] - halfSize, markerSize, markerSize], 1.5);

	    // White core highlight
	    var coreSize = 3;
	    var coreHalf = coreSize / 2;
	    g.setColour(0xFFFFFFFF);
	    g.fillEllipse([obj.pointOnPath[0] - coreHalf, obj.pointOnPath[1] - coreHalf, coreSize, coreSize]);
	});

	// Label
	laf_flex.registerFunction("drawFlexAhdsrText", function(g, obj)
	{
	    var padding = 20;
	    var textArea = [obj.area[0] + obj.area[2] - 100 - padding, obj.area[1] + padding, 100, 30];

	    // Text
	    g.setFont("Arial", 12);
	    g.setColour(0xFF33AAFF);
	    g.drawAlignedText(obj.text, textArea, "right");
	});

	ft_Flex.setLocalLookAndFeel(laf_flex);

d.healey

The thing about the flex envelope in Kontakt that makes it a flex envelope, is that you can add a flexible number of points to it and adjust them. You can't do this with the HISE "flex envelope" which is really just an AHDSR with a nice UX.

Peek 2025-08-22 20-54.gif

I'd really like it if the flex envelope at least allowed us to define custom shapes for the sustain section. Or if the table envelope could loop its sustain part which would achieve the same thing.

Lindon

@d-healey also called a.multisegment or mseg envelope...
