@MikeB
Greg, 43, France, aeronautic engineer around the world, recently reconverted to a sound engineer, reconverting to a plug-in developer…


https://youtu.be/369Ii4_QQpI

ZERO PADDING TOOL

A Zero Padding Tool made with Hise to quickly make all your samples the same length.
Having the same length is necessary when you want to merge samples, like for instance in a multimic situation.

---

ADD FILES

• FILE => Add as many files as you need
• DIR => Multiple directories can be added to the list (adding a new directory does not delete previously added files). Doublons won't be added (doublons are checked from their names AND their audio properties)

APPLY PADDING

• TO SELECTED => Find the longest sample in the selected files and apply a zero padding to the other
• TO ALL => Find the longest file in the whole list and add zero padding to all files but this one
• BY TOKEN => Find the longest file within each token and apply zero padding to the files having the same token. Bear in mind that if you add different folders that have the same token in their name, the same length will be added to all the directories.
  The token number starts at #1

EXPORT
Padded files can be exported following 3 modes:

• No Options => By default, the padded files will be saved as a copy within the same directory as the original files. The suffix [tokenSeparator]zp will be added to their names.
• Overwrite => As the name says
• Sub Directory => A directory called _padded will be added with a copy of the padded files in it. The suffix [tokenSeparator]zp will be added to their names.

---

The project:
> Zero Padding Tool on GitHub <

---

DISCLAIMER
Loading a big amount of files might run into a time-out issue. I am currently trying to send the heavy tasks to a background thread like I always do. Although, I am still getting a time-out issue with this one. Work under progress...

---

EDIT:

• By Token now respects the folder hierarchy (so a full library can be treated at once)
• Fix undo
• Add individual undo
• Better LAF and general looking
• Repaint instead of rebuild the list when unnecessary

Yeah... My tooth hurts... I went to the dentist yesterday for an extraction...
You might say, "well, why should I care about your tooth?" Nothing, you'd be right and I can't complain about this...

But here's what you gain from it as I couldn't sleep last night !

BOULDER D'HISE

HiseSnippet 5502.3oc67jzjiacdr0LzRcasXWYw4HloRr6QXZLff6t0DM.DjDfjfaf6p5REHviff.D.D.b0dpxUpJGxwbOoJ+iHGxQ8Sv+DbtlbImxsTIOrPRP1rU2ZJY4YrGJMh7889deuu229aYTcKCQfssgUjyNu0ZSPjy93n7q0cFmarfhdDV5Hm8ShRYLWSBX80z+BFEaPDp0lB11.oHmc1iJ5h0Ym+3HQh7aV+W769RJAMAcQP.HuOcLTDAUTlp3rGZ8WUVQSqffDnkxzPXm3UrhF54LzLlC4nGEEOhofnpfLnpfKZePzHm8ixKo3XXw6H3.rib1ioLjVyO1XotO9cTrUFpAbaDKBOjP9fKX.WAR9PijarhlT8sqb6HQN6CquWN7He4veYTNEIkcvCKOb6.Y+HBKON6CNj8dzArWrvrGdH16DrzYgXoG6yR+zn7hVJlN66wke9wQY0c.ViDDOT03iajO3+4WDMmADCcGroBpfBVvF6FwkYvweNRJb7mc8EPrrMz.XhZ.AqKg.t.pKrcPVHXgrTPSEZAXuPF4kHaImnE.tJ46T7xmFKc7LX5sRUNStXFUZMhCSuK+nUiXwnMHKZ0dhXRxTSjqmmjH83jckSNIEQUt5wzrDVIkBXNdYZhknnDs4VzjhjoDlB0HolBDZ8WPUvbSbJlIijwvIMZLdEEoiPMlbbXEaO.SlkprFSBpVi2zqopZw5LKywPUOGcyM5MyUZPqkx4qtn23bkppMjjmtZSNmQqxUtebFJd5VzMx0TKMSNiBczGhsjhqtt.oMyRr9w0opDeA05BNXKoarFEUUlKMFk7BFc59xI5oqSkOlHGGWqlsGIWdPEVRtZZLKWUoWmdCvnFLnZpNMWPOZwJxwKHGLPiwnNO+RqJxTcFQNYQtNRiHUySmdTIZY1gKHMGXLtP4ISpTp8X3JpyhFEpNtE4DllVUVw.8WJ5n2LeEqzKnTYZ1rTu9imThsHeuDjEp2ynDIVCrI5XUjDkKMXD63hMLGQwZvTsSu5wfqAZ1106ONWkNi5srPILZxdIs.bNclg2peFyVYJrNdacbF6TElWdITrTwLNkTpdaZOHYCVElzC0TpHQvxmUt3lNV0br0SkJ8BMvFtDwVmpOWAUloS2TsVF8x0lmHwzrhraRiuHeYQdmkkWFSdnHZaaQFzNEUiY1GUPtP14CxHVSZZ53zhEw6UaF8.CoXor.CFnNjGHrb.WK.63ZCrSktIWEd5A0TZaUmGcVSaUhNSkAcsjGtowP7NDpBYTZmzVCEKFZhkckjlw1IQ4koSXk2VRwfOQlEIDkDZ3Lq.JmTx05C5STQKQ65NTMUioUsTJhFV8rq01rVl1DBNSi2pO5hTUMrwyATAsRx4vINai.SKwJhom0JesAiYpRjopwjknUE.NsFjURublrcXbvc5jTK95jhKZZi1Dnxro7lpRyxLKS5jbSPSJwjYh9zoNyWKKIsTYf3XKiRSYq1fvXI5jtla3UE6ZXuZ37rIrVLIU+NI6XqRhgw5ZyTfgZgRAlI5xF4lsrXUzZS6MO1fNPodVQZpDkMzVWjZ95N.xk1zDovHEqugWRWpdVRUFIBS8N0GjpqJ2bgznqU1TNCJnnCj+nS0eIaLcg4ymUMy3tnVfNVxYoaazYVIiAZ4StQasHHUJbwzaFWLYxx0RGWZNOUybI30Hh0vZV1pwaCZBRSzsVkAsy1uff5Tl1aDaRvZjH0z05owMa2lcSq48TapMcUoNIIqUffWnf0F4Mq5zvdJVNxrULkUxUtsBFFzLsEMcc3O5Uud41kqwHwjncMYLLR1Mn.LBRGp5szrzK2LSxVMWM1Zi.+frUR2Cs3HNlYYLmzsa2UC5HtpOYKKVlDN8h2hc0xkEXTswkTKGaD6n7wPIRtd1zIUf9r8IF0ypbJzbIVrhaDbZWVhazLbYEVrNElmnYxtJxK5KsIuxF8Zcox1eS6Nom2JSFN8I4jJHR1M4L8tUkKAhOH9ZEUpp7aDRz.rNQpNKFkAFMi0gAqCZmpSUqTKclNpYcFYmJewRX5nMFg1ppQlBLbIoRDqZMtBi6laL6jMxclf1mCzYfS5t0LrHq2dJ2vAK1zpqrS8N8aRT2b4fryf9XMVnWtkn7ZYl3UqwJzd0Jwd8XKZVSEsTW3xWYN1HJhdS03.o6xLMe1V5apVRLUt0CiOtSwkKHoLWQMmaPmLyxaHr1b07A1ynZ1FPMTOdqrRJJovKMYcMt98lwwqwUfsBdipwEFjRwd3P.YkUJUrlzsNpDppDZR4YcJmcXyU8pWJlvL9U44x2fbxnQUs5SVW0YcI1zSlkpaqjqlnOIFYyp4GTcxltf4sUxoMoe0DLTDMYJI0e0hRD0VmhUPflqLsfxD8EKWwLn.aJKlY3UxaUoCT4zlanTlA4LsLwGuLdrZb4sDvWWfxN97JJsUS0ICun15V5Lk4ynOebhFJM3kK2XZ0RcQigQNpvD8V3DXy6ms4p7VqRYNQnPQ8EYKjuQ9jUvVJ2aBSCXbh9qMpTzPpmYxgXVxSFVNYlg5Z.5U8cxQiQ2QqLN6z0KJzIKkZIYzAswTYa0L+D5YDYYhmtRKamkMJrHeOTL4dryW12NY705MsRaqCVTogFFdBMFcvPm7kZK1lfISxxnZBKZS2vY.P1tWxTckRSHa4PgSEe.8bSoFbylQaVikjpiT9gVoLL6LesRtdCKjPdNmR6RbIRQmokR6lLipkTqI6zTIIb3kqldSwRD4y3fKWaMQ0VsYbVlO+vgzpbBkxqZBFlr8ztjYRzaND0F0vxHRK1.qLIoMuPSHmTpXcAghMZrzBjhhwLQsgk6WtmVVT8r8piy2ZU5pE6VXlhp7z18WpqMc8RVIiLTFr3ELJNOESK3J2b55dREmIPzOSL1lylpUbHQYJqoqqHaON4zozySAhkcIZktkxpZpp.XlN.PTueEiRs6MkVcgyFL03MHsE2TbfvZExkfrJC0GWHttyZhNKIF0PncgLSSgyOcdLsXNr8MwMQmkfZy347aRrVJeojfbx7axYvlNl8BZzQzEFoalNsorsBCEc4JqR0No1RrA5jF0ILGoNhRellZt9E4qfNn2zRDCvK0qRllqX0y8TXET6KfZjErB1P0NICbxYL0zPG13xm506SOrjq10QfedIRp3DwIBSJ5Zcqtsi3g6nR9Bs11QhvczjsHSqfNRBmDKfLhjhEPzQwPGBettDXjhNP5.FHOW8V88XgXgIFeM1J9b1AbEUs1Uny2DB9.dh1srnpzPvGvQcIqDPjjGAtLjFtr5ArR.w+55MqQQRwVgExXuDAGK1wz7.L7n+oFJJbn3YNAadzDbKJ5MvjGvZsXqj+q4YGj2cIhGll89ZNxdPndJWWEdWEImwW9rWraHgwt+wXy.TjG6bH5gqH2vRSBh+Wcy02pN8bFFVd8g+b7atF4Eu.wxX4KDMz7U81hFVt1hPt0so9PZEgoF5R6AY6HX4.a5XMG3CYomgxHAM6..ZF1NGBYn+1DYDrKHnoANBeeNiUmVPWFXsuO3G+krMvoNbOVNMMl6.sEubzbcO6yKke1E+pKNWFaHPVQuhvZf0kdi00c47QFVHWp7R7qQT9BOQBFblkcFCaih9rKNGNRebl3hyDeb9Jka1g1DOz7v6b6kJNhiQtbKRe0jab6yuyyEErA9V++RDH6X65A6tQ0KwWUnPpDD96h57fOxXifkr2D5ic4WMA4yCYmfhD64HJ2Fz9lWgPbTyaBQ4gvscotu4ddaqK3IXOhrt+ysXu7ZZJl1fuu4vim8LoxWfL0AHHYIr76yY+4HDGy.ELbCsVa0ZYf9SeNRr3X32hEH0Tjgw8ZAVAQkgkOODwueXmmJBiraAjd5CQy4EN7H0l+W1XZtgAjs.qCQHOKZAnEsvWj3ZAeKX+O+pc+xGogPjF9EDWOLLRgw5b2vF1iUF45MKf72gPf7k6WLuHIjsfw7t9nALzRQT0KdladfOOD9mDS+XYPT2iXhvHF5m95Ee+Fe1BEYHT5GZFQQNPC87PiF9QXKxASJ5gJuivdOYOUG9j.pMicfsy4u9ha+q6WKuMW3cnnWNVwAbKWzVVJvHlZmvKg31lkGYGlHTyWPDXXhig+caRBShiEl2+zwI3LFqN6CzKn71vWtFAtmrz9Cd5DNlwusDH9grTpiZdKU4dlwUSB+C7ecS1HHIU0PAFbBGKtK5xX.cI+jOtMu3bkQHW5ml7W+q8xNB+xMmXPNGWSeAHscyBuiC97jgXmCZ.WE9kKbUHDhgeHF8OAF23x6mzZRwYLol4XgcPFpIHp5p+y7rm4OpcYnb4TOXAbtCLdXrqC0f.tNd5WgTuYdddj7UaAUS27zvHD2EgcPfkZDPschocIY8nsK1aSWQ+K7B7d81NClqbUXyUFgrZ+tL4alGoUMDp7EYqFLumuaRwvvXKfv2pctxOOLCBg6iIjY7J7NjWl8TCUv09J7yAvZIPb4SnV71bY+7jLLLO4IO4TDaarYf9sHVfsvQTqECYKDl1Maw+j6fjJ5RPeQK2Zw8o3Q5WH1OamN2OEGotjfF.gyP2.l9JwVG7amgyiMf9Qtp6uBG5K38iX235phGzhXK332bqrX2ko1t.W2ISEKy2JSQbJlBEI4CgoNMEieZJl9APwWewqcKs7BEcMXcnHaqCEAtCaAGvkdUiBKolyXAHnp1KNWyPTPCQGNw6BNDZCVuzeGXAgFbwBpv8KxLTA6PV8lCZG6FzX2DxO5v9P9B+PFWEC4m+y8lZjmra6NgA4VbwNKQW53y.uba9nPk35sy.TT+vilZBq4Mf6M7xsHtKNoWP6GxB3F3B0aejdC8nEm+7reZ7i++rq2EHdmyzAxR2s49cWTd02ln7uGA+cTg3UW8lIDcODg6WHBs+NlWtCgHtq8X+2gsGweisGaW+9EjW8cQP9tp0H9CvZ7hG7b3OT3HuiSp5bunv4FCDU2dzCtmof1Eme2GDg+Xb2XjkwxCO7.Oa2vmZP.hNJZfiNCgd9nF9jCfHCUCJ1a4js5kPmjfq5IPUFR8.Gnftj6fASMcViLDn4xYGNbW2PeB3I382HWvd37XL0WRbMhp+Z3JE3O2saus6zKL0T2Rs.syEGsovfi1w+veNXaNAe4+eOXsExjXWOaY6sK6fdOg5IzTs21YqvxuiWuUbUyxUZsUiCW8RAmd0dQWnJ5NR9s0Wxql8i5KruyVgAb9X2pZDbPr71QovAS1Q5YH81onbcYCOMg66H8y8nF2qbNVQFPyCUkg1f+ITl61z51uC95tUnmeqUwQ5z6QodmZ0CsnNRZqAFcKg8wpVH+b02hD+p+.Hwu5GbI9Ue+Kwe8wa40+.dCNZ3Wt+Pg8BZ5eBsV.S2CnMXCvtmpLPDV+uajYGCnRBwdNbvveJ5ETFxUacSs8KI9XV1U3ssp5qu30WbhhtUzUb55JJ1U2MKDRPVj8OUkyO5PrOOzYbe9Amc84Gdv0Gk.a6HNr7PefdydSn8nwTEav8j8veCAvrLAGQ+8mBweDlJPI2K8O0DKu45ReEme2tYitda1ZWQpG9ewotkiPIYbG0QFPd5+cNSAT436631jvEi6d7m5VTfNjJtkr3URyDuecaxFLPeKzcpxfpV1MU2ZXtGF+dT7jIPINl4b6wW5hxyBsGZeCFutf33uOucUifeiuteWMGmvj+0WDxVz6dKflCkqijiZ+EXTFrttEv1NGz7dnfn59KwvX3DOCX+qXvsIlJXcNCIPfAi2If0t9u7fxcZW+ZjcmPk+YHBqa+PbbgbLVtaQ5PrbgbLVdaJ8Pz7.cLdwh+KuihvB6dtcTtW2j2AvDHgcsOdhqKHT++jvGQ11KYZqmXnPA9izB3L2ROHp1q2Iy4q0tJM+shTrOfm3XAccflm716wL5eZdNfZ5a664Hwbe3awg+w6bINDsQiNBO7sgmt0mcSugdvL3MsPrQNtKHUOUet2HrkALbn0I618ARZ8sMvK0mOcHv54HKDzlC1gXjyd7gOEwn28SQL7KkTz+BpCgngtaH2Zl.8658SFI3Vsg+pMKsfif66WL.FDOSfkihKKbFMXghHv+0LddTZfspigoGtAWEdjy9HGud+jsu0QAnVHhhTjy9vndtYQVE9wktNbiktGi+d.+SuZr2w2uCx27O7JneowxsdmPN5yhRByRsGvP4sO9zONZBhLIRmLdB7LQhb6Gi4OIJmgzbMAmCeantOH1fNfZoCdPltO5RcaEmP77+8W981CF8gxh+zn0ci.cZd7CNAOB0k+gfGCdlseRz7iFAirrmAebzB89A3M09g9y+ONJu.LJiqLxa1+38sic3yo0Grq.yWz7aK9e7e9kcANjSgAcbBqSgo.B8tnQhD4yeUcXXuPv9s+WMP+lydzCdcE667aE9j59eVz8qBj+3Xk5e69xv5arTfdxQqNeJLnskHHme.W2.Um8AtgT7ai611kI3A5RdM9+feB5Lla6yB5L11NCak8Q9RiOLp2k43ID9jnc8ptyGxc7X1i7+9O+u8PeL6lO3Gy9wZ7G+vz32yiW+wuc+30CXoOKZfRqfhlCv2Y6uNJGKMKRPGH98bna22aNI6yQc1iBxbB+kexlOMHYCulBb6IdYa9rnAU.T0K6ZDujq60s+MuJxCfHWDcpIf2sLmiGe.+bOi+ibGedcoiGM9qdGHgzAFAe1V+PRFZ9lAIh79MRd8Evs2aBNTu6duQliMzUDCKzZBfgMjkAVg43StLHcbfIzyM2ZwARcZfnv5aA0G4aCoB.xZgAy.8D2092T3Udjae8EVuheNrp1cQQ9lhBo+ll.3lTs2OeuZ1qxKZ.UIf2Pw98jLH5Czz3Sh5uHQ7hZ81WgJe5V9yWK71GC9wQ8T+usJ+9rnAFiu0J.+znA9FusJB+y3ZkeKnPsOc6ewC+1qTKRje26qT6OJUpQ7tPkZez6qT6O6qTKxe68Uo1uuw+9KtUkZ+l+k2Wo16qT68Up89J0dekZ6Wh+UaO3ztBK.d2aRfIRvs14cGL+vVsVMQGHuzxRP21zvFleJDkOpOhCyw3LW+Pz8Ac.VtqyBFVSiE1BeKPhvUZTWP+.hAae.k3TBc4E+9uLut.TCyCfqFoZ1hvEq2wPGl.y0rAd+sSHV3AtGLQXvLBVRPExA4g+CSgr+n+zpP13uKTH6O48Ex99BYu2BYQ9GQItUgr89WeegruuP12WH665Ex9n+ztP1GbBFXcTHuU+HK9YQg0yQf3oJQ9iit7GhcE7CwbLUPzx3qE8qbwMYyG4AAtt089+IbmGkysMRrsUrDMJNFdjovZN+ZQQW60qfkvd5wP7FLl3uAiIwavXR9FLlTuAiI8avXx7sNF2x8Im6XL02lGBndduGE1Ym4uiGOy+H++fJm98K

@d-healey Small fix, the path was looking weird for high vertical zoom, now it's all working, except for a security when start>end but this I can leave it to the user...

HiseSnippet 2597.3oc0YstaajaEdTrmcqTaVroM+n+jvnX2QwxxR4pW33TeKNwXscDrxk1tHHkZFJIBOhb.IG6nsH.suL84nOB8cn+s+nuAsmC4LiFIK60wH61VgEK7PxysuyMxS5njgLsVp7pT6kiSXdU9E9cGKLC2YHkK71eWuJ+R++fTNh1Kl8F5or8jpQdaONgp0rHuJUV3Y34pTcQO6u+0ucaZLUDxlrjm2qk7P1A7QbyjU6r42xii2iFwdIeToSe+M2OTJ1QFKSAcZA+VdIzvSnCXGQwicCeumS0C8pbG+6wht6ZqQev8u28BW6aVK7Qgz0Xgs68nV2k1O5dqwh5Ec+GbepWkO6oQbiT00PMLsWkE2VFMt6P4YBm.dMWyAqC+nsWWPxtk2SFGglHtp2NC4wQcxAKsmWE+NSftEbP2s8OjGwKVeBD9k1MHSnnL.V4FSqdKLk50tr50pj5MGUpRIUZQmJcK+tgJdhYxNn97y82WXXp9TvOUVUbm06F+0uveGIbBgo4H5Ir8TvGETD7vVsZPteqV0WuFbJsLl0LLlQUAvB0.mm1PNkpHuYuDQLYCRNmFvL6HGkHEvGAKY2cIfhIDbhnmFN+2MeBhkeqn2R0aTibteymfg7ORBNkoL7PZLFtaI8sSYOakFwkGHkIchoiYp1fpZyTPtX2qKcTRLq.oCVxtJAIgjQCZv0TrADZef7Y4XAm1iGyB.7s5pqRLCYDpkQ8gUsDGQMTfbZemAXsE.7qh+xoPoniIx9jdo86yT5ZUKYIIk7JgJFD10gZFZce0.5ikzHBUTRpDtvx0XzTRrJaMtHlKXj9ohPCWJHRARGp4aaDH2Ux3fvbzsAH33TV8Z+oZU48IAYeUE9rJRS2wZCaTydJ4YZVPoU1koOwHSZP5Si0rFjkVpQgLCTLcZrAXikOUOGdpYFKT5NWSirqQwEC.nErUffZN.CPwxFKUDkCaD.chFiG6p4vvSdAdmb4klDUBvgErYBMUrDnZQ1A+.9++PsO.NjKJYn.pWpNZlY.9Nz33dP8xf44Mr9WzA2AkD4XYpA7f0bxG3gc4rUCJv3AVe1fl.zDuUbbfqzrtYuXPNndNvIeb0hMi4CFZFnXiwCTqZRSMjWwdIfSl.n3A7elgbMZTugGgHQCxJ4q7bFRLtj0kWecBnxBogYCAGwEoZhlO.hHkf6ASZsaj.HJIPygdOjVDtlPcqCAOXdf6HBVbylMqi5jyhr9gjIpyARPQ2VlJhzAsa0zFn7AGvgHmKagPIBniFYjTHsx8bICkcxH7EirkfUCwniuq0aaFyDCLCWOeKsgB1wF1Zf31fp7ZLE4HncKMl+8rnf5j6PhWeRJtiDssnSNaXPnaFSZekXBRvzrPQECX.SfcVwJBWcEGIhdYmVinejhd1DCPwiP5NDLZnqw6CZ2HiWq5ZETxaC9TjaZI4LlkKX0iwVERvvpmT0XhHcTOlB8cNQR5KUSbij.9H5.DzgNk1k2oyqHmAtTROXMZRxXKATxcIgCoBfDMocKMKLK2FiO9lGdxy+97.Bmczm+dVzdzPngLXL2EBA.ccB.PgXKvxW5rgf+Eh8HikofNyhVxUfKmMXXI1GA3Q6lsHK67I28B8IkD65STFcLDlssUcW2I8Lc2.h2YrJl8aoEB5mhlu6H8UfzwECSUJnnQV7RhDy8wRb4vYlmyEPl6Sjhu1.k60La.aSxQt7OPpRfFEYDyLTFoIgxz3HDwSgqPPB.WhfaRifB0GeX2FDlIzAuN6ASXxB938K0YKSkGR0jQPgZN5sycZXtIabgmUmNZDHIvfsYeEFAbMk7zb16yBnwBOE2LAKBgHvQry5l1ylZBkgVocQWVM10j47Djd1R.HZfb7L3hufjF4zBfMiy6HFBHqhcALu8EJ1Vt5hffcwnX4DE1d8jF.7+0fP5yPqLutFVDy1VRZLfaMAXHnbPKCEDFFO1xoNRM2vOkY2sVUjwA7MfvW9is4gver7FNmcViWKBtAAiwqYaNYoIbHRT3vGa87Y0ofuWd4hFskhKA5c+QSaj3KkA1JbgCeaCPdVSuQVMAtHvI9FPkvU.kysc8rlwVsY4MJGziYKcXzSNF0+f5PMMay.C5rsXStImk6A8Ls1QRSrbLnKbn3SbiI0j.Ssj1Xk3cJxUafopNs4CYdmiXCnEXJIX.j7LffMXOiphpW.xV7cEmwAv7Srn9J+eNX2ZFvVjiEWIvFjeApuRaD1mAsg96Y8WcnMlpB0axSRv9t4ccccSgdDPUTYOakgAr4bATrF6kdySfWI3UFxqF9DnIm69nEGmrQQSXxW8UNZIO478TCpiVE5jx2QmuiklkwcAaCpfwHyWBsKIgGetN+A0Wtr.ZMq.VIS.0l8Fkm69j30HsAamfUsPtUmbx7uzXIDL6ROvuRHL1F3EB2cZ.+CY1s52et6kwxXlZtaiS.PcYDF3tKPYWIdP3UtS+zY+K9oykeYen6N0kNnTrOz25EILwE8deurKhCOydgLsB9Ki8Q1eQ1ir6FC4aJON7V5O229dUOqBWdVHdWIhsuccVh+8adUH9V9y7N14nCuZ+cg5F3DCxrJvRSPpPPrxtrSghBt4GT0O6AX.3V79CuJelS72Le5B3MxxTca3m26KOQmwksgyvq.Vrve9ur4P688KV4uM.MyBI4+CBwkDUTIQQTaB0dlA8l0.tDveBo+Q8zrMh0mB2R40y5ctDw84SKtsSg13Bq3toeoGpU1VDkgsc2zvduActG7hs1kr0q1c+WP1a+CdpGWenbDHC3FytPWMbWk8Ecfm7xL4SJZhhr3GQbyEnLalto24GzzW5enLJMlZldtW3zAy1.xnmZXS3.kDP+6wkmd3rCCawq1vvt7Y0cUU2a42gaBGNe88FyQegLner02rQKdS+mB8nCMST1E8262coyQ7Stp7qxUkhwfvbiS719meRWWxLh+6W0YDmbkmQb2whPvswJGJY8kuTAM1fKsUVTnZ9TANP6nxKerTZvlXkmQsajdcw6J.repSiu9SOMGvrX2Xpeh+puRC6u5.Eavp6JCSwbT8puqywu3YGu0gGt+QOa02cvVaupSB5U2UkNR+N38lvaM7FgvkeEjm1hJ9U9m+CeOb5aVUIeuXqgDkuekEtxA.eDy4dw+maN2+zU84Syn3qlqic4nu9ohSYwPtS1+3J655lju5zINGB2YNYnDdd3zwdvM6GLfoJq6y0f1xXf3+Iqb6MOlAOHVWJH+2r4Av0nopYSe9Hvh1ez+yRLW+0u12otDLam7eE+1mjNEKbk5T7IQGu9cGt9h2Mg3Avq6Tbr1zQoi5BEhCY6jMwFrdzMva559tUd4ptvqsre7ugeYa1F+tR1lsy27mDYLhFpjuKzciZLN8mYWAragsFdU+CwuIsO+EnGAU4dWX3zr5bDd2qKg265R38utD9fqKgO75R3ittDt1OLgXSnsRMxQtTSOuC67T6CdpTonuekE79O.NFoKN

@Lindon You got me ! I vote for yours

Happy New Year Everyone! I wish you all a prolific year!

Joyeux Noël everyone!

@orange I've made a few games about 3 years ago... That helped a lot to understand object manipulation and so on... And it's fun !

Version with Start + End knobs

HiseSnippet 2567.3oc2YstaabbEdok1jR1jf3V+i9yApEIKinnIkksUfrb08Z0nKDhx1sMvvc3tCIGncmYwryJYl.Az9vz+zmh7HzGk9FzdNyr6xkTTJxBME0kHHP6Ly41241LG2QI8YIIRkSkZmNJl4T4Sb6NRnGt8PJW3r+NNU9Et+IoLh1Kj8Z54r8jpHmsFESSRXANUpL2uCOWkpy6X98O+saQCoBe13kbbdkj6yNfGw0iWsyFeCOLbOZ.6TdToSuxF66KEaKCkofNMmaKmXp+YzArin3wtmqyKnICcp7UtOhEr7pqRe7JO5Q9q90q5+Te5pL+18dZqko8CdzprfdAq73UnNU9ncC3ZopqlpYINUleKYvntCkWHrB3U7DNXc3Gsc5BR1t7dxv.zDwUc1dHOLnSNXk33TwsyXnaNKz8.2C4A7h0GCgetYCxXJJCfUt2jp2bSndsKqdsJodyPkpTRkl2pR22squhGqGuCpO+b28EZlpOE7SkUE6Yct2O7YtaKgSHzMinmw1SAeTPg2SZ0pAYkVspuVM3TIxPVS+PFU4AKTCbdIZx4TE406EKBIqSx4z.ldaYTrT.e3sfY2E.JFSvYhdIv4+1YSPn7aD8VndiZjq7a1DLj+dRv4Lkl6SCwvcCouYB6Yyz.t7.oLtSHcDS0FTUSlBxEydcoQwgrBj1aAypDjDRFMnAWSwFPn8AxmliEbZOdHyCv2pO7gD8PFgZXTeXUCwATMEHm12Z.FaA.+p3ubJTJ5HhrOoWZ+9LURspkrj3RdEeECB65P0CMtuZ0.FDJoADpnjXIbggsgnsDaz1ZbQHWvH8SE9ZtTPjBjNT02RKP1qjgd94vaCPxgor5099ZU48IdYeUE9rJRS2QIZVTydJ4EILuRqrCK4LsLtAoOMLg0frvBMJjomhkjFpA1X3S0q.nILsAKsmqoV1Uq3hA.1BFKPPMKhAvXYikJBxwMB.OAivic67X3IuF2St7RiCJg3vBlTglJVLTtH6fWh++KqcI3QttrgBndg5nYlA3aSCC6AEL8lk2v5fQObGTTjSjoZvEVyp..SLKmspWAHOv3zFzDvlvMCC8rEmSZ1KDDDpnCrJ.tZwlg7AC0CTrQ3ApUMtYBjYwNE.JsGT9.9O8PdBZUulGfPQCxR4q7BFRLtjwmWeMBnxBolYhAi3hzDRBe.DRJA+Cl1Z1HFfThWBG59PZQ3IDpccH5AyDrGQvBa1rYcTmrVjwQDOVcNPBJ5VxTQPhW6VMMQJWNF4r4KDJQ.8zHQRgzH2qjMT1KivWHxVBVODCO91VuoYHSLPObs7sRzTvNV2TED2FTkWg4HGAMbog7uiE3Um7Ujv0FmjaIIwT1ImMLH1MiIsuULAIXRVnnhALfIvNKYDgsxhkDQurSmfnefhdwXCPwCP5NDLZnuw67Z2HiWOz1Lnj2F7oH2RjjKXFtfkOFYTHACqeRUiHhzndLE56rhjzWpF6FId7H5.Dzgdklk2tyKIW.tTROXMZb7HCATxxD+gTAPRBocqDleVxMFe70O4rW7c4ADV6nO+crf8n9PKYvXVFBA.ccL.PgXKvxW3hgf+Eh8HijofNyBVvVgKmMXXI1IA3Q6lsHKZ8IKes9jRhcswJSRHDlskQcWyJ8LcWCh2ZrJl4aoAB5mhlu8H8UfzwE8SUJnpQV7RrDy8wZb4vYlmyFPl6SjhuTC06SXl.1ljir4efTk.MJRDSOTFjP7kogAHhmBWhf3AtDAWmF.UpO4vtMHLsuEds1ClvjE7w6Wp2VlJOjlPhfJ0bzam6zvbS1nBOaRZTDHIvfMYeEFAbQk7zb16xBnwBOE2MAKBgHvQrK5l1yjZBkgVpcQe1DruIy5IH8Lk.Pz.43EvUeAIEY0BfMixaI5CHqhcMLu80J1V15hffswnX4DE1e8rF.7+kfP5yPqLutFVDyzWRp0faMFXHnbPOCEDFFNxvoNxDtleNyraspHi83qCgu7mYxCg+Xw0sN6rNuFDbcBFiWyzcxPi+PjH+gOy34ypSAeu3hEcZKEWBza+illHwSkdlJb9CeSCPdFSuQVMAtvyJ9FPkvk.kytc8rtwFsYw0KGziYKcXzyNA0eu5PMMSy.M5rMXStImk6AMMM1QbSrbLnKbn3SXiw0j.Ssj1fR7gkrRHOLOusAl1Z0rKy7TGwFPKvWh2.HQZ.A61dAUETu.vMX8RVCEf7ma7.K8ANv2ZJfWjiE2JfGjegGXo1nK3FPdnueVeWKxiovPcn7jGrebd2XaWVn2ATcU1yTwX.aF2LEq8diWIE3ULdUh7pjOGZ9YunZwwIqWzbl7EegkVxyuZuVu5nEhNr7cRx2wPyh3tfsAU1XjYKg1kjvytxMB7puXYAzZZArTl.pM8UMuxEMw6WZB7NCqlgbqN4rYeaxRHX1kgfekPXr8vwB6cc.+CY5s52el6kwxPlZlaiyFPcSD5YuiPYWIdP38uS9nZ2q+Q0keyuu8x1kNnTrOzO63Xl35lDfS1MzgGfOWlVA+k1776OK642cCgbOkCGdk8G6ZdIqiQgKOkDmaEwlW0NMw+wMtMDee2odg6LzgWt+NPNINKgLqBrzXjJDDqrC6bn.gcxBUcydYF.tEOLwoxGYE+mlO2A7lZYptI7y4ckm0ynx1vE3UCKV3u7W2Xn4c.Eq7CCPyrPRt+nPbIQETRTD0FPcnoPuoMfa.7GS5eNYR1Fv5Sgau7po8N2f393IE2VoP6cgQbepaoWvU1VDkgsc1PydmFctGb7l6P17k6r+wj81+fcc3IGJi.Y.2j1F5l.2gYeQG3svLc9LjFqHy+dD2bMJyFoa3b0QP84tGJCRCo5ImHFN2vrMfL5IFCENpIAzWeT44J9erwjcaUw661gq8GNac7dyPGgrleJzwrgK9ot6B8k80iUv4c26O7SyjDKK9eYt3Kl8AyNDwG3d04acCSF9ebamLb7sdxvcGI7A2CqbXhwmcpBZZAWNqrnP0bWANF6fxKehTpwFTkmLscPdcw6A.rehSiu3KYRNfYn1gS+qc+9Nmb7ue2sO8s6c7A6r6IW1SAWgpGipe6JqbVS3QDNQHl3VAIzTUvsxe6u+IN3b0LxKeuPi1Fjuek4toQX29NNB64+etQX+AP4iIlxd0bcrKGCY1UbNKDRPx92MYGa6f7UmL63P3BvwCkv69lL.Ctl9fALUYcelFzlZMDjOdkGrwIL3ktIkhj+Mab.bOXpZ5bj2Crn868+hCyze8qbspKASoIe3V1et++truczuCfmpo3XsoiRi5BUa8YamMJFrdz8vqpZ+tUd4ptvykLe7ufeYa1F+tR1lsy27+JxHh5qju02dkXLN8mYVAragoPcU2CwuIsu5Mfifpbu02eRVcEBW9tR3itqDtxckvGeWI7I2UBe5ckvU+wIDaBsYpVFYSMcbNrytlWrToRQy8Jy47uAPl5gSC

Version with Pos + Zoom knobs

HiseSnippet 2604.3oc0YstaabbEdok1jP15f3V+i9yABEIKsn3EYYaEHKWcyxVHRxDh9RaLLbGt6PxEZ2YVLyrRltv.suP8YnOB8cn+s+nuAsmyL6tboDkhrpc.BQPf1YlysuysYNtqT3yTJgzoRsmONg4T4W61aLWOZ6QzPtyd63T4239iBQLseD6UzSX6JjwNaMNgpTr.mJUl6I34pTcdGyu+yeXKZDk6ylrjiyKEg9r8CiC0SVs6F+PXTztz.1yCiKc5U1XOeAeaQjHEzo4ba6jP8OlNjcHEO1MbcdJUMxoxcbuKKX4UWkduUt6c8W86W0+A9zUY9c5+f1KSGDb2UYA8CV4dqPcp7EONHTKj8zTMS4TY9sDAi6MRbJ2JfWFpBAqC+niSOPx1k2UDEflHtpy1iBiB5lCVJGmJtcm.cyYgta6dPXPXw5SfvuwrAYBEkAvJ2XZ0atoTuNkUu1kTuYnRUJoRyaUoa41yWFlnmrCpO+J283Zlb.E7SkUE6Yctwe+qc2V.mfqaFSOlsqD9nfBu62tcCxJsaWesZvoThHVS+HFU5AKTCbdJM4Dpj7pcS3Qj0I4bZHSusHNQvgO7Vvr6B.ESH3XdeEb9WOaBRDpef2eg5MpQN2uYSw6gv1ORRNgI0g9zneLmz2LkIsYZPnXegHoaDcLS1AzVSxBxEyd8nwIQrBv1aAypDjDRFMnMWSxFRnC.xOKGK3ztgQLO.hq1pEQOhQnFFM.V0Pb.USAxoCrFfwV.7uJ9KmBojNlHFP5mNX.SppUsjkjTxw3KYPjWWpdjwCVqFvfHAMfP4kDKIjaXaDZKIFssVHOJjyHCR495PAmH3HcnpuklirWJh77yg2FfjiRY0q8WpUMb.wK6qpvmUQZ5MVoYwM6KEmpXdkVYGl5XsHoAY.MRwZPVXgFExzSxToQZfMF9T8b.phoMXo8bM0hdZYHeHfsfwBDTyhX.LV1Xo7fbbi.vSvX7XWMOFdxKv8jKuzjfRHNrfIanojk.ULxN3Gv++Gp8AviL6X0RP8B0QyLCv2lFE0GpY5MKug0Aid3tnnHGIR0fKrlUA.lXVNaUuBPdnwoMrIfMQaFE4YqOqZ1OBDDpnCsJ.tZwlQgCGoGJYiwCTqZRSEjYwdN.TZOnBB7e5QgJzpdUX.BEMHKkuxSYHw3RFed80HfJyEZlIFLNjmpHpvgPHo.7OXZqYiD.RIdpPnADoMITQn10gnGLSvdDNKpYyl0QcxZQFGQxD0YeAnnaIR4AJuNsaZhT9vDjyluPnDNzViDK3BibOW1PYuLBeQHaIXIQL730seSyHFendzZ4aIo7gLX6C.RfBuuyCjcmFjNMauDVa70cdCpcuDSaNDZCSiBeOKvqdcxcHQqMIw2vlbdpzT.aV2TbEE4rX.PuWzRFxxJgjyJK0JSUMDux4oLLXJEEzRqx2xV1ujSEbcH2TBxoLRfjdJVkXrg6bFVljJGS3ow8YRzEYkEYfPNwaQ7BioCQrE5JZVd6tufbJ34H8g0nIIiMDPIKS7GQ4.IJRm1JleVNLFF782+3m99b+t0NFD9NVvtTen4KXLKCnMnqUK..JDBAgWKb5HvMBgXjwhTPmYAKXKjkyFL5CaX.7.bUjEsX8xWHVWRrqUBTifnosLp6ZVomo6ZP7ViUxLeKLPvfTz7sGYfDjNtnepTBEGx7aIBLEGKkkCmYdNabWtOQv+NMTVWwLwkMIGZSy.oJ.ZjjXldjHPQ7EoQAHhmBWWf3AtDdnNM.JHezA8ZPXZeK7ZsGLuHKnLbPoVXYp7HphDCEjCQuctSCSAYiK7rpz3XPRfAaRxJLB3JI4Yyr2UDalL4VHXsFDANjcZuz9lLPnZyRcJZmpv1iLqmfz2joinAxwSgK4BRJ1pE.aFm24yGPVI6BXdmKTrssk+.AaiQwpFRrM5wM.3+6.gLfgVYd4KrVko8iPqA2ZBvPP4fVCRHLLZrgScEpPc3ILyt0phL1KbcH7M7gl7P3OVbcqyNqAqAAWmfw30LMgLz3OBIxezCMd9rxQv2KtXQC0Rwk.81+noIR74BOSgL+QuoAHOio2HqlPH2yJ9FPAuk.kytc8rltFsYw0KGziYKcYziOB0eu5PwNSMeM5rMXStImk6A8FM1QRSrpKnKgPwmnFSU7rj1fRrUIqDxCyyaMUXsZ1Gx7TGxFRKvWh2PHQZHAapdJUFTu.vMX8RVCEf7GY7.K8Kbfu8Y.ddNVbk.dP9Edfk5ftfKA4g16YsWsHOlBC0gxSdv1t4McsMSgdGP0UQeSECnI24u.JV68Ru4IvqD7FC4UIeDiG.qdG7FoEDPVuniI4a+VK0jGksVo1vd0QaDcY46nx2wPyh3tf0A01XjYKgNkjvCOWaZu5KVV.sOq.Lhes6zBQuybqxycmR7pjlfuiwJZH+pSNd1WbrDJlcuG3WITFaQ7Lt8ZMfOhb1sFLXl6kwxHlblaiSBPdYD5YumPY2IdP30tS+DZ2K9Izkeguu8d0kNnfuGzS6YIL9E8temrKiCO2dtLsB9Ks4w1ec1is6EA4eRmP3M0ekq8cqNFMt7PQbtBTW0M6MrWOxuk6YdO6LXyK1aGH0DGdPlgAFaBREhiU1gcBTmvNJgptYuCCv2hmg3T4Krh+l4CZ.uvlQ5eoqIBz4ckGty3Ie7m13T7FhEK7W+aaLxbq+hU9GC2vojjb+oQ4RxJnjrHxMf5QkE8UiuSv+ID+mUWYF+kSy3sRgF5bCiuoaomlUVq4kQnc1PydmF8i6+rM2gr4K1YumQ1cu8erSn5.QLHC3ty1.UEbqk83cgG4xz4yGZhhL+GQHxEnLajtgy4Guz23dfHHMhpmdZW3LAy1.xemZDS3Xj3Pm7wkmY3mrQfcUUwa41MT6OZ153MlgNBIHeNzwrAGdS2GCch80STv4c28O94YJgkE+uMW7EC0fYGP3scO+fqtjo99OupS8M4JO02di49f6gUNLw3ydtDZQAWGqrnP07wbbD0AkW9HgPisiJO0Y6D55gc9A1O0ow23ollCXFpcvyOxs0KTv9sFJYCasivOEy+Tsda2id1SNZyCNXuCeRq2t+la0xJAUqcjowp2199MgWT3DivkaEjmlBFtU92+KWGbVZFUIeuHigDjuek4trIW24ZN454+bM454uZwjWt58KfpLSMn8p45XuPzu+X9IrHHOJ6e5jcXCnvqbyWc5jnCfaFmLR.OHb53P396CGxjk08YZPap0PtvjUt8FGwfm.qJEv+62Xe3BxT4YSk9HvhNez+iNLS+0uy0ptDLym7+ie6m0vrKsSwbWoNEex02qeWiOMphc7vCg24ICwZYGlF2CJb6y1NaNNX8qaf2Q09c67xa8f2ZY93+B+x1rC9ckrM6ju4OKxHl5KEu02dQZLV9qLq.1M2Tyup6A32jNm+dywPUw256OMqNGgKecI7tWWBW45R38ttDd+qKgO35R3p+zDhMs1LUKhsorNNGz8wl24ToRw8DpLmy+C3Xr9F

@Straticah Ahhh... DSP... Unfortunately, we're all on the same boat, which is gathering information on DSP... But I'm afraid you'll never really find a consistent source of information that can explain an algorithm from start to finish. Yes, the secret is well kept, and the reason is that DSP guys are making their own algos which are the heart and strength of their revenues, and this after years (decades) of work, experiences and lab research...

Yes, I have a quite dark vision on this but it is easy to understand why isn't it?

Now, that been said, you can have a look at some books, they will give you the principles of the most famous effects, saturations included of course. The problem is that they often only scratch the surface, so don't expect to get a complete recipe, especially when considering analog emulation, trust me... The other problem with books is that they often tackle a specific environment, so you have to transpose those principles to your environment of choice (SNEX, FAUST, etc...)

And when you find most advanced books, a great part of them is spent to explain the C++ programming more than the DSP principles themselves...

There are communities too that are a great starting point to understand algos, but often again, they are scratching the surface of simple designs.

Decapitator? Yeah! Definitely a great processor in there that I'd love to get inspiration from! But my guess is that it is a very advanced algorithm for my level.

If you have an electronic background, this can definitely help since a DSP is generally derived from an analog circuit (be it real or not). The main difficulty with reproducing analog equipment is how components are interacting with eachother. A saturation is easy approchable using filter and shapers of all kind and combinations. This will give you something that works, but definitely not a good one (chances are it'll sound like old DSPs from decades ago) That is because in an electronic circuit, the saturation component have a backward effect onto the filter that precedes, and the filter on the rest too, and again, without talking about frequency and gain dependent impedances... This is very hard to derive and program. But FAUSt is made to deal with this and that's amazing. But still, that's just a part of the job and just replicating a circuit in FAUST will not make it sound as the original (I don't have the experience, but I'm confident in this...) because you need to adapt "by ear" and lab measures. Also, getting active component in FAUST might not be trivial, I don't know where we are with this now regarding OpAmps, transistors, etc...?

Another thing I'd like to approach is that a lot of content about DSP are approaching the problem from a math point, so it is even harder to understand what to do with this, of course depending on your background!
At least for me, understanding the math, FFT, how to code all this along with DSP algorithm, measure and give birth to a final and advanced project seems to be a long, very long journey I count in years decades. No, my version of Decapitator is not yet ready to make me famous :)

This was just my two cents about how to get in the DSP world. In short, there is no ready made formula to make your own. You (and I) have to start at the beginning, read books, understand concepts, apply tiny things in minimal projects, compare, learn more here and there. It's a lifetime job!

@d-healey this seems wrong, the second parameter numSamples should be your stepSize (protected), not the position j

Also you need to protect it when reaching the end as Chris mentioned

for (j = stepSize; j < buf[i].length; j += stepSize)
{
    local position = j - stepSize;
    local numSamples = Math.min(buf[i].length - position, stepSize); // protect
    buf[i].getMagnitude(position, numSamples);
}

And why not starting the loop at 0 to save some calculations

for (j = 0; j < buf[i].length; j += stepSize)
{
    local numSamples = Math.min(buf[i].length - j, stepSize); // protect
    buf[i].getMagnitude(j, numSamples);
}

https://forum.hise.audio/topic/9229/tutorial-macos-code-signing-notorising-and-installer-part-ii-added?_=1737473961595

@d-healey Do you mean, by making a chain reaction by listening to surrounding components state or something similar?

@Dominik-Mayer Yes !!!

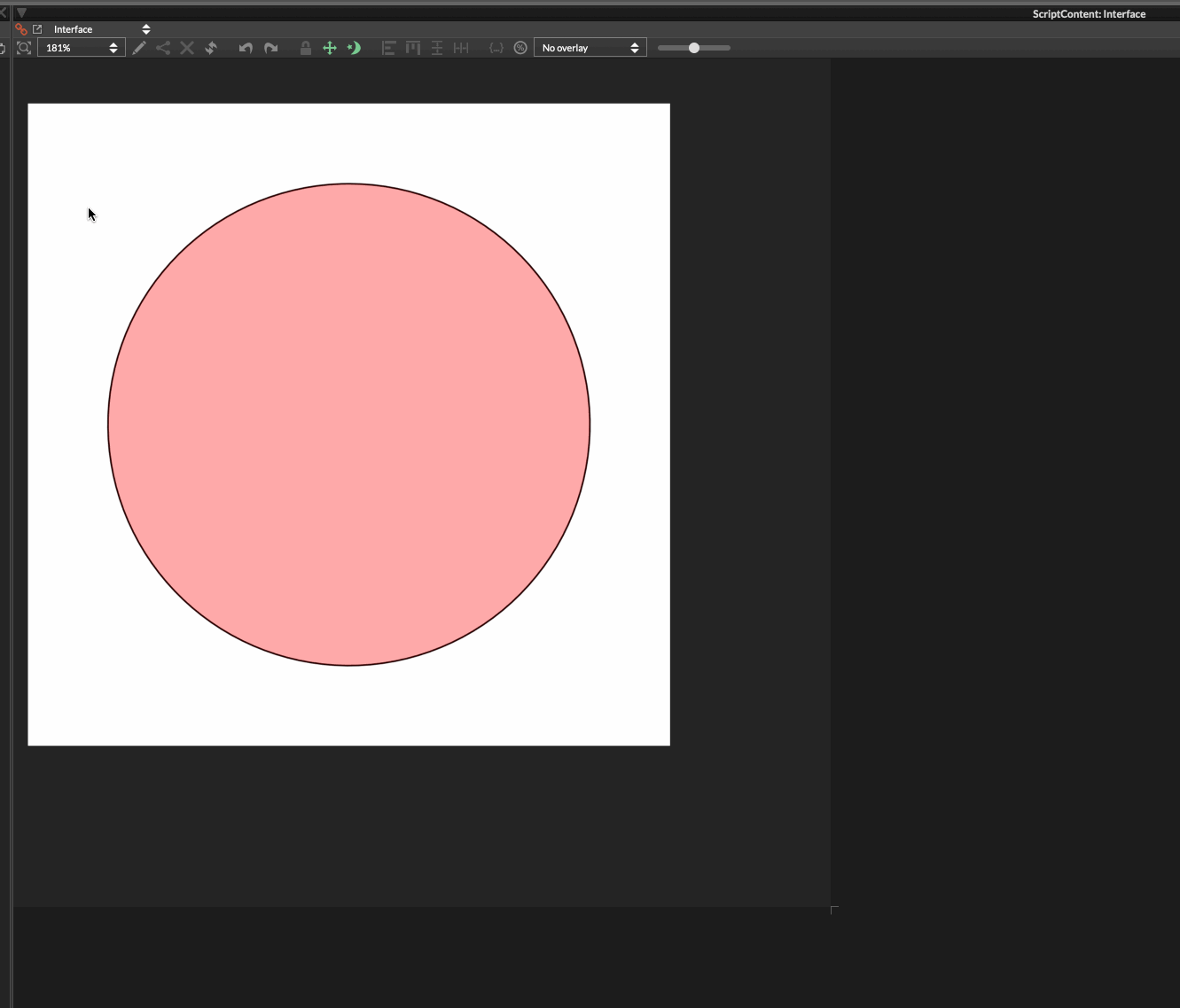

@tiesvdam something like that?

HiseSnippet 845.3ocsUstaSCCE1tsFsVXRLId.h1uZQUSocc8hlPrsdApftEQGSCgll7RbZrVhcThyJUn89viBON7F.1IsKorN.UwRShx4xmyWO96bhQ.2jDFxC.vRmNym.fOCMdFS3z0ASYfg8.vMPW1ejwoeBbzLebXHwB.g4eiJJrXAP7wOd8QXWLyjj5B.NiSMIum5QEodMN3cTW2AXKxoTuLY23fglbVWtKORxj7HcfO17Z7DxwXUZ4Pf2hCc.vWhz2qIgzZWaKK7t6Z0rYyNs6znSMrsdC7U0Z1oQ8Fsp2tkM.9j9VTAOXr.KHg.Xgi3VyF6vmxRdAmQCoW4RTF0.iku4D2C3tVp+hJuftNTWKiEknPfbULRKX4SJXu.MhZQuyeZg64wAzRQjs.BysL8xuD8pkkd5Yn2JnDLCkJjPosPiMCn9hzHJ97TzPlfDXik6SYoRRtfbeCh5xkYvD63gulLHPZbGhxM00qpIuUY+Rkj6UgBsavAZFXFwsl1qzVfbBQzk64yYRixamDdaEljG2IjHLjEHwG3QBJiT1NhYJnbV4IUJ80REmrisTfbnqaY8yGLnQK0OI5hpHgpkVoPhiMXvdsiYybL8cco9gjxetidU4Yc04EKfZEfm1Kf6O1AawmFmil5pd70EUSWPkck80Jcak8WPMMN6XtfbBqbLEKcaIseOjs8JioJJAbWWRvJCq5AB9S.Kyh7thDTUVpciH2knbedYwC5gEOY01lI6QYRjyFxnhS7IrGRwCluwJe5iC6gEXkhatOYd9j.AUQAXOxMx98D8WQTOR30BtebtyUCxNRQbzMWnNUJB.0RMhIQc.9R5HA5AyxZLkZIjC.PvuKMcHzINhEVf62.Ha83VQtXwx8ipoVyCHqyK0DnD5rPpXV1oZ+2ZR+Wo3VHCpvzY0bL2J3nb23wfiyGssIpusMwTjRvBnAm+3LGCjLQXxHrHfJ0Anii7FKa1MIx2NSpNT5bXNkhLwVWYqp.iILqXieJOlGrlxFNOXsEAAdXy.9klIcWpgmaD6QxIV7GZJhFor0pAh63xVm8jyxuzzb4k5d.qut.2ccA1XcAt25Br45Br05Br8eGn5SsGFI3dIsM.vHi9wiqfv9LrTAFqVA+BP1GwEE

The size of the last parameter radius should be approximately of the same size of the dot
In fact in my example the shadow area is the exact same as the dot area

A nice companion for the math.map node

@d-healey Maybe a solution could be to run your own modal so you can keep track of its state.
Or could the MultiPage system be of any use here?

@Morphoice So you're talking about UI here, right? In that case I make the silder 0-100, so with a 0.01 stepSize it's feeling like 0.0 granularity
Then in the callback you can use component.getValueNormalized() so it's 0-1 again

@Morphoice @griffinboy The system is not consistant in apparence but behind the scene, a mid point sets the skew factor via a formula. This formula is reverted to get the mid point back from the skew, so in essence it is the same thing. Now for the user, it is indeed confusing...

@tsempire this thread as some info about this, but it's quite specific with no real snippet example https://forum.hise.audio/topic/1146/viewport/22?_=1736869127339

here's a very basic use of viewport
https://forum.hise.audio/topic/2541/viewport-item-text?_=1736869127349
