Best practice for stepped frequency parameters in SVF EQ

[the red_1]

Hello everyone,

I’m trying to create a stepped frequency knob (like SSL / API EQs) for an SVF EQ in HISE.

What I want:

• A knob that jumps between fixed frequencies only

• For example : 3k → 5k → 7k → 9k → 11k → 14k → 16k Hz

• No intermediate values

• Works with SVF EQ frequency parameter

What I tried:

• Limiting the knob range and stepSize
• Linking via plugin parameters

My questions:

• Is DSP Network (CableTable / Table) the intended solution ?

• Is there a native way to do stepped parameters for EQ frequency ?

  Thanks in advance!

[dannytaurus]

@the-red_1 You could use an array of the values and a stepped knob in the UI.

const EQ = Synth.getEffect("Script FX1");
const knb = Content.getComponent("knbEQFreq");
const freqSteps = [3000, 5000, 7000, 9000, 11000, 14000, 16000];

inline function onKnbEQFreqControl(component, value)
{
    local index = Math.range(value, 0, freqSteps.length - 1);
    EQ.setAttribute(EQ.Frequency, freqSteps[index]);
}
knb.setControlCallback(onKnbEQFreqControl);

HiseSnippet 1593.3ocuX0saaaCElxIJMwqqnEaWrKERuwcHyvN+1fhg3jX6Nitj5TmFTfhhLZI5XBKQpIQkD2gc01E8t8XrWi9.zALf9Dr2ftmfsCIksjhcccMRqBfs4OGdNeme93QoY.2lDFxCPF4OtuOAYbSyV8Yht62ESYnFUQF2x7.bnfDXomZu993vPhCxvXtGJmvXo4Qpm2sydXWLyljLEBcBmZS9QpGUjLayJOh55VG6PNl5kZ2qWogMmsO2kGA1yblkP9X6d3yHGhkaKmI5GvgcQFeq48sa6r41N3sZu4ls2prsy1cJUdaLgzdsMt+ZjMr2ztbmMwkPFKTygJ3AsDXAIDNz83N8a0keASqfSngz1tD4fxnVfl0Si1uK00o4.mSHBYLeyDW0bZW0Wad.0gNb9DW1sUKXkHQZmlQtIYRk+HLIiTlz7ZS5NlsrCn9hjUj1yWX1fAQvNXH1j1Tz6Ekaubl6ygcvDE8v8H0CfACknvpkJshE7w8dP97P7ITXcNNvp1QVeukJUo3YDQsNcH1hBKqOQq5Oq7xv1S1cOVaX6CTBHv9bOeNCFTXYXsZGUOf7yKmUCcfoZIH9gfjOesRRqXC0mao9ba0mkKq+Zc8WaBe8B3TnLWJiX0IhYKnblEm8nAZQZDAb2B1CrfU.s4FQtW9eIuE73xswtVTlC4RPwGfA.FfYmQJn10JVfZFZYEcIryDcs9NqxRaWJdsiJFRD6JDAz1QBRAXrTqQDlc+TR9bkBdAH0ulGb.RYhMr8wttsg79BiZy26Ao.zgbA4wrBRydI3Prt5Rc5L10hOJWRvXWVVQFLIAKvh7ZSBR4zTaDx.ylVuvzkVaqSIRsQNqAiJdrOIdbctqiLcU96QKBPw4TxxgXKD1pPULbq3hgVtTGR.h5HqDFlsgT.HMWE5oMphE3AGEbpfl7IABpDPFUImCbY55rkLqRB6I39p8FmHgLtwTo3KSTZ0J8SOvCmZsuoBP652h9R3DMMKWrDxi533RZxCoxXRxNWrBZTp.fDh6D4hEYYljb1wKHOizzAxRdFb18Syo+QPWUZhzUSqIdGylTgc2wai4FiMBwqOE1XLI+WZp41RLv4Mq+rYkQuzGMid93bIPmRkeSyDJ1wwka7JyjhV+.hONfbLuoKtegPrmuK4IfMthUafkqmL0ZzJcesIrmbGEr6hYLha3rPHrv0z8bnmviDT1Y.Ub.EpOLOLxqEzhfMY+XqClyHmjKPOtjbrLunEg4nF7evS7hkkiMhWr7fESnQPGRDWvC5oBGw+FYrn12Gpbxm14xxnccc4WHK8owYoPLPMWStae+tbF0VNkdGCrzc83QRdBs4ljhu2fvw.KGZz4XL0Ulw2JJD3BcdLqEbNptqLl6DRPnRm2vrTQ3OnB3PtCrzMpisAed+lv0VxRII8Jj2RBJZOL+MCLRmBoayJyxxScPCYZKC.jmhqCZGSFMahC.wfdEjTj4LlKEkoNeVNBpVyoUcivSjqBWwhNQy+BtBoVz9aEHVPt0EMCOuyo.aYFDcayNTWoxJFu5n1+PAmrsm0RkKAEGWNf+utVKI+TB.4M1CRXpA47Nv8RJAFjDkxW.nX3H.2GPYmj85l0qb.9xry8p2Vo0PF+D1sV8HWncBwyV4279qcz80Mr0BzwjKEGyUGHjKeN.LohSuilPmz5vVT6GFvi7UCxZBU9iJUIcvQthQlug9PUd5ciDbOrdPNTJfl+J.sxZq81ctBPe8adycmNfht6+92JfNm4QuW.9THrzARwclJ.B2nMV.ByOIb.Oq95QBXnUmRbHOdINVPc866AJxdJrosItSGPf9EFKPj2hMQf.DOi.j2syTAje5qp913LuVdbtnKPKesDXp7Ou72GWfQM+LfmaOl.CfwIDXNPR8bMki8IOzLInrjYMFFtX04yYEilrOEg2Uomt9I.g.VV18ZWBplgcS04Hz8TUZn1aLdrlAZWA49+YkOLqp5cEXDUSQgnLCiuUtgSpKkF5iZ3j8bP6w487vpFOloWD4yRaRdX6.9o15N+jvcQ0L.CMSc46RlGHGaUdz2tBd4E5o11YOpQDb0YUv0lUAWeVEbiYUvMmUA2ZVE79eXAk+GqhuVWl5BLQMqoatwX.eBbwO5+wkAyGk

[the red_1]

@dannytaurus

Thanks for the suggestion!

Just to clarify though:
Synth.getEffect() doesn’t seem to be available in my HISE version / scripting context.

Using:

const EQ = Synth.getEffect("Script FX1");

results in:
Unknown function 'getEffect'

So while the stepped array + UI knob idea makes sense conceptually, the example as written doesn’t run here.

From what I understand, effects can’t be accessed directly via Synth.getEffect()

Please let me know if I’m missing something or if there’s an updated / supported way to reference FX modules.

Thanks again!

[dannytaurus]

@the-red_1 Do you have a Script FX module called "Script FX1" in your module tree?

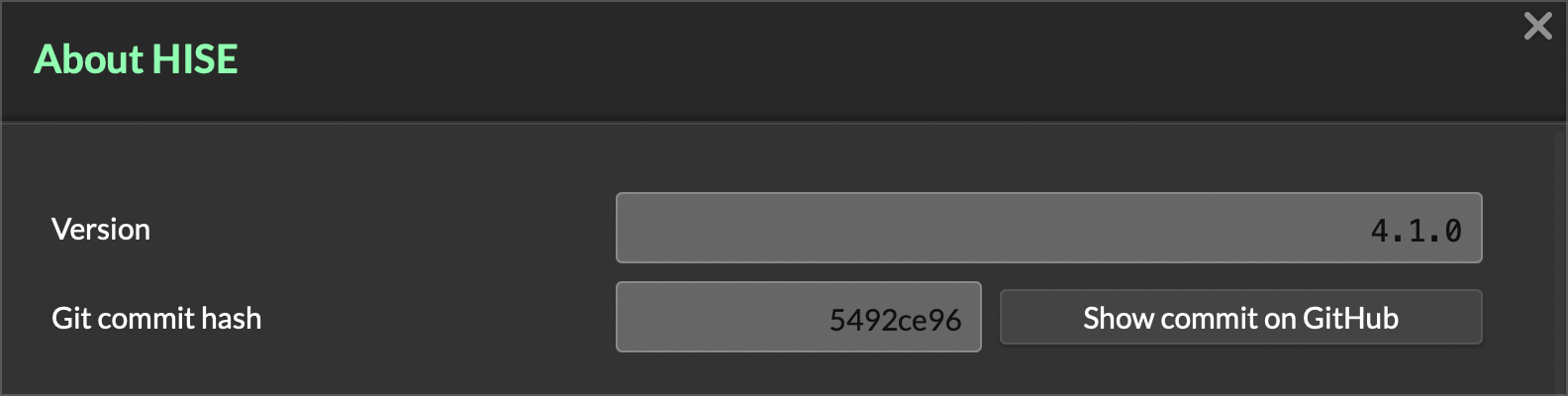

What version of HISE are you running? Go to HISE > Help > About HISE and tell us the git commit hash shown, like this image:

[the red_1]

@dannytaurus

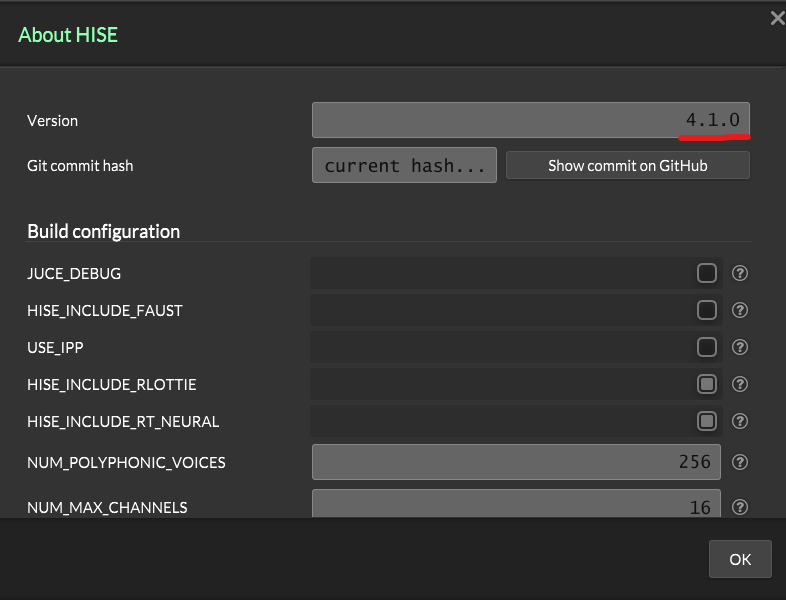

i have 4.1.0

[Chazrox]

Check your callback function.

Your knob is

'knb' but your callback function is saying KnbEQFreq.
