Sup guys!

Inspired by a huge project that needs a bunch on different knobs, I created an online knob editor that is specific to HISE users. My app lets you design a knob online and export a fully written LAF function.

I've provided 4 Presets to get you started.
At the bottom, you can 'Save' your project and 'Load' previous works at a later time.

With all these options you can make some pretty cool looking knobs!
(not showing: Value Text, Component Label, Pointer Dual, Pointer)
Easily activate/deactivate and drag to re-order the layers to achieve different visual effects.

All knobs are fully scalable within HISE.

Fully written LAF function. Just click Export code. There is a convenient 'Copy' button as well. Simply paste the script into your code editor and apply to your knobs.

Easy screenshot button to save an image of your knob for future reference or to send to a client for review.

Full List of editable paramters/elements:

ROX KNOB DESIGNER — LAYERS & PARAMETERS

DROP SHADOWS
- Highlight: Y center, width, height, glow, alpha, colour
- Shadow: Y center, width, height, glow, alpha, colour

SKIRT (outer ring under the knob)
- Radius, Offset X/Y
- Gradient toggle, Top colour, Bottom colour, Gradient midpoint
- Flat colour (when gradient off)
- Outline toggle, colour, alpha, width
- Highlight arc toggle, colour, alpha, width, distance
- Hover Tint toggle, colour, alpha

ARC TRACK (background ring behind the value arc)
- Thickness, Distance from center, Offset Y
- Background colour + alpha
- Outer ring colour + alpha + extra width
- Outer gradient toggle, top/bottom colour, midpoint
- End cap (flat / round)

ARC VALUE BASIC (the main value arc)
- Thickness, Distance, Offset Y
- Colour
- End cap (flat / round)
- Glow toggle, colour, size, alpha
- Gradient (thermometer) toggle, low colour, high colour

ARC VALUE PAN (centered, sweeps both ways from 12 o'clock)
- Thickness, Distance, Offset Y, Colour, End cap
- Glow toggle, colour, size, alpha

ARC VALUE FILTER (LPF/HPF style)
- Thickness, Distance, Offset Y, Colour, End cap
- LPF mode toggle (reverses direction)
- Glow toggle, colour, size, alpha
- Gradient toggle, low/high colour

ARC VALUE WIDTH (centered spreader)
- Thickness, Distance, Offset Y, Colour
- Reveal colour (fades in as value increases)
- End cap

BODY 1 / BODY 2 / BODY 3 (stacked knob bodies)
- Radius, Offset X/Y
- Gradient toggle, top colour, bottom colour, midpoint
- Flat colour
- Outline toggle, colour, alpha, width
- Highlight arc toggle, colour, alpha, width, distance
- Hover Tint toggle, colour, alpha

CAP (top circle of the knob)
- Radius, Offset X/Y
- Gradient toggle, top/bottom colour, midpoint
- Flat colour
- Outline toggle, colour, alpha, width
- Drop shadow alpha, colour, Y offset
- Inner ring toggle, ratio, alpha, colour, width
- Hover Tint toggle, colour, alpha

HASHMARKS OUTSIDE (ticks around the outer edge)
- Major count, start distance, end distance, thickness, colour, alpha
- Minor per gap, start, end, thickness, colour, alpha
- Round caps toggle
- Offset Y

HASHMARKS ON BODY (ticks on the knob body)
- Count, start, end, thickness, colour, alpha
- Round caps toggle
- Full circle toggle (full 360 vs arc-only)
- Rotate with cap toggle (spins with value)
- Offset Y

LABELS (text around the knob)
- Names (comma separated)
- Radius, Size, Colour, Alpha
- Offset X/Y

POINTER (the value indicator)
- Style (line / rect / circle / triangle)
- Start, End, Thickness, Width, Rounding, Offset Y
- Colour
- Outline toggle, colour, width
- Hover Tint toggle, hover colour, hover alpha

STATIC POINTER (a fixed indicator at a chosen angle)
- Style (line / rect / circle / triangle)
- Angle, Start, End, Thickness, Width, Rounding, Offset Y
- Colour, Outline toggle, outline colour, width

POINTER DUAL WIDTH (spreads outward as value increases)
- Start, End, Width, Thickness, Rounding, Offset Y
- Colour

CENTER DOT
- Radius, Offset X/Y
- Gradient toggle, top/bottom colour, midpoint
- Flat colour, alpha
- Outline toggle, gradient toggle, colour(s), alpha, width
- Hover Tint toggle, colour, alpha

CENTER RING
- Radius, Offset X/Y, Thickness
- Gradient toggle, top/bottom colour, midpoint
- Solid colour, alpha

GLOW DOT (small dot that follows the value)
- Radius, Distance, Colour, Alpha
- Halo size, halo alpha
- Follows value toggle

COMPONENT LABEL (text label like "GAIN")
- Text, Placement (top/bottom)
- Offset X/Y, Size, Colour, Alpha
- Font (9 cross-platform fonts)

VALUE TEXT (live numeric readout)
- Offset X/Y, Size, Colour, Alpha
- Decimals, Suffix
- Font (9 cross-platform fonts)

GLOBAL
- LAF Name (used for variable name + downloaded filename)
- Canvas BG colour
- Padding (resize margin)
- Max width
- 4 starter presets: ArcValue, HashValue, AnalogGain, BasicStarter
- Save / Load project (.knob.json)
- Snapshot to PNG
- Export Code / Copy / Wrap in Namespace toggle
- Reset to defaults
- Drag-to-reorder layer list with show/hide toggles

There are a ton of options ready to edit!

Im currently trying to find a place to host this app but I want to release this beta version for you guys to start testing.

Im open to suggestions! This is for us!

Here's the link!:
https://rox-knob-builder-for-hise.netlify.app/

Enjoy!

All Feedback is welcomed and appreciated!

Here are a few extra examples of what it can do:
Very basic examples to show different elements available.

Good Morning! I agree. Here's something I've been doing. Aside from working on my personal plugins, I've been wanting to show my appreciation to the community by designing a set of 3d assets / filmstrips that people can use on their projects.

There are quite a few regulars in here that always get me going when im stuck. I Love it here!

This is just a mockup of one of the kits im working on. All of these assets should be available for anyone to use soon. Dont quote me on "soon". Im sure everyone in here has 10 things going at once lol.

Im still messing around with the faceplate so the actual release might not be exact.

Much Love to the community!
Special Thanks to @Christoph-Hart
and honorable mention to Mr. @d-healey who got me going on all this in the first place!
Im soaking it all in!

Just thought I'd hop on and wish everyone a great day! If you see this, I hope you're doing great!

Freebie for the community.

Here's the script:

namespace LafRealKeyboard
{
	const var FloatingTile1 = Content.getComponent("FloatingTile1");
	const var Laf_RealKeys = Content.createLocalLookAndFeel();

	//! DRAW WHITE NOTE
	Laf_RealKeys.registerFunction("drawWhiteNote", function(g,obj)
	{
		var a = obj.area;
		var WhiteUp = Laf_RealKeys.loadImage("{PROJECT_FOLDER}WHITE KEY - UP 11.png", "WHITE KEY - UP 11.png");
		var WhiteDown = Laf_RealKeys.loadImage("{PROJECT_FOLDER}WHITE KEY - DOWN 11.png", "WHITE KEY - DOWN 11.png");

		if (obj.down)
		{
			g.drawImage("WHITE KEY - DOWN 11.png", a, 0, 0);
			g.setColour(Colours.red);
		}
		if (!obj.down)
		{
			g.drawImage("WHITE KEY - UP 11.png", a, 0, 0);
		}
	});
	Content.getComponent("FloatingTile1").setLocalLookAndFeel(Laf_RealKeys);

	//! DRAW BLACK NOTE
	Laf_RealKeys.registerFunction("drawBlackNote", function(g,obj)
	{
		var a = obj.area;
		var BlackUp = Laf_RealKeys.loadImage("{PROJECT_FOLDER}BLACK KEY - UP 11.png", "BLACK KEY - UP 11.png");
		var BlackDown = Laf_RealKeys.loadImage("{PROJECT_FOLDER}BLACK KEY - DOWN 11.png", "BLACK KEY - DOWN 11.png");

		if (!obj.down)
		{
			g.drawImage("BLACK KEY - UP 11.png", a ,0, 0);
		}
		if (obj.down)
		{
			g.drawImage("BLACK KEY - DOWN 11.png", [a[0], a[1], a[2], a[3] + 10] ,0, 0);
		}
	});
	Content.getComponent("FloatingTile1").setLocalLookAndFeel(Laf_RealKeys);
}

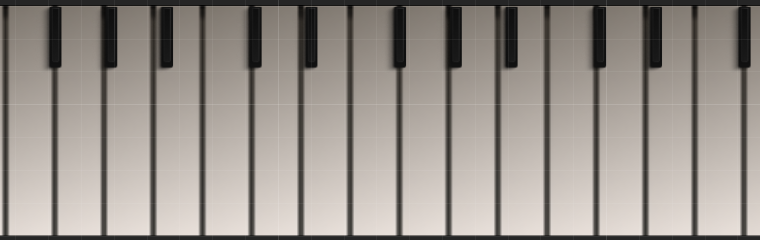

Download these images and add them to your projects 'Images' folder. F5. Enjoy.
FILES---> CUSTOM KEYBOARD IMAGES

I've been struggling with this one for a while and finally got a solid working script! I just wanted to share with the community an easy working template.

Functions:
Save
Delete
Rename
Back
Next
Random
Combobox presets with custom name save

Hope this helps someone down the line!

const var PresetList = Content.getComponent("PresetList");
const var PresetNameToSave = Content.getComponent("PresetNameToSave");
const var SaveOk = Content.getComponent("SaveOk");
const var TableEnvelope1Pro = Synth.getTableProcessor("Table Envelope1");

// File path for saving/loading
const var presetFile = FileSystem.getFolder(FileSystem.Desktop).getChildFile("myFile.json");

// Declare object to hold presets
var AttackTablePresets = {};
var lastRandomPresetName = "";

//------------------------ LOAD existing presets on init ------------------------//

if (presetFile.isFile())
{
	AttackTablePresets = presetFile.loadAsObject();

	// Manually extract keys
	var keyList = [];
	for (k in AttackTablePresets)
		keyList.push(k);

	PresetList.set("items", keyList.join("\n"));
}


//------------------------ SAVE PRESET ------------------------//

inline function onSaveOkControl(component, value)
{
	if (!value)
		return;

	local presetNameNOW = PresetNameToSave.get("text").trim();
	if (presetNameNOW == "")
		return;

	local tableData0 = TableEnvelope1Pro.exportAsBase64(0);

	// Add to object
	AttackTablePresets[presetNameNOW] = tableData0;

	// Save to file
	presetFile.writeObject(AttackTablePresets);

	// Update ComboBox
	local keyList = [];
	for (k in AttackTablePresets)
		keyList.push(k);

	PresetList.set("items", keyList.join("\n"));
	PresetList.setValue(keyList.indexOf(presetNameNOW) + 1);
	PresetNameToSave.set("text", "(Enter Preset Name)");
};

SaveOk.setControlCallback(onSaveOkControl);

//--------------------------COMBOBOX RESTORE TABLE CONTROLS --------------------------//
inline function onPresetListControl(component, value)
{
    if (value <= 0)
        return;

    // Get the selected preset name from the ComboBox using the selected index
    local selectedPresetName = PresetList.getItemText();

    // Look up the table data in the preset object
    local presetData = AttackTablePresets[selectedPresetName];

    // Restore the table if data exists
    if (presetData)
        TableEnvelope1Pro.restoreFromBase64(0, presetData);
};
PresetList.setControlCallback(onPresetListControl);

// ---------------------------DELETE CURRENT PRESET CONTROLS -------------------------------//
const var DeletePresetButton = Content.getComponent("DeletePresetButton");

inline function onDeletePresetButtonControl(component, value)
{
    if (!value)
        return;

    local selectedIndex = PresetList.getValue();
    if (selectedIndex <= 0)
        return;

    // Get preset name
    reg presetNameToDelete = PresetList.getItemText();

    if (!isDefined(AttackTablePresets[presetNameToDelete]))
        return;

    Engine.showYesNoWindow("Delete Preset",
        "Are you sure you want to delete \"" + presetNameToDelete + "\"?",
        function(result) // nested callback
        {
            if (result)  // IF 'YES'
            {
                var newPresets = {};
                for (k in AttackTablePresets)
                {
                    if (k != presetNameToDelete)
                        newPresets[k] = AttackTablePresets[k];
                }

                AttackTablePresets = newPresets;

                presetFile.writeObject(AttackTablePresets);

                var keyList = [];
                for (k in AttackTablePresets)
                    keyList.push(k);

                PresetList.set("items", keyList.join("\n"));
                PresetList.setValue(PresetList.getValue() - 1); // Clear selection
            }
        });
};

DeletePresetButton.setControlCallback(onDeletePresetButtonControl);

//------------------------------------RANDOMIZER BUTTON CONTROLS ------------------------//
const var RandomizePresetButton = Content.getComponent("RandomizePresetButton");

inline function onRandomizePresetButtonControl(component, value)
{
	if (!value)
		return;

	// Collect preset names
	local presetNames = [];
	for (k in AttackTablePresets)
		presetNames.push(k);

	local total = presetNames.length;
	if (total == 0)
		return;

	local randomPresetName = "";
	local tries = 10; // safety cap to avoid infinite loop

	while (tries > 0)
	{
		local i = Math.floor(Math.random() * total);
		randomPresetName = presetNames[i];

		// Stop if the new name is different, or only one preset exists
		if (randomPresetName != lastRandomPresetName || total == 1)
			break;

		tries--;
	}

	// Find index of selected name in ComboBox
	local comboIndex = 0;
	for (i = 0; i < presetNames.length; i++)
	{
		if (presetNames[i] == randomPresetName)
		{
			comboIndex = i + 1;
			break;
		}
	}

	if (comboIndex > 0)
		PresetList.setValue(comboIndex);

	// Load the new preset
	local presetData = AttackTablePresets[randomPresetName];
	if (presetData)
		TableEnvelope1Pro.restoreFromBase64(0, presetData);

	// Store the name to avoid repetition next time
	lastRandomPresetName = randomPresetName;
};

RandomizePresetButton.setControlCallback(onRandomizePresetButtonControl);


//--------------------------BACK BUTTON CONTROLS -------------
const var BackPresetButton = Content.getComponent("BackPresetButton");

inline function onBackPresetButtonControl(component, value)
{
	if (!value)
		return;

	local currentIndex = PresetList.getValue();
	local totalItems = 0;

	for (k in AttackTablePresets)
		totalItems++;

	// Wrap to last if we're at the first
	if (currentIndex <= 1)
		currentIndex = totalItems + 1;

	local newIndex = currentIndex - 1;
	PresetList.setValue(newIndex);

	local presetName = PresetList.getItemText();
	local presetData = AttackTablePresets[presetName];

	if (presetData)
		TableEnvelope1Pro.restoreFromBase64(0, presetData);
};
BackPresetButton.setControlCallback(onBackPresetButtonControl);


//-------------------------------NEXT BUTTON CONTROLS ---------------

const var NextPresetButton = Content.getComponent("NextPresetButton");

inline function onNextPresetButtonControl(component, value)
{
	if (!value)
		return;

	local currentIndex = PresetList.getValue();
	local totalItems = 0;

	for (k in AttackTablePresets)
		totalItems++;

	// Wrap to first if we're at the last
	if (currentIndex >= totalItems)
		currentIndex = 0;

	local newIndex = currentIndex + 1;
	PresetList.setValue(newIndex);

	local presetName = PresetList.getItemText();
	local presetData = AttackTablePresets[presetName];

	if (presetData)
		TableEnvelope1Pro.restoreFromBase64(0, presetData);
};
NextPresetButton.setControlCallback(onNextPresetButtonControl);

// -------------------------RENAME PRESET BUTTON CONTROLS-----------------------
const var RenamePresetButton = Content.getComponent("RenamePresetButton");

inline function onRenamePresetButtonControl(component, value)
{
	if (!value)
		return;

	local selectedIndex = PresetList.getValue();
	if (selectedIndex <= 0)
		return;

	local oldName = PresetList.getItemText();
	local newName = PresetNameToSave.get("text").trim();

	if (newName == "" || newName == oldName)
		return;

	// If new name already exists, do nothing (or optionally warn)
	if (isDefined(AttackTablePresets[newName]))
	{
		Console.print("A preset with that name already exists.");
		return;
	}

	// Copy data to new name
	AttackTablePresets[newName] = AttackTablePresets[oldName];

	// Rebuild the object without the old key
	local newPresets = {};
	for (k in AttackTablePresets)
	{
		if (k != oldName)
			newPresets[k] = AttackTablePresets[k];
	}

	AttackTablePresets = newPresets;

	// Save updated object to file
	presetFile.writeObject(AttackTablePresets);

	// Update ComboBox
	local keyList = [];
	for (k in AttackTablePresets)
		keyList.push(k);

	PresetList.set("items", keyList.join("\n"));

	// Select the renamed preset
	PresetList.setValue(keyList.indexOf(newName) + 1);
};
RenamePresetButton.setControlCallback(onRenamePresetButtonControl);

I had the help of @d-healey and @Lindon with making this and a few extra helps from gpt.

Bless!

• ROX

PS> if anybody wants to make improvements and toss it back, have at it! Together we can make the ULtimate Table preset menu. haha.

@rglides SAMPLE:

*HISE Logo for fun. Dont sue me. lol

Ok just sharing my first 3d Knob that I made! This is gonna be fun.

@lalalandsynth how do you get your shadows to show up in the animation? I can seem to get mine to show up on the transparent areas.

I hope some of you have been finding the 'Knob Designer' app I made useful.
By popular request! (me and a few people haha).....

Presenting...

Rox Button Designer For HISE!!

Exports LAF functions and PNG Filmstrips

2 separate modes for 2-state and 6-state button projects.

My Favorite Feature!

When using SVG's the app automatically parses a hise number path without you having to touch the built in converter at all.

If you've tried the knob builder app, you can expect this one to be just as feature packed.
I wont bore you with verbage.

Check it out!
https://rox-button-designer-for-hise.netlify.app/

**Im currently working on a preset library so i'll link that in an update soon.

@Chazrox man I really figured this one out on my own and im proud of myself. lol

I started digging around and I opened the corresponding .xml file for the project and noticed in one of the lines that it was pointing to a default preset that no longer existed in the expected folder it was supposed to be in. Turns out I DID do something, which was move that folder that the preset was supposed to be in. I deleted that line and everything opened up as normal. fweeww! Sweats! haha.

this thing...

@lalalandsynth its all brand new to me. Just passing along the info. Im sure there's a fix.

@lalalandsynth I gave your screenshot to Claude:

Short version: the number you hand a JUCE/HISE Font is not the same quantity Figma calls "font size," and HISE's drawText doesn't lay glyphs out the same way Figma does. Those are two separate problems, and your three screenshots are actually showing both of them at once.

Why the size number is different (the 16-vs-12 clue)

Figma's font size is the em / point size — the classic typographic size. JUCE's plain Font(float) constructor does not take that. Historically it takes the font's total height (ascent + descent), which for most typefaces is larger than the em by roughly 1.2–1.35×. Your own result nails it: 16 in HISE ≈ 12 in Figma is a 1.333 ratio, which is exactly that height-to-em factor for your font. So when you type "12" into a HISE paint routine, you're really asking for a glyph whose height is 12px, which is a visibly bigger letter than a 12px-em Figma glyph.

The fix is to size by point height instead of raw height:

Newer JUCE / HISE: Font(FontOptions().withPointHeight(12.0f)), or someFont.withPointHeight(12.0f).
If you only have the old API, multiply your Figma px by the font's em-to-height factor (≈1.33 here) — but withPointHeight is the correct, font-independent way.

That single change is why your third screenshot ("make a text label and set it to 16") looks better and different: a real Label/TextLayout path applies proper metrics, whereas your hand-rolled paint routine was fighting the height/em confusion.

Why it drifts in the middle even when the ends line up

The accumulating spread in screenshot 1 (matches at the left, red creeps wider across the word) and the "fits end-to-end but wrong in the middle" in screenshot 2 are a layout/kerning problem, not a size problem. When you scaled the whole string to make the endpoints match, you corrected the total width but not the individual glyph advances — so every interior letter sits at a slightly wrong x. That happens because:

Your paint routine is almost certainly stepping glyph-by-glyph and summing advance widths (or letting JUCE's older glyph path do it) with no kerning / no HarfBuzz shaping, while Figma shapes the run with full kerning and fractional positioning. The per-pair differences add up left-to-right, which is exactly the linear drift you see.
Subpixel rounding: if positions are being rounded to integer pixels per glyph, the error accumulates too.

Fix: don't advance glyphs yourself. Use a juce::GlyphArrangement / TextLayout (or Label / drawText) so the same shaping and kerning is applied, rather than a manual per-character loop. In JUCE 8 the text backend switched to HarfBuzz shaping, which gets much closer to what a design tool does — worth knowing if HISE's JUCE version matters here.

The thing that's easy to miss: is HISE even using your font?

You labeled red as "paint routine font (not label)." If the exact TTF isn't loaded as a typeface and you're selecting it by name, JUCE will silently fall back to a default face with completely different metrics — which would also produce width drift and a size mismatch. Make sure the paint routine is drawing with the same embedded typeface (loaded via the loaded font / Typeface::createSystemTypefaceFor on the actual TTF bytes), not just Font("SomeName", ...). A name lookup that fails is the single most common cause of "my custom font is subtly wrong in JUCE."

What I'd do, in order

Confirm the paint routine is drawing the actual embedded TTF, not a name-matched fallback.
Switch sizing to withPointHeight() so the HISE number equals the Figma px number.
Replace any manual glyph-advance loop with GlyphArrangement/drawText so kerning and fractional positioning match.

Do those three and the red should sit on the black without the mid-word drift — and you won't need the 1.33 fudge anymore.

If you paste the actual HISE paint routine (the LAF/drawText snippet and how the font is created/loaded), I can point at the exact line that's causing each effect.

@HISEnberg Im am excited to see the Asset Store! Im very excited to see what Christoph has been doing for HISE 5! The game is definitely changing. I can see that just from watching for the past 2 years alone. Level of entry is so low and the advantages are shifting to more of a meta stand point in any production stream.

@dannytaurus Maybe ai work flow tips specific to HISE? This should also mean more sharing of completed projects hopefully!

@lalalandsynth I wish a HAD a friend that could teach me this stuff. I have to rely on youtube and Claude as a translator. lol

@gonzalo Yerrr!

@digi @lalalandsynth lol I included the 'Control Token' feature so you can mess around with it and see if its something we should keep. See at the bottom of every 'ARC' layer there is a 'Token Control' toggle. Toggle that one and you can choose between controlling the arc with either a 'GlobalCable' or by connecting it to the components native 'Mod' values. In theory it should work, but I suck at wiring up the mod matrix so I could use some help testing this out. I would not use the GlobalCable mode just yet. I think I have to nail down some of the Hise code gen for this part. Try the 'Native' mode and hook up the knob to a mod source in HISE. I got it to "WORK" as much as seeing the mod source value move the arc knob properly but I still dont know how this will do in actual use case. Lmk what you guys think about that one.

@ustk Can you please give it a go if you have a minute? I know you're pretty well versed in using modValues.

(at the bottom of each ARC layer properties)

The forum has definitely been less active since everyone has found their agentic work flows.

What does your plugin do specifically? Does this group sample maps or something? I have Waves 'COSMOS', this seems like similar work flow.

@dannytaurus Hey I need that! lol

A couple updates:

Expandable left column:

Brushed Metal (ish) parameters on "CAP" layer element:

You can now delete all layers and add them back as you please.
Right Click to choose from optional layer elements to load into layers list.
Right Click also offers 'Duplicate' option.

...Plus a few aesthetic updates.

Hope you're enjoying the app.

Fresh Link:
https://rox-knob-builder-for-hise.netlify.app/
