How can I achieve this pitch mod?

[d.healey]

@dannytaurus Table envelope

[dannytaurus]

@d-healey I can't get a Table Envelope to go up on the attack and down on the release.

Can you give a minimal example screenshot?

[dannytaurus]

EDIT: Actually, I can make it go up on the attack and down on the release but I can't stop it jumping an octave at the note off point.

[d.healey]

@dannytaurus

HiseSnippet 1005.3oc0WE0aaaCDlJ1rX1YqaYnnqOpWFP5VQgsiiSL5C0IN1cFqNwHxsauUvPQESDIRMJJuYLLrm2+p8SX+T5+fsiR1wRwtoNtoKa5AAc2wi7S28cGIGnjTVTjTgrJObRHCY8oXmIB8n1iHbAp2QHq6i6ShzLkcppCmDRhhXtHKqBuvnvpTQTxyae9gDehfxlqBgdsjSYujGv0y0Nn02y886RbYC4AYFc8V8nRQaouLFvSAbETHgdA4b1wDyv1.i9NRzHj02f2s1Nz5t64Vq1tMaPIMXM8HddU2wsd8F62r5NMI02uAqxtHq60wkqkJGMQyhfI8Po6DmQxeVjt.ulGwOymYDphbfUNUMp8Htu6fYAmHDxBOXdnpPZn5A39bW9k5mGx9hDC1y8HaPyZiqCRUuAPxJCjJlBosvNTEOTO2hAOah6IfLnGAxMYgR5XQV+ItsDFfP+z.xErtJP3RG1tQkJOwFd83m4EKnZtTXKEGK0rSDa+3x+Z4Rk+sx1W0jm2RsYVFkz2moVpYCcPccNtsHN3Ll5I1iI9wrKGH76mOlduUKlRS+qyLPonmfqOIjMUtqz20DqLeuXF.MMrAe8pdGQzDSRYpNXbgLklafi0QrwPYPZJpD9HVzEZYHTHrP9CXNR2XehNOcxTnM0.DOxkCMIJQDWOIag3MfiU4Z4XqJD2BOfqoiVNF2XIXDhTeLv3zJyOC2wyiQ0yAXQb2ebcKCW8k+9oK+lXGtfkzGMYweXhr8OPFyreASvTlfW0qoU5espsRCW4VomP0vxOTQDQgxnbSrCKfOTJLQg4JeUDzHf8SmZxlY02VRTK0zaedW3mbo93PzwpDZwAAxXgNGMnP97PwUqzMeEQlwuj9jEuCZce6TVcGV4ma2kRyvnCOHzm0QLl4Cs2Rv3WB8y7Hw95YZySr6KExvQRAmlMqeJSq3meNSkE6K8G5.sFNDvbMOn0oLeFIKC9OZ8Rf4QTPbhslwha9NsKMe8HbJbsMUi1eH4shqVd68r+zsQ26Beb6dmK1tYJH+b7PxYWglsUpN6OXV1g7PoOQ8N1WZABWqeeABGnJcPIHJYeequFWq9Su7oYa303SfWdeqQduTYzzY5c52dWwujGvuaOl7FqHk3qlxj++EQ9Q3YQ3+yA66hSlbpLVyEm2m.kA+BbEliiCbfCDPYvpKDLeXxwVaX1TOUthQN8DAB2Dg+FdlZrpQ1ZpwpyL9uxZDPnJ4ano2Avvh+jDMv+sH4lgkfqnBx1UQI2KHaKf.X272Po4mpEbr1553Nqqi0WWG2cccrw553dqqi6+9czbXqCh0xfzxTDp+fNoMFs5HLcISpHP+C.4vhmC

[dannytaurus]

@d-healey Thanks for the snippet. It's pretty much the same as how I did it. But there's a pitch jump when you release the key. Does that happen for you too?

I'm using the HISE Controller to test it but I can't see why that would make a difference.

CleanShot 2025-06-08 at 16.16.12

Video uploaded to CleanShot Cloud

(share.cleanshot.com)

[d.healey]

This post is deleted!

[dannytaurus]

@d-healey Figured it out.

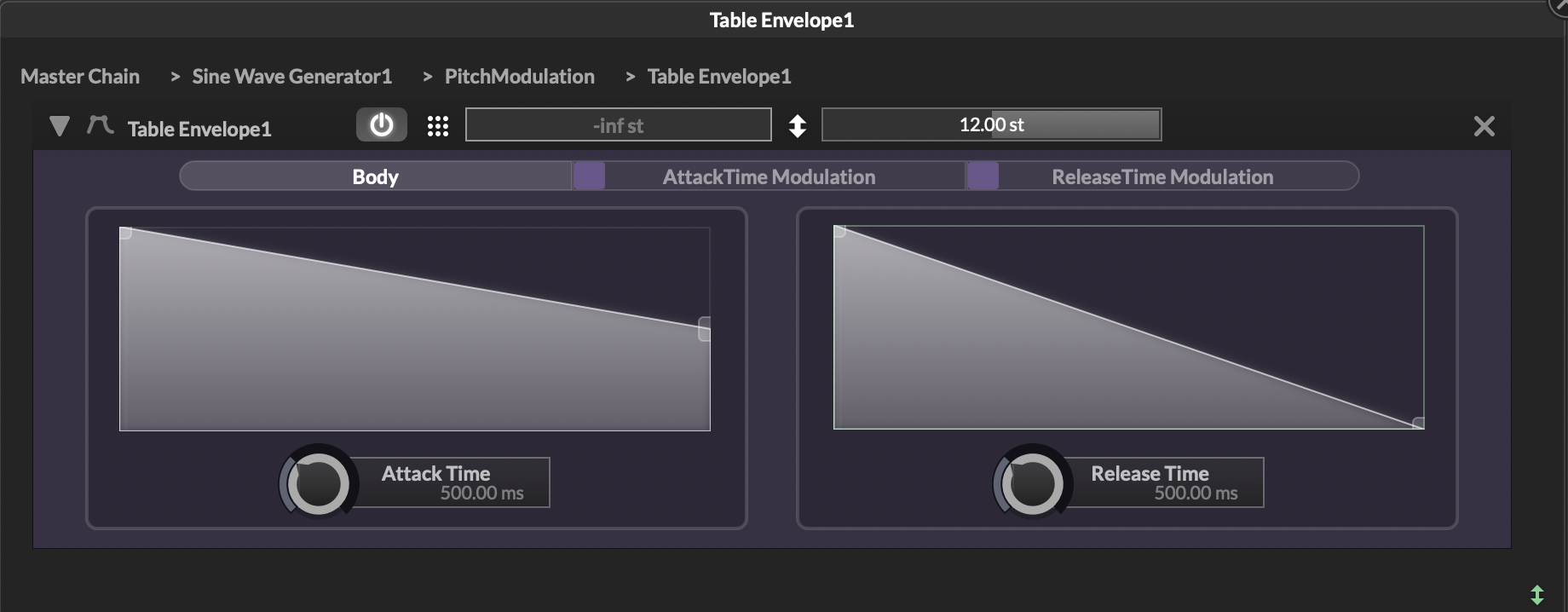

Seems you have to set the Attack from +12st to 0st, then the Release from +12st to -12st.

[d.healey]

@dannytaurus Aha that's it! Nice.

[dannytaurus]

@d-healey Thanks for your help, as always!

[Christoph Hart]

@dannytaurus a bipolar ahdsr with the sustain set to -6dB will do the same.

[dannytaurus]

@Christoph-Hart That would be perfect if I could adjust the release curve - is that possible?

[dannytaurus]

@Christoph-Hart Nevermind, found this post https://forum.hise.audio/topic/1259/ahdsr-release-curve?_=1749402810437

Still, would be lovely to have release curve for AHDSR, if it's doable.
