@MysticForgeRider little bump for this one @d-healey. I still have this issue:

@d-healey call me an absolute noob, but where do I put that value?

@Chazrox that fixed a lot, thank you!

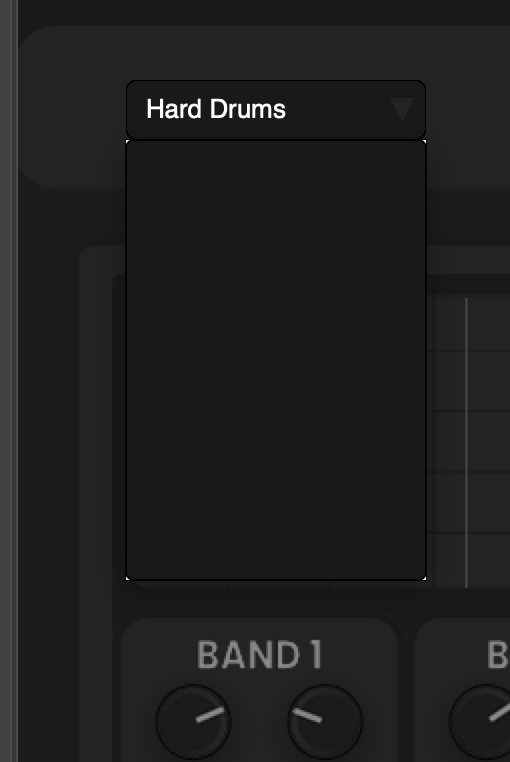

Now only to fix the list showing up, it keeps it LAF, but doesn't show anything when selected.

Hey guys!

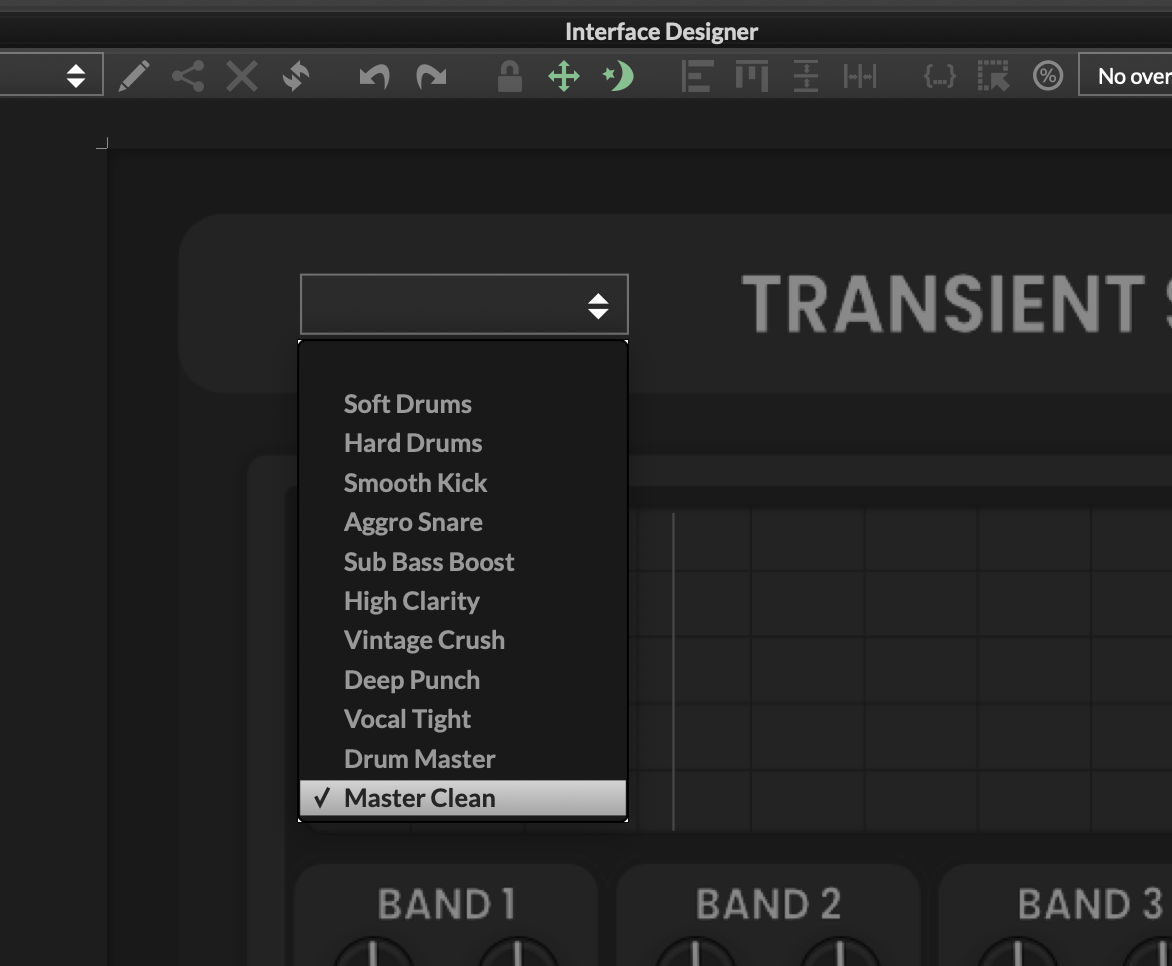

I've got a problem (See screenshots), I've got a combobox going with custom LAF, and whenever I select a preset, the text within the box, and the LAF disappears, any ideas on how to fix this?

const var PresetDropdown = Content.getComponent("PresetDropdown");

// 2) Position & size (adjust x/y to sit in your top‐left corner; width/height as desired)
PresetDropdown.set("x",		 88);
PresetDropdown.set("y",		 57);
PresetDropdown.set("width",  150);
PresetDropdown.set("height", 30);

// 3) Populate with 12 preset names (each on its own line):
PresetDropdown.set("items",

ITEMS...


const var ddCombo     = Content.getComponent("PresetDropdown");
const var lafDropdown = Content.createLocalLookAndFeel();

// DRAW CLOSED DROPDOWN
lafDropdown.registerFunction("drawComboBox", function(g, obj)
{
    var a               = obj.area;
    var radius          = 6.0;            // corner radius
    var outlineThickness= 1.0;            // border thickness

    // 1) background
    g.setColour(0xFF191919); // dark grey
    g.fillRoundedRectangle(a, radius);

    // 2) outline
    g.setColour(0xFF000000); // black
    g.drawRoundedRectangle(a, radius, outlineThickness);

    // 3) displayed text
    g.setColour(obj.textColour);
    g.setFont("Roboto-Medium", 13.0);
    g.drawAlignedText(obj.text,
                      [ a[0] + 10, a[1], a[2] - 20, a[3] ],
                      "left");

    // 4) small arrow
    var arrowSize = a[3] * 0.4;                 // 40% of height
    var px        = a[0] + a[2] - arrowSize - 6;
    var py        = a[1] + (a[3] - arrowSize) * 0.5;
    g.setColour(obj.itemColour1);
    g.fillTriangle([ px, py, arrowSize, arrowSize ], Math.PI);
});

// DRAW POPUP BACKGROUND
lafDropdown.registerFunction("drawPopupMenuBackground", function(g, obj)
{
    g.setColour(0xFF191919);
    g.fillRoundedRectangle([0, 0, obj.width, obj.height], 4.0);
    g.setColour(0xFF000000);
    g.drawRoundedRectangle([0, 0, obj.width, obj.height], 4.0, 1.0);
});

// DRAW EACH POPUP ITEM (text + highlight)
lafDropdown.registerFunction("drawPopupMenuItem", function(g, obj)
{
    var a = obj.area;
    if (obj.isSeparator)
    {
        g.setColour(obj.textColour);
        g.drawLine(a[0] + 5, a[1] + a[3]/2,
                   a[0] + a[2] - 5, a[1] + a[3]/2, 1);
    }
    else
    {
        if (obj.isHighlighted)
        {
            g.setColour(Colours.darkgrey);
            g.fillRect(a);
        }
        g.setColour(obj.textColour);
        g.setFont("Roboto", 12.0);
        g.drawAlignedText(obj.text, a, "center");
    }
});

ddCombo.setLocalLookAndFeel(lafDropdown);

@Chazrox My bad, im working with the Analyser, not the Waveform.

Hey guys!

I've been looking at a FloatingTile with the Waveform option, but whenever I try to edit the Index line, to 2, HISE instantly crashes..
Any ideas how to fix this?

Cheers!

hi guys! The idiot with little to no knowledge of programmer: I've got everything running now, and did a test with a SNIPPET that came out as expected: good.

Now I'm trying it with my own plugin, and I'm getting this error while building through Xcode:
REGISTER_STATIC_DSP_LIBRARIES()
{
REGISTER_STATIC_DSP_FACTORY(hise::HiseCoreDspFactory);
REGISTER_STATIC_DSP_FACTORY(duckverbDSP);
}

/Users/Bodi/Documents/HISE Projects/DuckVerb by SoundSloth/Binaries/Source/Plugin.cpp:18:30 Use of undeclared identifier 'duckverbDSP'

You got any idea on how to fix this issue?

@Christoph-Hart not giving an error anymore, and it's now stuck on the 50% 'compiling fx plugin....'.

That's progress, now the waiting game on my poor old macbook has begon! Thank you ;)

@MysticForgeRider same error so it seems.. it's giving headaches because i'm trying for a couple of days now to just export a test for my plugin.

@Christoph-Hart can you expand on that UB version? I've just re-installed xcbeautify, this time the correct version (oops).

Trying an new compile now :)
