MAJOR UPDATE // NEW: Online Knob Builder for HISE!! // Factory/User Preset System

[Lindon]

@Chazrox said in UPDATE // NEW: Online Knob Builder for HISE!! // Added: InnerShadows, Angled DropShadows, GradientOutlines.:

@Lindon Thanks!

@Lindon said in UPDATE // NEW: Online Knob Builder for HISE!! // Added: InnerShadows, Angled DropShadows, GradientOutlines.:

truck load more examples....

Presets?

yes presets

[digi]

Is it possible to somehow do stepped knobs?

[Chazrox]

@digi You should be able to adjust step size in script. I cant set step size in LAF script. Hise handles this with the component property editor by default, other than that you can script the stepSize parameter. The knob should follow the step size you set.

If you want a knob with 10 steps, set your knob min/max to 0-9 then set your knobs step size to 1.0. That will give you 10 equal stops across the knobs full range.

[digi]

@Chazrox Thanks.

Any chance we could change the angle of the gradient on the body & skirt layers?
Eg. For the inner circle here, I'd like the gradient to run from dark at 10 o'clock to light at 4 o'clock.
Right now I can only do top to bottom. Thanks.

[ulrik]

@Chazrox You're doing a great job with this, thanks a lot for sharing it!

[Chazrox]

@ulrik Appreciate that brotha! Im actually having a lot of fun making this and im so happy that its actually useful!

[Chazrox]

@digi I can add this. 'Gradient Rotation offset'. I'll push this when I get home tonight.

[David Healey]

Been playing around with it a little bit this evening.

I noticed you have this for the knob value (I'm using the first preset design)

g.drawAlignedText(vtVal + " db", vtArea, "centred");

It might be better to use obj.valueAsText then it will be rounded correctly and have the correct suffix.

[Chazrox]

@David-Healey Ahh. Thats a good one. I have NEVER used that one before. lol smh.
Thanks!

[Chazrox]

I just pushed a major update!

26 New Presets!
We now have 'Factory Presets' and 'User Presets' drop down menus.

The 'Factory Presets' menu is populated by a github folder that I will be adding more knobs to as time goes on. Hopefully I can offer a good variety of knobs to start you off with some cool looks.

The 'User Preset' saves .json files of your knobs locally and recalls them on app launch.

Here's a short list of other updates:

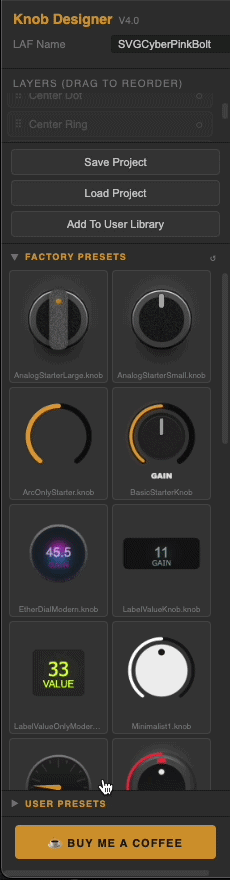

Preset Library

Factory preset browser with live knob thumbnails
Personal user preset library — save, browse and load your own designs
One-click preset loading

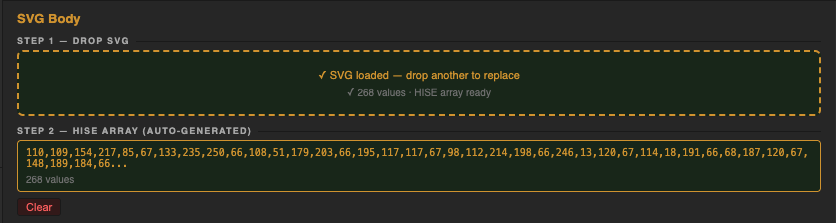

SVG Icon Integration

Drop any SVG file directly onto the knob — auto-converts to HISE instantly
No manual copy-pasting of path arrays

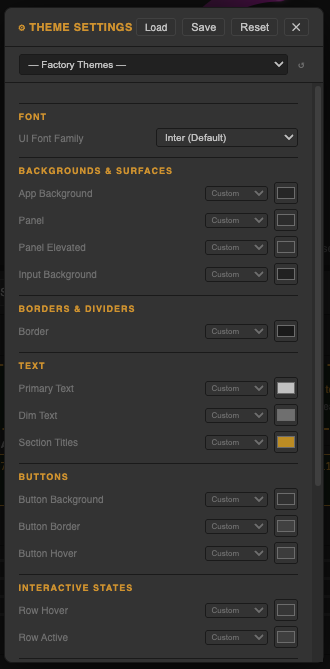

Theme System

Full UI theme editor — customise every colour, font and control size
Load factory themes from the cloud
Save and share your own themes

Colour Workflow

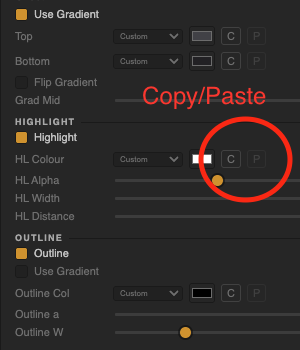

Copy/paste colours between any pickers across the entire design
HISE colour slot assignment on every colour (bgColour, itemColour1, itemColour2, textColour)
