Build Failed - Missing JUCE 'modules' ?

[Chazrox]

@David-Healey I made a fresh build of HISE, created a new project, created a dsp network and set 'allow compilation', re-saved .xml file, still same error.

[HISEnberg]

@Chazrox You are trying with JUCE 6 right? The JUCE 8 integration is still very buggy so I wouldn't recommend building with JUCE 8.

[Chazrox]

@HISEnberg yes. I only have JUCE 6.1.3 and that is the one showing in HISE about section also so that seems ok per your last suggestion.

I had Claude read the crash report and it said this:

No idea..

[HISEnberg]

@Chazrox Hmmm. Can you attach both a snippet with the scriptnode network, then also post the .xml from the DspNetworks/Networks?

[Chazrox]

@HISEnberg sure!

HiseSnippet 1125.3ocuW0saaaCElxNzKwsCXEqO.9xzgr.IGG+C1EqwNIaFawwHxKX2EPSQGSXJRAI5j3Vr62i0dj1av1ghxVxMNscFcQAHPm+3467GOxCiUTVRhJF4TczhHFx4kX+ER8zdSIbIp+oHmuAOfceOUXDWvFwRzntKhHIIr.jiS4exnkyd6fRe96erKQPjTVNKD5ZEmx9UdHWmyM5s+BWHNmDvFwCKnci21mpj8TB0b.QkwtnHBcF4V1.hQsRXzOSRlhb9Nb6ltMCXjlSpGzgRNdRi5dsaMNvqQv31L531sNtUP6ljlHmJmEv0pXeMQyRPN6zUErvep5do0AWyS3iELCgGxG7rk84JQfIDMbQ8lxEACWlpRPvoLLOwU1l3dM9Bd.eE+hIPifZ4VTLA5TZc3UdM34UDdtEf2FfjSAHsiERuB6Si4Q5bIF77BbeolEOg.0ohPwpKx4uv8TfBR8ggjYryiAhUFreSW2CpA+6M+vj4Rplqj0TxAJM6R49uo56qtW0+nZsOTzjIaTlwMwJgfEuQwlVi3Olg6KmGNlEePs6Hh4rUJBg+54T7SmSKVxo1ntfhJYeIWeYDS9TMBnrTE71u0+ThlXJDY7.8hXwZtABNmxtCFCrkk8vmxRloUQHziqYP2hJXtfnWuExLnkI.xAqU2LEGYBWun3f3Wr9pOWH9J7PtlNcyXrzFvHjo9+.iYSieM9rISXTcN.2Ae9u+7M5UMazC7oclyRV6CvvxYt+Dm2eGEyhHwrQpgBxh8SHgQB1U.DOn1XghNym+N1iGJhrHnqQi8oSIRISjrMyNU9rSJde7ZxUp4Zt71KH5X9CvP3f4g9v05TVuLzA7bJYFgrztFZSagOSFjR7OvSlPOCsSlPukBKL8MfouWEOKsZj8NxYWapOIMIeyjGPmHDprcY1dTaLwhSRI9Jr6gveV0FpDKhlpjbpoPks.LCNmDplCtMK.x646tr.sLVf0UiHbgYDvedBbQRvkRe3bR2QZZAGnBf2pbNgBI8ECI5olQIyUQPeKK9P5p92hwQdKjI4aWNVTt4TWtE0BD.+glLkYGpSYibapx5dy4WAeqwUqgjW.HIlcXpfM4yLa9DtqzPRLnNrBw3yxqnfBzEb40lFP3U7264ZR9WPdHiE1TNP9ZVjMk9ZfFzI8wqQGWOulPO3L18VLib9V7wG1nd85sba0pQ6FdG41AYCszuSYD6A8HU5gCMN2A2Mavf41XJeLSfVysmxlPlKzqwCsYnaEli6cwFT9eC5FENx0y8HPgNcZ2nSKWuk2bDpT5ovnzSD.UvoeDUlyqfq+X3mwD87m5eI9JVBKCGeAJ.46TKDMYq.VII8BYCErtojEE8St1HkRV4EXzsqRMKjjdqw1s9943NtPBMVcC0dssI31MkCLHISmA2CeggtlG5NafkufMD9tyanz0OpGYX8s0vi1VCarsFd71ZXys0vVaqgs+zFZ9YAmLWqBs6hfEICOKsIzw4LIA1xl9IBn+EfnLALN

.xml file:

script_fx.xml

[HISEnberg]

@Chazrox said in Build Failed - Missing JUCE 'modules' ?:

script_fx.xml

So I used your snippet and saved it to my project. The result is almost the exact same:

<?xml version="1.0" encoding="UTF-8"?>

<Network ID="script_fx" AllowCompilation="1" Version="0.0.0">
  <Node FactoryPath="container.chain" ID="script_fx" Bypassed="0" Name="script_fx">
    <Nodes>
      <Node ID="gain" FactoryPath="core.gain" Bypassed="0" Name="gain">
        <Parameters>
          <Parameter MinValue="-100.0" MaxValue="0.0" StepSize="0.1000000014901161"
                     SkewFactor="5.422270774841309" ID="Gain" TextToValueConverter="Decibel"
                     Value="0.0"/>
          <Parameter MinValue="0.0" MaxValue="1000.0" StepSize="0.1000000014901161"
                     SkewFactor="0.3010300099849701" ID="Smoothing" TextToValueConverter="Time"
                     Value="20.0"/>
          <Parameter MinValue="-100.0" MaxValue="0.0" StepSize="0.1000000014901161"
                     SkewFactor="5.422270774841309" ID="ResetValue" TextToValueConverter="Decibel"
                     Value="0.0"/>
        </Parameters>
      </Node>
    </Nodes>
    <Parameters/>
  </Node>
</Network>

But yours is missing the formatting version: <?xml version="1.0" encoding="UTF-8"?>

Why I do not know!

[Chazrox]

@HISEnberg Ok great! Thats good news to me. lol At least it seems we're getting closer to the cause. Thank you for trying that!

[Chazrox]

I didnt wanna tag you @Christoph-Hart but it seems its getting a little weird on this one. Any insight?

I've mentioned above but just wanted to reiterate that i've been trying to solve this for about a year now and have no clue what it can be. I've tried fresh installs and everything else suggested to me so far. I suspect its something specific to my system, not your fault, but Im not experienced enough to hunt this down.

[HISEnberg]

@Chazrox Yes, maybe just double check. I'm not sure this is the case or if because I am launching the file you sent from the web.

[Chazrox]

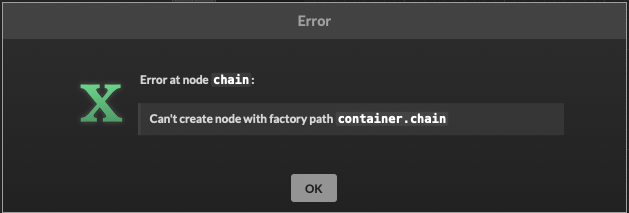

@HISEnberg So thats why I keep getting the "cant compile: chain" as if its an empty node?....hmmm.

[HISEnberg]

@Chazrox Quite possibly. You could launch the xml in a code editor. Copy and paste the version I sent then try to compile again.

[Chazrox]

@HISEnberg just tried that. Still this error.

[Chazrox]

I really appreciate all the help on this from you guys because Im out of my league at this point.

[HISEnberg]

@Chazrox Yea sorry I couldn't be more helpful, it seems like my initial suspicions were wrong here.

Another thing to try, I notice your main folder is called "HISE Projects". Sometimes a space like that can throw the compiler off (a better name is just HISEProjects, no space). This probably isn't the issue but worth trying.

When you hit that compile to dll button in HISE, there is a bash script that runs which sets up projucer and creates an xcode project, then compiles the dll. It's in DspNetworks/Binaries/batchCompileOSX.sh

For me it looks like this:

#!/bin/bash
PATH="/usr/local/bin:$PATH"
chmod +x "/Users/ernest/Github/HISE/JUCE/Projucer/Projucer.app/Contents/MacOS/Projucer"
cd "`dirname "$0"`"
"/Users/ernest/Github/HISE/JUCE/Projucer/Projucer.app/Contents/MacOS/Projucer" --resave AutogeneratedProject.jucer

set -o pipefail
echo Compiling  DeleteMe ...
xcodebuild -project "Builds/MacOSX/DeleteMe.xcodeproj" -configuration "Release" -jobs "8" | "/Users/ernest/Github/HISE/tools/Projucer/xcbeautify"

But it sounds like whatever issue you are having fails before this key file is ever even generated.
