Phase offset not working - when retriggered by DAW playback?

[Straticah]

@dannytaurus hm interesting, the goal is to have it on the master/filter and retrig on DAW playback (like it does now) - unrelated to any MIDI input.

If it works on note input thats cool, but its on the master intentionally.

[dannytaurus]

@Straticah There was a bug using LFO in the Master Chain. I don't know if the fix has been merged yet. Might be related.

EDIT: here it is: https://github.com/christophhart/HISE/pull/891

[Straticah]

@dannytaurus i tried your approach and for me its not working in a synth either is it for you using the snippet? Then it might be that my HISE version is too old and this bug is fixed.

HiseSnippet 1340.3oc2XEzbSaDEdUr2L0l1TflggdSSldHzRYhSBIP6ALwIl5owIlXCzN8.yZomr2IR6pJsJAOLbu2J+P5OhdrG6Og9Sfa8X5akrsjBlDiKv.3CZ76s6S629deu2aW0JPZAggx.hQ4NC7AhwmRaOPn5WqOiKHM1lXr.sIKTAAlIp1ZfOKLDrIFFEtmVgQohj3eu3NawbYBKHUEg7PI2B1k6wUoZaU8G4tt0Y1PGtWlYud0FVRQMoqLBwSA5JDel0grdvdL8zliR9AVXehwWSgtr0cbVc0MVekMXvsVq6pUrbfta.aZcq0rtc2M2bU6tN2DMZ9cr4JYPaESAgDihaIsGztu7XQxB7PdHuqKnEpPZiqbh55RWa8VT+eRs9bW6VibTgDhAsUpaqPhaaQZStMer9T22EiGvL0hrNPi4xCuB4fWkWE7l.jLx.ohIP5Rz1VAbeU5HZ7bAZCAFMcXXbJKTRlKw3Oo0j3DDpa3wNDpGfBiMX4MVYkqahOt126DIrTbovTJ1Spf8EKesxOsboxOqr4oGxwYhioWl.oqKDLwg0TifyxvkEQdcgfqadDyMBFOQb6m2mN+z4SsR10YlnTzPvU66CCkSIEUlPDfLzsg+6AM1loX5fxPc377g.EWCGisgivThjPTI51P3gJoe7b87kB8av3BpgbpjfRcWISwE85vQXyQD74zrppPdRZNzOWcPp.u5wbaElwPMdtAgzG385qzR+UJdGAjVtREFlIc6MJArz7iRh4JvKU6ImbxukW6pCUusVc7d23.5SKaZtzXOTC6k9Nyk1s99lMk1QtLL.UYoqqmRCgM7DbvusRrH5kckG+HYvggX1OfC3vbCgxOCqa7RTbL4ZzaKaFmttzvAPJSNZtlKKB4pAYqac5zvhuZJyJSrJwDIDSIbuDsEWY0ex3ctIfWjX81FuCKp8Yzcbb.KUJXKRq+SmYErhSW11zCkERfxEns4BHt0TLPtRrr4iXGAl2CDPPLi5L5N82Sa2I+ot6z9VJb46DvDg9xvbu31fGuClMGlU4CBw5ovudfNJmUeMIKXhC8h6TG2jSzl1LUTPLc4tdxHgJG8nP9XBc5hI4yZxL+8OBBNhCGeNcEK91pq36zzw++UOJLcv8bZhWZDFay87cgcDGAtXWjXLdYrsgCKxUMRadheSoP52WJ3VYYEG.p.dudPPVrOwMzcUJ7bWoZVr5AfKvxxv+pp6hLSV.5mfYzW75eflIFutJMAtl5rUyONp5W3i9p9SK8+xzVR2AIj45bW8ATz.pDMQ3rJ3SH5BmQfvZjWr5+9GOu58yRAxSeuZ06GwbOkWeKtuzkELUQjYmsWbJoMWgNdS81hqOiArKlfZJEOi2vBo4Os24CxSGuRBhXi3Fog0p+dUcOeGYf2vStN17cgd3Bk01N.djZ7LCVYmVaOoT0O9ryYauuX0ckR+cDLzMXmc9s5iU9vKwDBYZx9O2Q+Z6HStZbMWY15kXY0dBY.jbwnbc5iBURuQaf3qz1VA9IGY9Wnar9MveNei94sqgOVa+2LxuAYpyMkL0uHN7ONNqIBumWRNAw4xuduuIhtj2GNM89R5vpowd4Obv8Bz6+d.XOPFouxeSFdNN7F+z8h7Zi2EwBPfJDfq9j9FyoqxjHuhVN4xHB6XA7J5mLbvJZYigCVYzfuSVCOlUf7wVIeEGcIkOIVCtuEwemuRzlZYyJj3urS15md3kFdrkU9W0KY3pypgqMqFt9rZ3MmUC2XVMbyY0vac9FpuS2civNbI4IDRyV6jzayXbiUiBj+C7gOzmI

[dannytaurus]

@Straticah You have a 1000ms fade-in in your snippet. Change it to 0ms and you should see the phase works as expected.

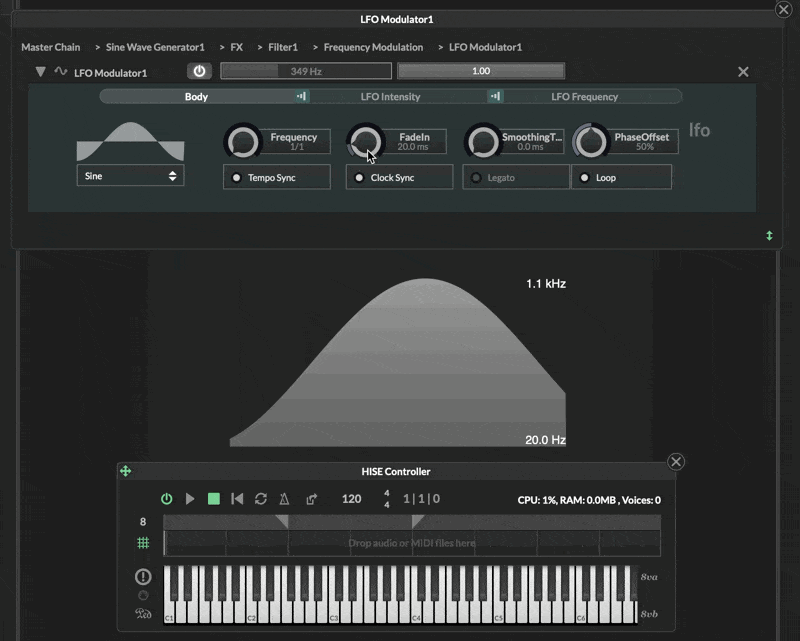

But there does seem to be a weird interaction between Phase and FadeIn. With Phase at 50% and a short 20ms FadeIn time, the resulting LFO shape is unexpected.

[Straticah]

@dannytaurus Ah cool! Yes i kept the fade at default i was not really sure what that does tbh :)

[Straticah]

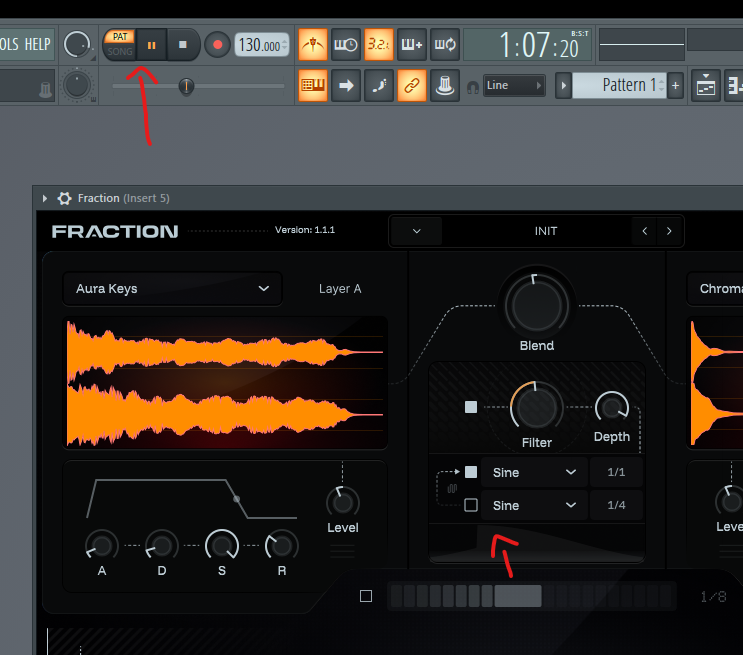

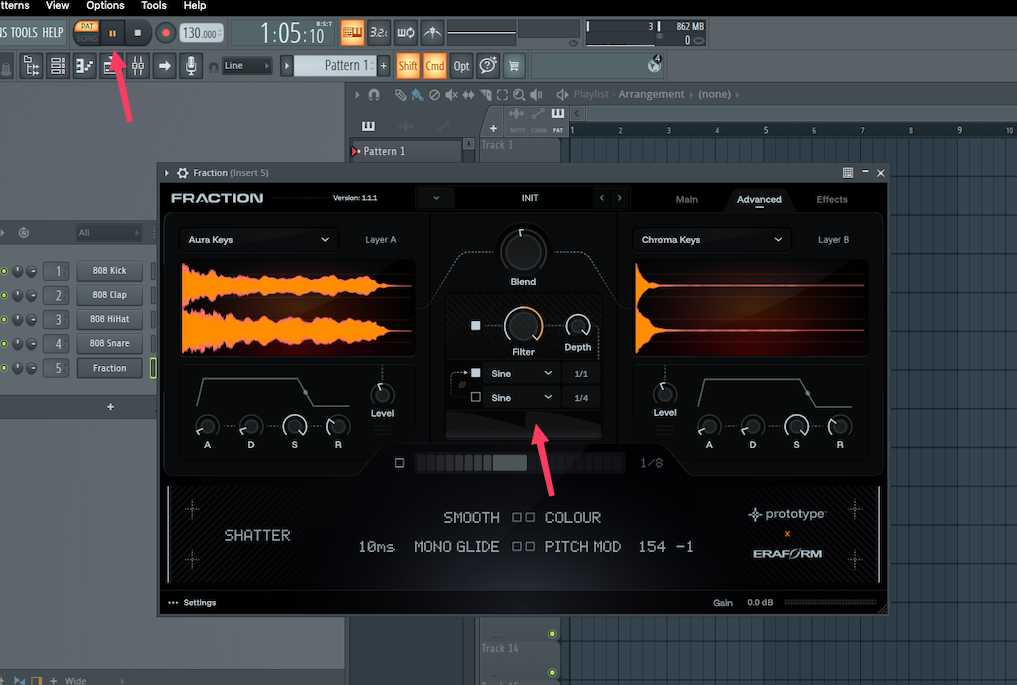

@dannytaurus Seems to still not work on playback:

I have your settings but when i press "play" it will always start at a high and completely ignore the phase offset on my end.

Pressing keys correctly resets it - but the playback does not for some reason?

[Oli Ullmann]

@Straticah
That doesn't work within HISE. But it does work in the compiled plug-in. At least on a Mac.

[Straticah]

@Oli-Ullmann interesting, i need to try that!

[Straticah]

@Oli-Ullmann on win its retrig on "high" state eventho LFO phase is offset to 50%.

i guess if it works on mac it does not on windows?
will do a test on mac now aswell.

[Straticah]

@Oli-Ullmann same on mac here (retrig on high eventho phase offset at 50%)

[Straticah]

@Oli-Ullmann @dannytaurus can anybody of you confirm that this works in HISE or compiled?

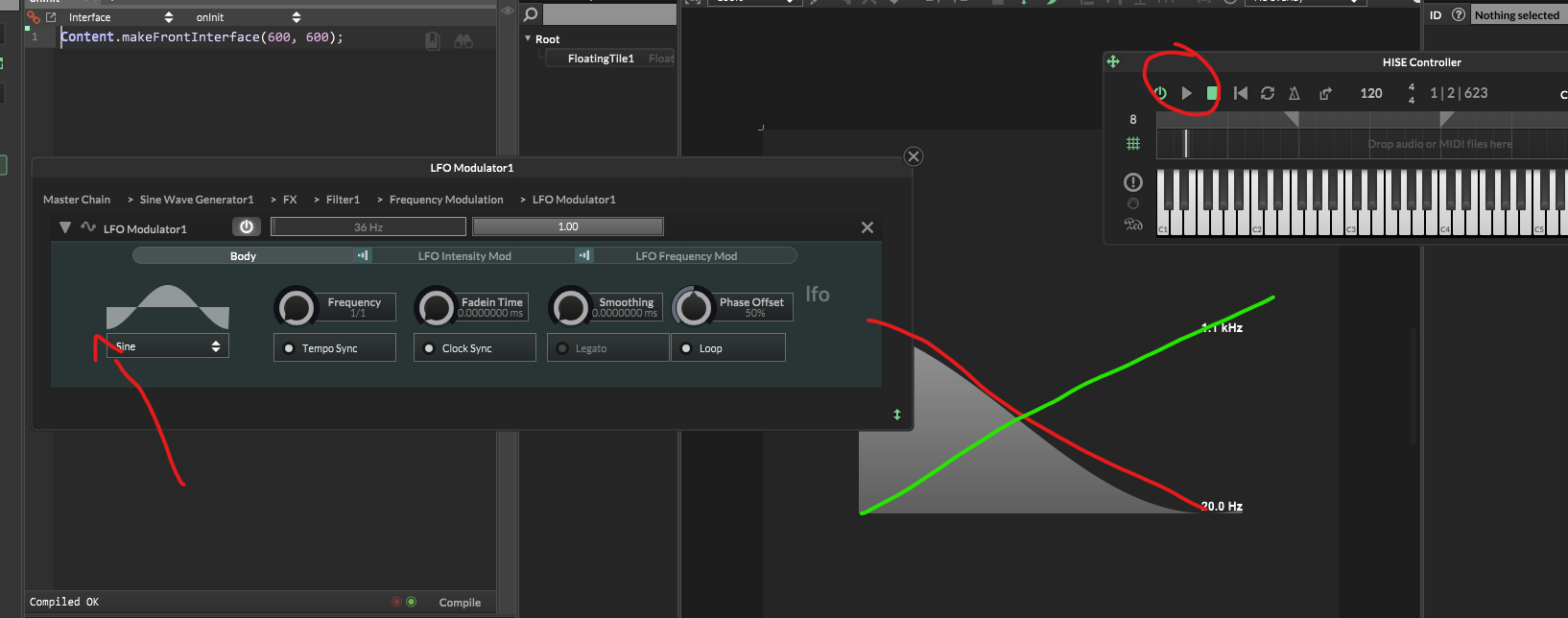

On my end it was definitely not (win/mac screenshots above)

LFO with these settings:

Temposync ON
Clocksync ON
Loop ON
Fade 0
Smooth 0
PhaseOffset 50%

Hitting "PLAY" in HISE or DAW should reset the LFO loop.

It does reset - but phase seems unchanged no Matter the setting here...
