Animated modulation

[David Healey]

@ustk https://github.com/christophhart/HISE/pull/986

[ustk]

@David-Healey Noice!
Have you had a look at the PR count lately?
AI's in the place...

[David Healey]

@ustk said in Animated modulation:

Have you had a look at the PR count lately?

Yes, I'm trying to restrict myself from piling too much on Christoph.

[ustk]

@David-Healey Same...

[Oriah Beats]

@dannytaurus please assist I want the wave to look infinite, no visible start or end point. see my mod

[dannytaurus]

@Oriah-Beats Mine is in a panel, where the panel is the actual size I want to see, and the Plotter floating tile is slightly bigger so the L/R edges are cut off by the panel.

Panel = 180x50
Plotter = 182x48

The Plotter's 182 width means the left and right edges are cropped. The 48 height stops the top/bottom of the wave being cut off.

[ustk]

@dannytaurus Or spare a component by drawing the path in a bigger area

[Oriah Beats]

@Oriah-Beats that's a smart trick it worked . thank you. so the panel works as a mask

[dannytaurus]

@ustk Mine is actually four components, because I'm fussy and the it was the only way I could find how to do it!

My displays have rounded corners, and even though the parent panel crops the plotter waveform by width and height, it still leaks out of the rounded corners.

So, my setup is:

Parent Panel = 180x50
    Plotter floating tile = 182x48 at -1, -1
    2px background-colour border that covers the corners = 182x52 at -1, -1
    1px brand-colour border visible in the UI = 180x50 at 0,0

If the contents didn't leak out of rounded corners I wouldn't have to hack it like this.

This GIF of me hiding the various parts might explain:

Not sure if the GIF shows it well, but when I hide the hacky dark border, the waveform leaks out of the rounded corner.

[dannytaurus]

Here's a zoomed-in GIF showing the corners leaking without the dark border:

I can't have that in one of my plugins!

[ustk]

@dannytaurus I have two ways to treat this in one panel. The first one should be THE way but is broken for so many years, the second is dirty but works nicely:

• Mask -> still broken (I’ve made a quick fix but it still crashes exported plugins)

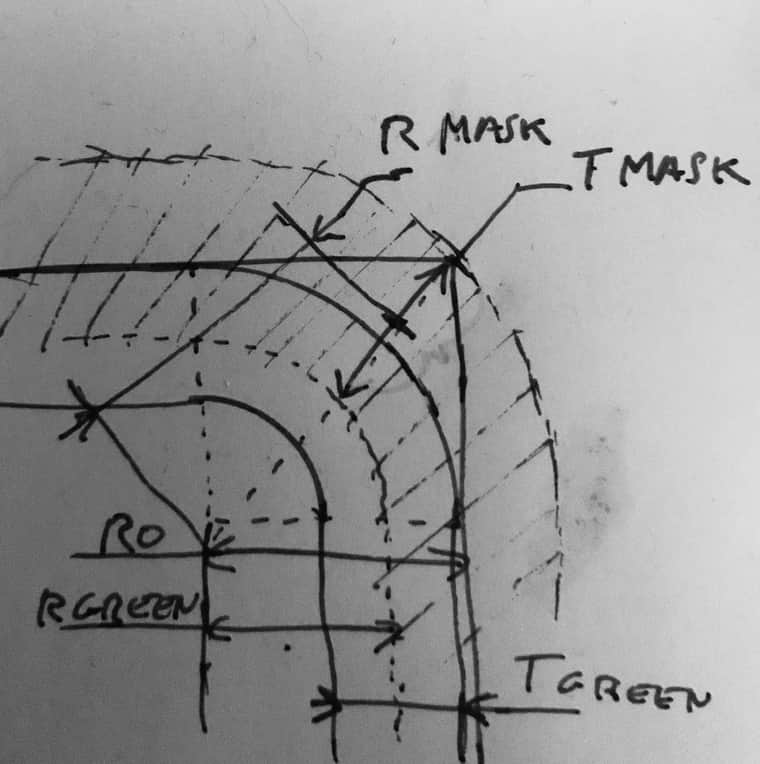

• a first drawRoundedRectangle larger than the green one, and with thicker line landing precisely on the outer edge of the green one. So you need it thick enough, and compute the precise coordinates, This way it is acting like an outer mask. Then draw the green one normally on the top.

[ustk]

@dannytaurus

HiseSnippet 1198.3ocsV0sbZbCEVqMapg1jooSe.1wWsjRw.k5XOY5TrwXGl3eX.mj1diqPqVPiERa0JhMsStr22GodYeb5aP6QqVVVhwodXltW.iN5bNee5nyOpmRRnwwRExozkyhnHmOycvLgdb6wXl.08HjySbOCGqoJOqnCmEgiioAHGmMOwHvoXATx2e+8Gh4XAgtPDB8FIiPOkMgoWHMp0qXb9w3.5krI4ztYqtDonsjKmB7YS2ZnHL4Z7H54XiZa3hdINdLx4Yt6SHjvlMCaTmzrdy81c390IgjgMZresmGzfFLb2gT596EhbdTm.lVpFnwZZL3zCkAyFLVdivBvaXwrgbpYQcz..YqXT6wLdPu4AmXDxoPuEgpMsgpuz8LV.KS9hP1mmrg2BKxGzb1XYJUXIJUOOkpkiRGK4AFGXTYEzyIG8JXo2ScGPTrH8hcLb6KRkdOrytIZieufaaoPSE5pSvWSOVAK5BqUgXB0e2Z0p3A+T9EkJAWYwZu2gUd8vBJut224M2xQTca4jHo.V3usc6sAaVXBQpDT0qDCuWqxzvXXIEcjW6K5edm9WMn6O0ArpV0Zf7RVmWMlp6A2B59xoZlf5GNUPzLoveT4R+VohFHO7jqZewoW759FiuMLrdx2KJUbT0PHs7.N2OSE.xhVqt7pSTTp.rooAvDY8yjkmRe8bc2oQllGjoodLK1bBOURv7CkSEAw90JWUQClRnA94LMO1PE30fw9mg0iqF+KJsuQAumkG3x.xoLJieo1MmneUpqVhYo5jRwpzaivhfDpLWUKS1YGuX1jobHq0KB3gIfEatpLkq91+hqxYiFqGY7T4jPZfBeyolaB3dpR1o+sr.8X+xKD7RpwNijD8RCCY.ucHlGS21aBvnkwcoqJKb8MQUZPeJQiEi3Te6YrRZ7nRZPHy4IrExDEZvgO7S0JfIgzUlGtyeLduI407wDbHZ3MOuzSJxRvM4+JI2mLO4uBThvmRSxbWNoOQNvjzrdEMxjz6a.xTck5P6AIwoswb9PnYp+cwCLJGaNWpoWH7Svrz6K48gaEFtx8R8EmpV41l97pOlg9hoSFRU4OwFEgdYK2rz89aVlu+Mw1JImhRQWASeQDUbesPQo8eLMSSYEnpNoU5SRaZNfyBnJDCZU9otYARTBoyO0C85tGg034tB7JfTDUoYlCgyQz2ASEscoK5dDM9ZsLBFvk01C47IOHfuMCz+j2ZV1hV+bKXhcz.1uBtv0EJoPSvKzE8iszzaAP1x0lVYN6YH+HKxOd9zCSJVBva4ZS2PK4oEnhXstwTWCP57GNHz3jZZyp+xr6cGPAiIkAlFJKO6z7phzMfbjklNYl.IhY5Y4e0wGNPcyG1.0UjA7.o3Sc6wzjwqliarBNB4A+evwzmg7X2NggPWnEDrf6w+vG8MGqO71AqifAQJFjG3d9zICfVjDJft.xNL0nNaXplrqqYVah.CnhfjE+C7ktYcyZmzMqOeSHWknjWQr0flG2rUhDfShjGBVDdQJr1q9cK7l.u65JBYYWcGCartF9MqqgMWWC+100vcWWCe95Z3d+2FZdV7AS0xI1xFD5rdcRZT53zQfgLvjrUz+BAJpjd.

R0 = CORNER_SIZE
