Where is the "EDIT TAGS" Button?

Chazrox

Im trying to access this button in LAF. I dont even see it in the stock browser.

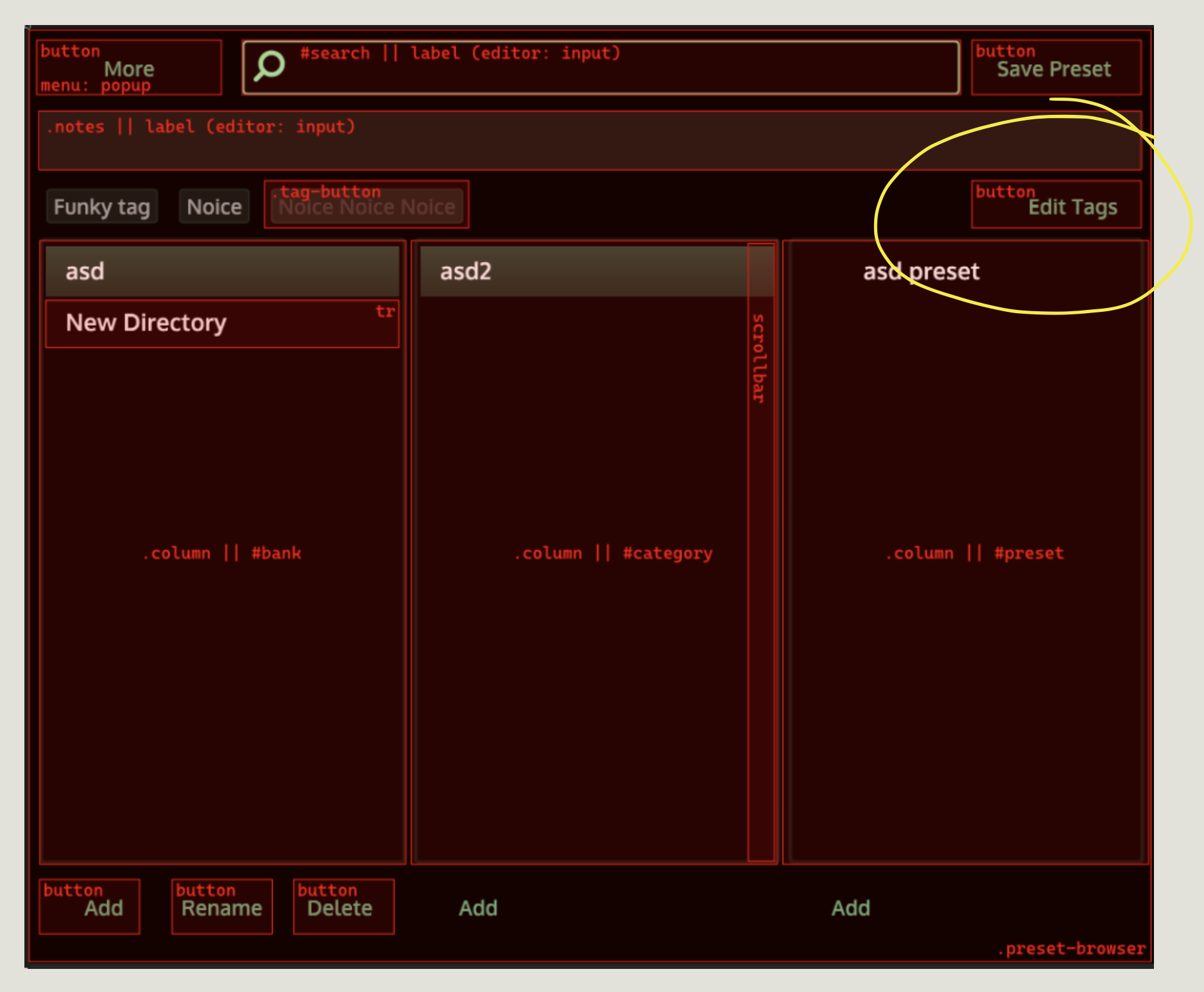

Screenshot 2025-10-19 at 2.51.15 AM.png

d.healey

@Chazrox I think it only appears once you have setup some tags - Engine.setUserPresetTagList() - the tag UI/UX is not very good, it needs improving.

Chazrox

@d-healey I had it set and it wasnt showing up. I got it to show up through LAF with a little bit of investigation.

Screenshot 2025-10-19 at 3.51.37 AM.png

I figured out how to add the button with this script and now I can add an Icon to it.
At this point I can also add text as well if I wanted to.

			inline function drawEditButtons()
				{
				local editButtons = ["Add", "Rename", "Delete", "Edit Tags"];
				local iconNames = ["add", "edit", "cut", "editTags"];

				if (!editButtons.contains(obj.text))
					return;

				local a = obj.area;
				local icons = {};

	//! CUT - DELETE BUTTON
				local pathData = "2415.t0FmETDQzzl0CwFmETDQzzl0Cwl.TTDQ5sn0CwlngTDQnrp0Cw1btTDQnvr0CwVa5TDQl4t0CwFhEUDQJGw0CwFuOUDQ.Yy0CwVAYUDQvt00Cw1VgUDQ.H30CwVtnUDQZj50CwlFuUDQjC80CwFezUDQFk+0CwV13UDQhHB1Cw1K7UDQhsD1CwFe9UDQpSG1CwFv+UDQf5I1Cw18+UDQpgL1Cw1H+UDQpHO1CwFQ8UDQHuQ1CwFW5UDQpTT1CwFa1UDQz3V1Cw1cwUDQJaY1CwFfqUDQV6a1CwlhjUDQ7Xd1CwllbUDQjyf1CwlsSUDQzJi1Cw13IUDQTdk1CwlI+TDQtsm1CwFhyTDQp3o1CwFDmTDQv9q1CwlwYTDQt+s1CwFrKTDQL6u1Cwl17SDQ3vw1CwlSsSDQffy1CwlDcSDQtI01CwFMLSDQXr11Cwlu5RDQHH31CwltnRDQzb41CwFMVRDQJp51CwlNCRDQBv61Cwl0uQDQNt71Cw1DbQDQjj81CwF.HQDQ7R91CwlpyPDQP491CwVGePDQXW+1CwlYJPDQNs+1CwFk0ODQx5+1CwlrfODQ...2CwlyKODQ17+1Cwl81NDQXw+1Cw1MhNDQjc+1CwlmMNDQdA+1CwVN4MDQLc91CwFEkMDQzv81CwlOQMDQZ771CwFv8LDQJ.71CwlppLDQL751CwlAXLDQpv41Cwl3ELDQxc31CwFRzKDQxC21CwlPiKDQzh01Cwl2RKDQL6y1CwVICKDQHMx1Cwll1JDQ1rv1Cwll1JDQ1rv1CwF..ZBQD3onCw1YIo.Q1rv1Cw1YIo.Q1rv1Cw1P5n.QDfx1CwFapn.QDMz1CwF6Yn.Qly01CwlyHn.QZS21Cw1F2m.QNr31CwF3jm.Q3841CwFJRm.QJH61CwF.+l.Q1J71Cw1bql.QxE81CwliWl.Qz381CwlWCl.Q1i91Cw16tk.QxF+1Cw1SZk.Qdg+1Cw1hEk.Q3y+1CwFrvj.Q98+1CwFyaj.Qt++1Cw15Fj.QF4+1CwFGxi.QHp+1CwFaci.Q3R+1Cw14Hi.QXy91Cw1lzh.QtK91CwVkfh.Q9a81Cwl3Lh.QTj71Cwli4g.Qzj61Cwlolg.Qrc51CwlMTg.QDO41CwVRBg.QL421CwF6vf.QPb11CwFJff.Qf3z1CwlBPf.QJNy1Cw1l.f.Qfcw1CwF4we.Qzlu1CwV7ie.QZps1CwVxVe.Qjnq1CwFcJe.Qngo1CwF+9d.Q5Um1CwlYzd.QzEk1Cw1tpd.Qnwh1Cw1+gd.QxYf1CwlNZd.Qp9c1CwlaSd.Qlfa1CwlnMd.Q..Y1CwF1Hd.QTcV1CwVEEd.Q53S1CwVVBd.QLSQ1Cw1o.d.QlrN1CwF..d.QhEL1CwVY.d.QZdI1CwV0Ad.Qp2F1Cw1SDd.QrQD1CwVzGd.Q7rA1CwlVLd.QvI+0Cw14Qd.Qnn70Cw1bXd.Q5I50Cw19ed.Q.t20Cwldnd.QRU00Cw15wd.QL.y0Cw1Q7d.QBuv0CwFhGe.QNht0Cw1oSe.QDZr0Cw1lfe.Q5Vp0CwVWte.QHYn0CwVY5e.Qzzl0CwVY5e.Qzzl0Cwl+vPBQ..fmCwVY5e.QZVxRCwVY5e.QZVxRCw1+qe.QLjtRCw1Wde.QwlpRCwliQe.QvdlRCwFkEe.Q1LhRCwVd5d.QqwcRCwFQvd.Q.NYRCwF+ld.QfhTRCwlodd.Q9uORCw1QWd.QJ2JRCwl4Pd.Q13ERCwVgKd.Q00.RCwFJGd.Q5t6QCwVzCd.Q5j1QCwFgAd.QpXwQCwVP.d.Q9JrQCwlB.d.Qs7lQCwl2.d.QqtgQCwFuBd.QtgbQCwFoEd.QrVWQCwFkId.QXNRQCwlhNd.QpIMQCwVfTd.QRIHQCw1cad.QFNCQCwlYid.Q1X9PCw1Rrd.QVp4PCwlG1d.QTC0PCwl1.e.QhjvPCwFdLe.QrNrPCwV7Xe.QdBnPCwFOle.Qj.jPCwVTze.QnIfPCw1ICf.QNdbPCwFsRf.Q.+XPCw16hf.QfrUPCwVyyf.QOmRPCwFQEg.QsuOPCw1QWg.QXFMPCwFyog.QoqJPCwFx7g.Q7eHPCwFKPh.QjiFPCwl6ih.Q21DPCwV.3h.QFZCPCw1ULi.QfMBPCwF4fi.QQQAPCw1l0i.Qhk.PCwlaJj.QaJ.PCwFTej.Q...PCwFMzj.QSF.PCwFCIk.QRc.PCw1xck.Q5DAPCw1Xxk.QD8APCwFxFl.QnECPCwV6Zl.QadDPCwFwtl.QMGFPCwVPBm.Qt+GPCw1UUm.QpGJPCw19mm.QsdLPCwFH5m.QdDOPCwltKn.Qh3QPCw1ubn.Qb5TPCw1Hsn.QtIXPCwV27n.Q1kaPCw1YIo.QSldPCw1YIo.QTldPCwF..ZBQ7GVlCwll1JDQSldPCwll1JDQTldPCwVuEKDQ5+ZPCwFkUKDQ5kWPCwFElKDQ1XTPCw1L2KDQNYQPCwl4HLDQhmNPCwFHaLDQODLPCwF1sLDQtuIPCwF.AMDQVpGPCwliTMDQczEPCwlbnMDQVNDPCw1n7MDQR3BPCwlDQNDQdxAPCwlrkNDQD8.PCwlc5NDQPX.PCwFTOODQDD.PCwVMjODQl..PCwlE4ODQzM.PCwF4MPDQuq.PCwVkhPDQPZAPCwlF2PDQPYBPCwlYKQDQlnCPCwFaeQDQCHEPCwlGyQDQZ2FPCwlbFRDQX1HPCwlVYRDQoDKPCwlxqRDQ1gMPCwFt8RDQlMPPCwVEOSDQdGSPCwF1eSDQ.OVPCw18uSDQriYPCwlY+SDQ.EcPCwFGNTDQXxfPCwFDbTDQMqjPCwFNoTDQ4tnPCwFi0TDQx7rPCwFAAUDQKTwPCwllKUDQYz0PCwlQUUDQtb5PCwl.dUDQZL+PCw1wkUDQsBDQCwljrUDQ09HQCwlWxUDQ++MQCwFJ2UDQXESQCwF65UDQLNXQCwFp8UDQnYcQCwlV+UDQylhQCwF..VDQ6zmQCwFm+UDQJCsQCwFK9UDQpPxQCwlr6UDQlb2QCw1K3UDQHl7QCwloyUDQbrARCwlFtUDQttFRCwlimUDQKrKRCwlAfUDQ+iPRCwlgWUDQXUURCwlENUDQl+YRCwltCUDQ5gdRCwVd3TDQj6hRCwlVrTDQ2KmRCwlYeTDQHRqRCwFoQTDQtMuRCwFmETDQZVxRCwFmETDQZVxRCwl.OiBQ..fmCMVY";
				icons.cut = Content.createPath();
				icons.cut.loadFromData(pathData);

	//! EDIT BUTTON
				pathData = "1768.t0FILPDQWeSeCwVowXCQJDcQCwVowXCQJDcQCwFpCXCQDHRQCwVhSWCQmwGQCwFZgVCQdB9PCwVYsUCQM7zPCwVn2TCQPfrPCwlO.TCQ9ujPCwFXGSCQlrcPCwFKMRCQQWWPCwlwQQCQ+vQPCwFUUPCQo5LPCwl+WOCQB0HPCwl5YNCQyfEPCwFPaMCQd9BPCwFJbLCQcNAPCw1xbKCQBQ.PCwVTcJCQVF.PCw13cICQbt.PCwlpdHCQNIBPCwFyeGCQbVDPCwVcgFCQuUGPCwlxiECQpFKPCw17lDCQlnOPCwFFqCCQz5TPCwlWvBCQe7ZPCwF61ACQnrgPCwV49.CQKJoPCw1aH.CQ5SwPCwlpS+BQjH5PCw1tf9BQslCQCwFvu8BQzrMQCwl1.8BQRYXQCwFxs7BQJDcQCwFxs7BQJDcQCwFLzi.Qzt0qCwFLzi.Qzt0qCw1nHi.QJZ6qCwlZeh.QdVArCwlm3g.QyhGrCwFVTg.QI9MrCw1qxf.QdmTrCwltSf.QtcarCw1h2e.QyehrCwlMde.QlrorCwVxGe.Q6BwrCwFUzd.Qog3rCwl3id.QhG.sCw1eVd.QZyGsCw1LLd.QAjOsCwVAEd.QHXWsCwF9.d.QdNesCwF..d.QF6ksCwF..d.QF6ksCwF..d.QCOgzCwF..d.QCOgzCwlkAd.QuJozCwFVFd.QIEwzCwlPNd.QA83zCw1SYd.QFw.0CwVdmd.QIfH0Cwls3d.Q4HP0Cw19Le.QIpW0Cw1Nje.QrBe0CwFZ9e.QVQl0CwFbaf.Q9Ts0CwVP6f.QZLz0Cw1wcg.Qk150Cw15Bh.QaRA1Cwlkph.Q4dG1Cw1qTi.Q.aM1CwlFAj.QzES1Cw1tuj.QZdX1CwFcfk.Q6ic1CwlISl.QjUh1CwVrGm.Qixl1Cw178m.QJ5p1CwVx0n.Qvqt1Cw1Cuo.QtFx1Cwlnop.QgJ01CwlVkq.Qn121Cw1Dhr.QqJ51Cwloes.QOF71Cwl5ct.QBo81CwFtbu.Qzx91CwF5av.QXi+1CwlTaw.Qn5+1CwVt0w.Q07+1CwVt0w.Q07+1Cw1yIBDQ07+1Cw1yIBDQ07+1CwlhoBDQe1+1CwFLICDQci+1CwlqnCDQyC+1CwF7GDDQlW91CwF3lDDQ7d81CwFaEEDQ.Z71CwFfiEDQ5H61CwVBAFDQ5q41CwF8cFDQNC31CwlK5FDQEO11CwFoUGDQ0Oz1Cw1QvGDQuEx1CwFAJHDQJwu1CwFyhHDQfRs1Cwli5HDQGpp1Cw1NQIDQb3m1CwFwlIDQ68j1CwVG6IDQB6g1Cw1MNJDQPvd1CwlAfJDQEda1CwFfvJDQCEX1Cwll+JDQtkT1CwlRMKDQm.Q1CwlgYKDQTVM1CwFRjKDQbmI1CwVhsKDQizE1CwlP0KDQP9A1Cwla6KDQLE90Cw1B.LDQ9I50CwFECLDQMM10CwFhDLDQjOx0CwlYDLDQoQt0CwlqBLDQGTp0CwVX+KDQjWl0CwVf5KDQpbh0CwlDzKDQAjd0CwlErKDQPtZ0CwFkhKDQ.7V0CwljWKDQ1MS0CwlEKKDQYjO0CwlJ8JDQM.L0CwF0sJDQ4gH0CwFHcJDQ+IE0CwFFKJDQA4A0Cw1w2IDQhu9zCwlNiIDQ.t6zCw1eMIDQ8z3zCwln1HDQzD1zCwFsdHDQBdyzCwlvEHDQBAwzCwF2qGDQLttzCwVEQGDQ5krzCwFe0FDQenpzCw1HYFDQQ1nzCwFG7EDQgOmzCw1ddEDQfzkzCwlT.EDQckjzCwFsgDDQjhizCwFsBDDQ+qhzCw1YiCDQ3AhzCwF3CCDQVjgzCwVMjBDQbSgzCw1yIBDQCOgzCw1yIBDQCOgzCwFETEBQCOgzCwFILPDQlNJiCwFILPDQkNJiCwV42PDQqdDiCwFSgQDQtc9hCwlOHRDQrL3hCwlnrRDQlrwhCwlXNSDQd9phCwlYsSDQXCjhCwFmITDQb7bhCwl7hTDQzpUhCwlU4TDQmONhCwFuLUDQDrFhCwVEcUDQWA+gCwVVpUDQuP2gCwlezUDQbaugCwle6UDQrhmgCwVU+UDQxmegCwF..VDQ9qWgCwle8UDQivOgCwlz2UDQu1GgCw1+tUDQ0++fCwlBiUDQFM3fCw19SUDQvevfCwF2AUDQB4nfCwFtrTDQLZgfCwlmTTDQYDZfCwFm4SDQz3RfCw1vaSDQm3KfCw1I6RDQ5DEfCwF2WRDQi87eCwl9wQDQjNveCwFlIQDQ59ieCwlzdPDQgPXeCwFILPDQVeSeCwFILPDQWeSeCMVa5jQND4afTNDaF9yJDQXlwMDab.qLD4x0SMDaOmHPDQInENzXkA";
				icons.edit = Content.createPath();
				icons.edit.loadFromData(pathData);

	//!ADD BUTTON
				pathData = "2451.t0F..ZBQ39+OCwF..ZBQ39+OCwlCgZBQFL.PCwlABaBQuy.PCwV0haBQr0APCwFYCbBQyQCPCwlmibBQ0GEPCwVbCcBQdWGPCwlwhcBQZ.JPCwlhAdBQJBMPCwlpedBQSbPPCwVD8dBQONTPCwVqYeBQYWXPCwFa0eBQF2bPCwVOPfBQmrgPCwVCpfBQM2lPCwFyBgBQAVrPCwFaZgBQKHxPCw11vgBQwL3PCwVCFhBQzh9PCw17YhBQSIEQCwVfrhBQK+KQCw1p8hBQVCSQCwVYMiBQpTZQCw1oaiBQ9wgQCwlYniBQFZoQCw1lyiBQyKwQCwlO8iBQ1E4QCwlREjBQ9FARCwVtKjBQ3MIRCw1gPjBQRYQRCwFrSjBQ3mYRCwFMUjBQV3gRCwFVUjBQYTkRCwFVUjBQYTkRCwFVUjBQzUMlCwFypKDQzUMlCwFypKDQzUMlCwl1KLDQabMlCwlzrLDQOvMlCwVnMMDQNQNlCwFLtMDQR+NlCwlZNNDQR5OlCwVOtNDQGBQlCwljMODQjVRlCwlUrODQd2SlCwlcJPDQhjUlCwV2mPDQfcWlCwldDQDQDhYlCwFNfQDQ5walCwVB6QDQrLdlCwV1TRDQ9wflCwFlsRDQXgilCwFNESDQdZllCw1oaSDQvbolCwV1vSDQxmrlCw1uDTDQB6ulCwVSWTDQ9UylCw1cnTDQB31lCwlL3TDQsf5lCw1bFUDQWO9lCwlLSUDQaCBmCwFZdUDQR7EmCwlBnUDQS4ImCwlEvUDQ24MmCwVg1UDQT8QmCw1T6UDQACVmCwFe9UDQTJZmCwF..VDQiRdmCwF2+UDQDahmCwlD9UDQLilmCwln5UDQPppmCwVi0UDQnutmCwV1tUDQoxxmCwFhlUDQpx1mCwVnbUDQ.u5mCwlJQUDQFm9mCwFJDUDQSZBnCwlo0TDQ.HFnCwlqkTDQluInCw1QTTDQfPMnCwleATDQLpPnCwFXsSDQF7SnCwF9WSDQqEWnCwFUASDQdFZnCw1foRDQ78bnCwFkPRDQrqenCwFl1QDQNOhnCwlmaQDQLnjnCwVt+PDQJ1lnCwl9hPDQz3nnCwlbEPDQyupnCwVMmODQ0ZrnCwFVHODQp4snCwF6nNDQ.LunCwlAINDQrQvnCwFunMDQhJwnCwFHHMDQX1wnCwlRmLDQJUxnCwFSFLDQvlxnCwFypKDQUqxnCwFypKDQUqxnCwFVUjBQUqxnCwFVUjBQ7Vs0CwFVUjBQ7Vs0CwVgTjBQWew0Cw1BRjBQIm00Cw15MjBQls40CwlJHjBQDx80CwVx.jBQ5yA1Cw1y2iBQdxE1CwFPsiBQHsI1CwFIgiBQQiM1CwlfSiBQOTQ1CwlXDiBQd+T1CwFzyhBQVjX1CwV0ghBQUBb1CwFeNhBQ1Xe1Cw1z4gBQVmh1Cwl4igBQUsk1CwFwLgBQSpn1CwldzfBQxcq1CwlFafBQVGt1Cwlr.fBQhlv1CwFUkeBQ95x1CwVDIeBQQD01CwF+qdBQGB21Cw1INdBQJz31CwVoucBQIZ51CwlhPcBQyy61CwV5vbBQ5.81Cw10PbBQQA91CwFZvaBQtz91CwlrOaBQIa+1CwFxtZBQcz+1CwVvMZBQj..2CwVrrYBQb++1CwVqKYBQGw+1CwlxpXBQmU+1CwlGJXBQ+r91CwluoWBQV281CwluIWBQ0z71CwlLpVBQlk61Cw1KKVBQ2I51CwVxrUBQ0g31Cw1DOUBQws11CwFHxTBQ+sz1Cwl.VTBQxhx1CwFy5SBQgLv1CwFjfSBQiqs1CwVWGSBQS.q1CwFQuRBQLKn1CwFUXRBQqLk1CwVmBRBQMEh1Cw1JtQBQT0d1CwFCaQBQhca1CwVSIQBQV9W1CwF93PBQVXT1CwVFpPBQHrP1CwFtbPBQO5L1Cwl2PPBQSCI1CwljFPBQ6GE1CwF28OBQwHA1Cwlv1OBQaF80CwlQwOBQkA40CwVasOBQ25z0CwlNqOBQ7xv0CwFppOBQ7Vs0CwFppOBQ7Vs0CwFppOBQUqxnCwFMUn.QUqxnCwFMUn.QUqxnCwlIzm.QtjxnCwlKSm.Q5PxnCw1Wxl.Q6uwnCwFzQl.Q3AwnCwVkwk.Q1FvnCw1vQk.QB+tnCwlaxj.QjpsnCwlpSj.QrIrnCwlh0i.QnbpnCw1HXi.QpinnCw1g6h.QDelnCwFxeh.QNOjnCw18Dh.QdzgnCw1Iqg.QKOenCwFZRg.QwebnCwFx5f.QrlYnCwVVjf.QYjVnCw1IOf.QXYSnCwVP6e.QHFPnCw1rne.QLqLnCwVhWe.QFIInCwlyGe.QbfEnCwVi4d.QxwAnCwlyrd.Qt88mCwVlgd.Q2D5mCwV8Wd.Q1G1mCwl5Od.QRGxmCw1dId.QzCtmCwVqDd.QG9omCwFgAd.Qz1kmCwF..d.QktgmCwFI.d.QDlcmCwl6Ad.Q7cYmCw1WEd.Q3VUmCw1bJd.QfQQmCw1IQd.QeNMmCwFdYd.QdNImCw1Wid.QGREmCw10td.QAZAmCwF16d.Qzl8lCwlVJe.QH44lCw1TZe.QhQ1lCwltqe.QmvxlCwlf9e.Q7VulCwVnRf.QBErlCwVBnf.Qb6nlCwVq9f.Qp5klCwleVg.QLCilCwFaug.QbUflCwVZIh.Q5wclCwlXjh.Q7XalCwFR.i.Q9JYlCwFBci.QTHWlCwFj5i.QUQUlCwFyXj.QSlSlCwlp2j.QeGRlCwlEWk.QH0PlCw191k.QcuOlCwlQWl.Qm1NlCwV32l.QvJNlCwFtXm.Q+qMlCwVs4m.QXZMlCwFMUn.QzUMlCwFMUn.QzUMlCwFppOBQzUMlCwFppOBQYTkRCwFppOBQYTkRCw1dqOBQhCcRCwl8sOBQ.zTRCwVExOBQFmLRCwl02OBQJdDRCw1M+OBQdZ7QCwVLHPBQUczQCwFvRPBQ.nrQCwF2dPBQv6jQCwlerPBQxYcQCwlm6PBQUCVQCwFLLQBQi4NQCw1JdQBQl8GQCwFgwQBQkPAQCwVKFRBQjy5PCwlFbRBQlmzPCwVOyRBQpstPCwlgKSBQrFoPCw14jSBQkyiPCw1S+SBQM0dPCwVqZTBQULZPCwF71TBQt4UPCwVATUBQC9QPCwl1wUBQ7YNPCwFWPVBQ+MKPCw1cuVBQqZHPCwFFOWBQd.FPCwlJuWBQv+CPCwVlOXBQ0XBPCw1SvXBQ9KAPCwVNQYBQXY.PCwFPxYBQJA.PCwF..ZBQ39+OCwF..ZBQ39+OCMVY";
				icons.add = Content.createPath();
				icons.add.loadFromData(pathData);

	//!EDIT TAGS BUTTON
				pathData = "2451.t0F..ZBQ39+OCwF..ZBQ39+OCwlCgZBQFL.PCwlABaBQuy.PCwV0haBQr0APCwFYCbBQyQCPCwlmibBQ0GEPCwVbCcBQdWGPCwlwhcBQZ.JPCwlhAdBQJBMPCwlpedBQSbPPCwVD8dBQONTPCwVqYeBQYWXPCwFa0eBQF2bPCwVOPfBQmrgPCwVCpfBQM2lPCwFyBgBQAVrPCwFaZgBQKHxPCw11vgBQwL3PCwVCFhBQzh9PCw17YhBQSIEQCwVfrhBQK+KQCw1p8hBQVCSQCwVYMiBQpTZQCw1oaiBQ9wgQCwlYniBQFZoQCw1lyiBQyKwQCwlO8iBQ1E4QCwlREjBQ9FARCwVtKjBQ3MIRCw1gPjBQRYQRCwFrSjBQ3mYRCwFMUjBQV3gRCwFVUjBQYTkRCwFVUjBQYTkRCwFVUjBQzUMlCwFypKDQzUMlCwFypKDQzUMlCwl1KLDQabMlCwlzrLDQOvMlCwVnMMDQNQNlCwFLtMDQR+NlCwlZNNDQR5OlCwVOtNDQGBQlCwljMODQjVRlCwlUrODQd2SlCwlcJPDQhjUlCwV2mPDQfcWlCwldDQDQDhYlCwFNfQDQ5walCwVB6QDQrLdlCwV1TRDQ9wflCwFlsRDQXgilCwFNESDQdZllCw1oaSDQvbolCwV1vSDQxmrlCw1uDTDQB6ulCwVSWTDQ9UylCw1cnTDQB31lCwlL3TDQsf5lCw1bFUDQWO9lCwlLSUDQaCBmCwFZdUDQR7EmCwlBnUDQS4ImCwlEvUDQ24MmCwVg1UDQT8QmCw1T6UDQACVmCwFe9UDQTJZmCwF..VDQiRdmCwF2+UDQDahmCwlD9UDQLilmCwln5UDQPppmCwVi0UDQnutmCwV1tUDQoxxmCwFhlUDQpx1mCwVnbUDQ.u5mCwlJQUDQFm9mCwFJDUDQSZBnCwlo0TDQ.HFnCwlqkTDQluInCw1QTTDQfPMnCwleATDQLpPnCwFXsSDQF7SnCwF9WSDQqEWnCwFUASDQdFZnCw1foRDQ78bnCwFkPRDQrqenCwFl1QDQNOhnCwlmaQDQLnjnCwVt+PDQJ1lnCwl9hPDQz3nnCwlbEPDQyupnCwVMmODQ0ZrnCwFVHODQp4snCwF6nNDQ.LunCwlAINDQrQvnCwFunMDQhJwnCwFHHMDQX1wnCwlRmLDQJUxnCwFSFLDQvlxnCwFypKDQUqxnCwFypKDQUqxnCwFVUjBQUqxnCwFVUjBQ7Vs0CwFVUjBQ7Vs0CwVgTjBQWew0Cw1BRjBQIm00Cw15MjBQls40CwlJHjBQDx80CwVx.jBQ5yA1Cw1y2iBQdxE1CwFPsiBQHsI1CwFIgiBQQiM1CwlfSiBQOTQ1CwlXDiBQd+T1CwFzyhBQVjX1CwV0ghBQUBb1CwFeNhBQ1Xe1Cw1z4gBQVmh1Cwl4igBQUsk1CwFwLgBQSpn1CwldzfBQxcq1CwlFafBQVGt1Cwlr.fBQhlv1CwFUkeBQ95x1CwVDIeBQQD01CwF+qdBQGB21Cw1INdBQJz31CwVoucBQIZ51CwlhPcBQyy61CwV5vbBQ5.81Cw10PbBQQA91CwFZvaBQtz91CwlrOaBQIa+1CwFxtZBQcz+1CwVvMZBQj..2CwVrrYBQb++1CwVqKYBQGw+1CwlxpXBQmU+1CwlGJXBQ+r91CwluoWBQV281CwluIWBQ0z71CwlLpVBQlk61Cw1KKVBQ2I51CwVxrUBQ0g31Cw1DOUBQws11CwFHxTBQ+sz1Cwl.VTBQxhx1CwFy5SBQgLv1CwFjfSBQiqs1CwVWGSBQS.q1CwFQuRBQLKn1CwFUXRBQqLk1CwVmBRBQMEh1Cw1JtQBQT0d1CwFCaQBQhca1CwVSIQBQV9W1CwF93PBQVXT1CwVFpPBQHrP1CwFtbPBQO5L1Cwl2PPBQSCI1CwljFPBQ6GE1CwF28OBQwHA1Cwlv1OBQaF80CwlQwOBQkA40CwVasOBQ25z0CwlNqOBQ7xv0CwFppOBQ7Vs0CwFppOBQ7Vs0CwFppOBQUqxnCwFMUn.QUqxnCwFMUn.QUqxnCwlIzm.QtjxnCwlKSm.Q5PxnCw1Wxl.Q6uwnCwFzQl.Q3AwnCwVkwk.Q1FvnCw1vQk.QB+tnCwlaxj.QjpsnCwlpSj.QrIrnCwlh0i.QnbpnCw1HXi.QpinnCw1g6h.QDelnCwFxeh.QNOjnCw18Dh.QdzgnCw1Iqg.QKOenCwFZRg.QwebnCwFx5f.QrlYnCwVVjf.QYjVnCw1IOf.QXYSnCwVP6e.QHFPnCw1rne.QLqLnCwVhWe.QFIInCwlyGe.QbfEnCwVi4d.QxwAnCwlyrd.Qt88mCwVlgd.Q2D5mCwV8Wd.Q1G1mCwl5Od.QRGxmCw1dId.QzCtmCwVqDd.QG9omCwFgAd.Qz1kmCwF..d.QktgmCwFI.d.QDlcmCwl6Ad.Q7cYmCw1WEd.Q3VUmCw1bJd.QfQQmCw1IQd.QeNMmCwFdYd.QdNImCw1Wid.QGREmCw10td.QAZAmCwF16d.Qzl8lCwlVJe.QH44lCw1TZe.QhQ1lCwltqe.QmvxlCwlf9e.Q7VulCwVnRf.QBErlCwVBnf.Qb6nlCwVq9f.Qp5klCwleVg.QLCilCwFaug.QbUflCwVZIh.Q5wclCwlXjh.Q7XalCwFR.i.Q9JYlCwFBci.QTHWlCwFj5i.QUQUlCwFyXj.QSlSlCwlp2j.QeGRlCwlEWk.QH0PlCw191k.QcuOlCwlQWl.Qm1NlCwV32l.QvJNlCwFtXm.Q+qMlCwVs4m.QXZMlCwFMUn.QzUMlCwFMUn.QzUMlCwFppOBQzUMlCwFppOBQYTkRCwFppOBQYTkRCw1dqOBQhCcRCwl8sOBQ.zTRCwVExOBQFmLRCwl02OBQJdDRCw1M+OBQdZ7QCwVLHPBQUczQCwFvRPBQ.nrQCwF2dPBQv6jQCwlerPBQxYcQCwlm6PBQUCVQCwFLLQBQi4NQCw1JdQBQl8GQCwFgwQBQkPAQCwVKFRBQjy5PCwlFbRBQlmzPCwVOyRBQpstPCwlgKSBQrFoPCw14jSBQkyiPCw1S+SBQM0dPCwVqZTBQULZPCwF71TBQt4UPCwVATUBQC9QPCwl1wUBQ7YNPCwFWPVBQ+MKPCw1cuVBQqZHPCwFFOWBQd.FPCwlJuWBQv+CPCwVlOXBQ0XBPCw1SvXBQ9KAPCwVNQYBQXY.PCwFPxYBQJA.PCwF..ZBQ39+OCwF..ZBQ39+OCMVY";
				icons.editTags = Content.createPath();
				icons.editTags.loadFromData(pathData);

	//! EDIT BUTTONS OVER & DOWN PROPERTIES
			if (editButtons.contains(obj.text))
				{
				local index = editButtons.indexOf(obj.text);
				local icon = icons[iconNames[index]];

				g.setColour(Colours.withAlpha(obj.textColour, obj.over ? 1.0 - 0.6 * obj.down : 0.7));
				g.fillPath(icon, [a[0] + 30, a[1] + 10, 12, 12]);

				}

			}

		});
	FloatingTile1.setLocalLookAndFeel(LafPresetBrowserSelektah);

Im trying to figure out how to add a second row for the tags. They seem to just run off the right side of the panel if you have too many. Is there any way to expand the area that these are bound to vertically?

d.healey

@Chazrox said in Where is the "EDIT TAGS" Button?:

They seem to just run off the right side of the panel if you have too many. Is there any way to expand the area that these are bound to vertically?

As I say, the UI/UX is not very good - I think it's unusable in a real project, unless there's something I don't know about.

Chazrox

@Christoph-Hart is there a way I can override the padding between the tag buttons? I can change the size of the buttons all to one size, but when I do that some auto padding still persists.

Chazrox

@d-healey Works pretty good if you're ok with 10-12 tags. ha. Theres some weird auto padding going on when you make the buttons all the same size but if you can figure that one out you can probably get a few more.

For anybody looking, I was able to edit find the mysterious button with this;

LafPresetBrowserSelektah.registerFunction("drawDialogButton", function(g, obj)
{

// this part
	inline function drawEditButtons()
	{
        if (obj.text == "Edit Tags")
		{
               // draw the button here
		}
	}
}

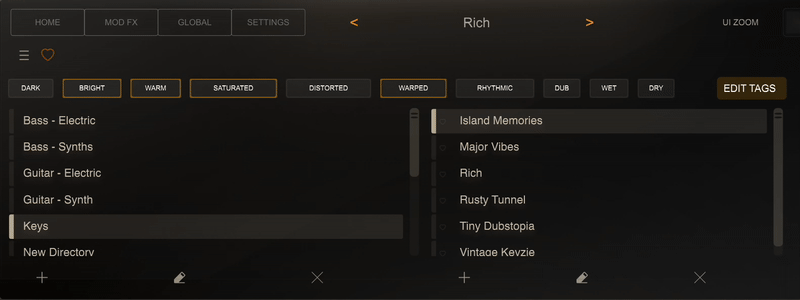

Preset Browser Tags Working.gif

d.healey

@Chazrox But the process for the user for adding tags is weird, I don't like it anyway :p
