Broadcaster attachment design pattern

Orvillain

I'm doing something like this:

    inline function addEngineAmpEnvListeners()
    {
        Globals.broadcasters["Engine1AHDSRControl"].addListener("string", "metadata", function(param, value)
        {
            BroadcasterCallbacks.controlLinkedAmpEnvParameter("Engine1", param, value);
        });

        Globals.broadcasters["Engine2AHDSRControl"].addListener("string", "metadata", function(param, value)
        {
            BroadcasterCallbacks.controlLinkedAmpEnvParameter("Engine2", param, value);
        });

        Globals.broadcasters["Engine3AHDSRControl"].addListener("string", "metadata", function(param, value)
        {
            BroadcasterCallbacks.controlLinkedAmpEnvParameter("Engine3", param, value);
        });
    }

And I'm doing this in quite in a few functions. But if I do something like this:

    inline function addEngineAmpEnvListeners()
        {
            local engines = ["Engine1", "Engine2", "Engine3"];

            for (engine in engines)
            {
                local capturedEngine = engine;
                Globals.broadcasters[engine + "AHDSRControl"].addListener("string", "metadata", function(param, value)
                {
                    BroadcasterCallbacks.controlLinkedAmpEnvParameter(capturedEngine, param, value);
                });
            }
        }

Then I get the error:

BroadcasterCallbacks.controlLinkedAmpEnvParameter(capturedEngine, param, value);

I can't declare capturedEngine as a const or var. If I don't capture the engine variable inside the for loop, then I get a different error:

Interface:! Engine3AHDSRControl: BroadcastersBuilder.js (291): Illegal iterator target

I would guess this is due to some async closure issue, but I don't really know. Fundamentally, how can I do the above without needing to rely on a local variable?

The callback works like this:

	inline function controlLinkedAmpEnvParameter(engineName, param, value)
	{
		local paramMap = {
			"Monophonic": 0,
			"Retrigger": 1,
			"Attack": 2,
			"AttackLevel": 3,
			"Hold": 4,
			"Decay": 5,
			"Sustain": 6,
			"Release": 7,
			"AttackCurve": 8,
			"DecayCurve": 9,
			"EcoMode": 10,
		};

		local engine = Globals.engines[engineName];

		for (mode in Globals.modeMap)
		{
			local modeData = engine["modes"][mode];

			local parts = param.getId().split("_");
			local paramName = parts[parts.length - 1];
			local target = modeData["ahdsrEnvObj"];
			target.setAttribute(paramMap[paramName], value);
		}
	}

d.healey

@Orvillain Don't use globals. I thought they might be useful for broadcasters too but nope

Orvillain

@d-healey You mean my references to Globals.xxxxx ??? Don't worry about that, that's just a custom namespace. It might as well be called JamDoughnut.

I'm using these broadcasters to link all parameters across all sound generators within a container - the containers being Engine1/Engine2/Engine 3.

Christoph Hart

@Orvillain said in Broadcaster attachment design pattern:

Don't worry about that

Do worry about that, this might mess up your code because the HiseScript parser might think you're calling into globals.

This is the same as back when we added a Settings object and everybody and his dog complained about their Settings namespace being trashed...

At some point I'll need to add more strictness to reserved keywords (eg. I've run into an issue this week where a scriptnode network messed up the entire module tree if you name a parameter Type because that's a reserved attribute for HardcodedFX modules).

d.healey

@Orvillain said in Broadcaster attachment design pattern:

Don't worry about that, that's just a custom namespace.

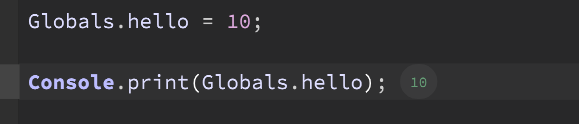

You might run into issues with that name since it's a built in HISE keyword for declaring global variables

^ what Christoph said :)

Orvillain

Oh, I thought the HISE namespace was called 'Global' - not 'Globals' ???? If I'm wrong, I will change the name to JamDoughnut after all!!!

Orvillain

OK. Fixed that. I've gone for SharedData instead.

Existing question still outstanding - is there a pattern for running multiple addListener() calls without needing to rely on local variables ???

d.healey

@Orvillain said in Broadcaster attachment design pattern:

I'm using these broadcasters to link all parameters across all sound generators within a container - the containers being Engine1/Engine2/Engine 3.

Broadcasters can't be shared across modules

However there is the module parameter syncer which might do it - the documentation isn't clear to me - https://docs.hise.dev/scripting/scripting-api/broadcaster/index.html#addmoduleparametersyncer

There are also global cables which might be useful for you.

d.healey

@Orvillain Is the goal to have one set of knobs that control a bunch of envelopes?

Orvillain

What I've got is working perfectly. I just think the code is a bit messy. It isn't just for envelopes, no. I'm doing the same pattern for a whole variety of areas in my synth.

But the one example is:

    inline function addEngineAmpEnvListeners()
    {
        SharedData.broadcasters["Engine1AHDSRControl"].addListener("string", "metadata", function(param, value)
        {
            BroadcasterCallbacks.controlLinkedAmpEnvParameter("Engine1", param, value);
        });

        SharedData.broadcasters["Engine2AHDSRControl"].addListener("string", "metadata", function(param, value)
        {
            BroadcasterCallbacks.controlLinkedAmpEnvParameter("Engine2", param, value);
        });

        SharedData.broadcasters["Engine3AHDSRControl"].addListener("string", "metadata", function(param, value)
        {
            BroadcasterCallbacks.controlLinkedAmpEnvParameter("Engine3", param, value);
        });
    }

And the callback I'm attaching to this is:

	inline function controlLinkedAmpEnvParameter(engineName, param, value)
	{
		local paramMap = {
			"Monophonic": 0,
			"Retrigger": 1,
			"Attack": 2,
			"AttackLevel": 3,
			"Hold": 4,
			"Decay": 5,
			"Sustain": 6,
			"Release": 7,
			"AttackCurve": 8,
			"DecayCurve": 9,
			"EcoMode": 10,
		};

		local engine = SharedData.engines[engineName];

		for (mode in SharedData.modeMap)
		{
			local modeData = engine["modes"][mode];

			local parts = param.getId().split("_");
			local paramName = parts[parts.length - 1];
			local target = modeData["ahdsrEnvObj"];
			target.setAttribute(paramMap[paramName], value);
		}
	}

It works splendidly. I just don't like that initial bit of code, because I'm repeating myself and specifying a different engine name each time.

d.healey

@Orvillain said in Broadcaster attachment design pattern:

What I've got is working perfectly.

Have you tested it in a compiled project?

The way I handle this kind of thing is to make a controller script. Then I just connect the knobs to the controller using processor/parameter ID.

Here's an example of an AHDSR controller that will work for any number of envelopes, you can add/remove envelopes and no change to the script is required, it's completely self contained.

It avoids that repetition you've ran into and can be reused in many projects.

Orvillain

@d-healey said in Broadcaster attachment design pattern:

Have you tested it in a compiled project?

Yes. Works fine!

Orvillain

@d-healey said in Broadcaster attachment design pattern:

The way I handle this kind of thing is to make a controller script. Then I just connect the knobs to the controller using processor/parameter ID.

Here's an example of an AHDSR controller that will work for any number of envelopes, you can add/remove envelopes and no change to the script is required, it's completely self contained.

It avoids that repetition you've ran into and can be reused in many projects.

Without bludgeoning you with loads of code, it is hard to explain. But I'm essentially dynamically creating parameter groups based on their names. Then I create a broadcaster for each group. Then I attach the broadcaster to each parameter based on the broadcaster type that is desired, then I am adding the listener callbacks to the broadcaster.

It is all very cool and modular. I just don't like this particular 3-engine manual duplicate approach, because if I want to move to 5 engines, then I need to do a bunch of manual work.

I was hoping for a design pattern where I could call the right number of addListener commands, against the right number of broadcaster or parameter groups. I can't just run a loop and use local variables, because local variables aren't allowed in inline functions in this manner.

d.healey

@Orvillain Engine1AHDSRControl These are referring to AHDSR envelopes?

Orvillain

@d-healey said in Broadcaster attachment design pattern:

@Orvillain Engine1AHDSRControl These are referring to AHDSR envelopes?

No, it refers to a broadcaster ID created in a previous step.

I'm not going to post everything I'm doing, but imagine it more like this:

    inline function addEngineLinkedFeatureListeners()
    {
        SharedData.broadcasters["ENGINE-NAME-HERE-FEATUREHERE"].addListener("string", "metadata", function(param, value)
        {
            BroadcasterCallbacks.controlLinkedFEATUREParameter(ENGINE-NAME-HERE, param, value);
        });
    }

I want to do the above, where the engine name or identifier increments. But I can't do that with a for loop, because it complains about it not liking local variables.

Engine1AHDSRControl is a broadcaster id. and depending on the number of engines, I automatically create these. So for 3 engines I get:

Engine1AHDSRControl
Engine2AHDSRControl
Engine3AHDSRControl

And if I change the number of engines, my code will dynamically create the right amount of parameters, the right amount of broadcasters, and the right amount of parameter/component groups, and then it will attach the correct broadcaster to the correct component group.

Next step is to add the listener to the broadcaster, in a dynamic way.

d.healey

@Orvillain This error?

Interface:! Engine3AHDSRControl: BroadcastersBuilder.js (291): Illegal iterator target

The error is being triggered only for Engine3 so that implies the for loop in general is fine, but there is a more specific issue.

Orvillain

@d-healey Yeah, there's some underlying closure thing going on I think.

d.healey

@Orvillain

for (engine in engines)
{
    local capturedEngine = engine;

    Globals.broadcasters[engine + "AHDSRControl"].addListener("string", "metadata", function(param, value)
    {
        BroadcasterCallbacks.controlLinkedAmpEnvParameter(capturedEngine, param, value);
    });
}

Oh I just realised the issue - the function within your loop doesn't have access to local variables outside of the function. So you'll need to find another structure.

One workaround is to use a lambda variable, I try to avoid this because I find their use usually indicates a structural issue. But it's a quick and dirty fix.

function[capturedEngine](param, value)

Another suggestion is instead of using an array of strings and a for in loop. Just use a for loop that counts from 0 to the number of engines you have. Then you can just declare a NUM_ENGINES constant at the top of your script and use it whenever you need to know the number of engine you have.

Orvillain

@d-healey said in Broadcaster attachment design pattern:

Another suggestion is instead of using an array of strings and a for in loop. Just use a for loop that counts from 0 to the number of engines you have. Then you can just declare a NUM_ENGINES constant at the top of your script and use it whenever you need to know the number of engine you have.

If I try that, for example (different feature area this time):

		for (i = 1; i < SharedData.engines.length; i++)
        {
            SharedData.broadcasters["Engine" + i + "ModeControl"].addListener("string", "metadata", function(index)
		{
			BroadcasterCallbacks.setActiveModeForSlot("Engine" + i, index);
		});
        }

Then I get:

Interface:! BroadcastersBuilder.js (260): Can't reference local variables in nested function body {{SW50ZXJmYWNlfEJyb2FkY2FzdGVyc0J1aWxkZXIuanN8ODQ3MHwyNjB8NTc=}}

d.healey

@Orvillain The error is basically saying what I said.

You can't access a local variable declared outside of the function.
