      I'd like to split the incoming audio into two paths. Not necessarily L/R, but just two paths so I can add different effects, nodes, etc. to each, and then sum them at the output.
      I am trying to use a Script FX network, but not sure what to use within it.

      ustkU 1 Reply Last reply Reply Quote 0
      • ustkU
        ustk @pcs800
        last edited by ustk

        @pcs800 just insert a container.split then add as many chains as you want inside it to split the signal in parallel paths

        Side note: for L/R it's a container.multi

        Hise made me an F5 dude, browser just suffers...

        pcs800P 1 Reply Last reply Reply Quote 0
        • pcs800P
          pcs800 @ustk
          last edited by

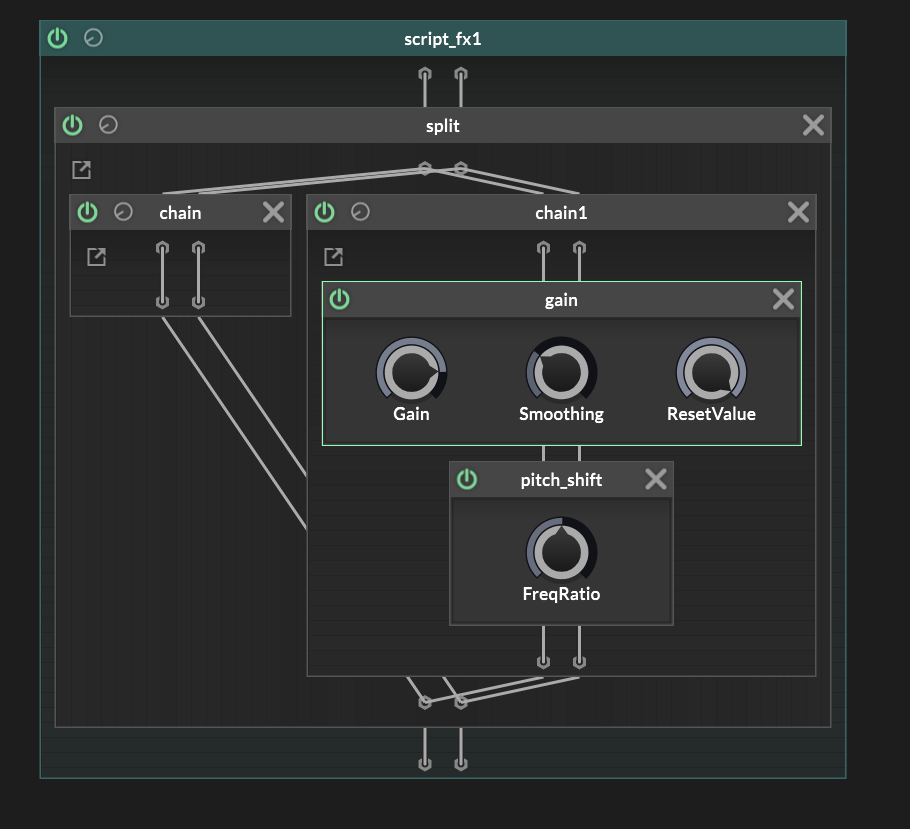

          @ustk Thanks for that information. I have the following, which works, but there's a large latency on the chain with the pitch shifter. Is there anything that can be done to eliminate the latency?

          ustkU 1 Reply Last reply Reply Quote 0
          • ustkU
            ustk @pcs800
            last edited by

            @pcs800 any pitch shift algorithm will necessarily bring latency. It need to be compensated in the other chain using a delay node and a converter sample->ms
            Now how much you need to compensate for this particular pitch node I don’t know…

            Hise made me an F5 dude, browser just suffers...

            pcs800P 1 Reply Last reply Reply Quote 0
            • pcs800P
              pcs800 @ustk
              last edited by

              @ustk If I add delay to the other one, then the plugin will cause latency in the audio it's applied to in the daw. No?

              LindonL 1 Reply Last reply Reply Quote 0
              • LindonL
                Lindon @pcs800
                last edited by

                @pcs800 ..and so you must make your plugin report its latency to the DAW...
