Auto Wah

[pcs800]

I built a wah pedal plugin which works great with daw automation which sweeps a couple parameteric eq's via the sweep knob on the gui.
I want to have an auto wah button which responds to incoming audio.
I have tried using an envelope follower in a Scipt FX, but not sure how to expose it's paramaters to the interface.
Or if I am even on the right track. Anyone help?

[ustk]

@pcs800 you’re definitely on the right track with an envelope follower
Now connect it to a global cable to grab the value from the UI script via a global cable callback

[pcs800]

@ustk So I just add a global_cable under the env follower?
Do I need to add a slot and select it?

[pcs800]

@ustk What's the function call to register the global cable callback in the Interface script?

[ustk]

@pcs800 you connect the envelope follower to the global cable and add a new slot

then in the UI script:

const var grm = Engine.getGlobalRoutingManager();
const var autoWah_gc  = grm.getCable("yourGlobalCableSlotName");

autoWah_gc.registerCallback(function(value)
{
	// do whatever with value, repaint a panel...

}, AsyncNotification);

[pcs800]

@ustk Thanks!
I have envelope_follower connected to global_cable (slot0), and I'm using:

const var grm = Engine.getGlobalRoutingManager();
const var autoWah_gc = grm.getCable("slot0");
autoWah_gc.registerCallback(onAutoWahCableCallback, true);

But the callback never fires - no values are printed. What am I missing? Can you share a complete working example or snippet?

[ustk]

@pcs800 Do you see the cable moving in the network?

Is onAutoWahCableCallback a function?

true should be AsyncNotification (literally) but I don't think it's an issue here...

[pcs800]

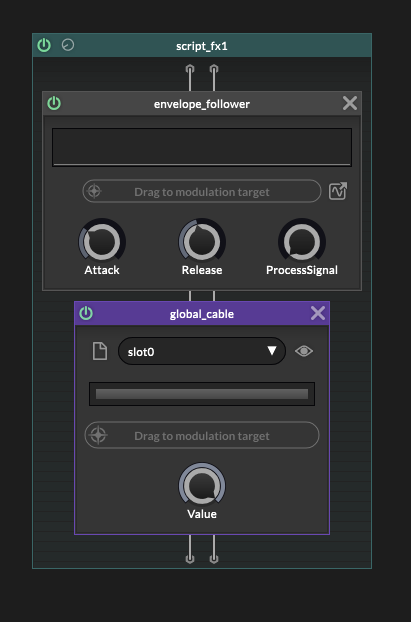

@ustk This is what i have in the network

[pcs800]

@pcs800 Never mind, I got it working.
I forgot to connect the modulation target
Thanks for the help.
