    • ChazroxC
      Chazrox
      last edited by Chazrox

      I've been struggling with this one for a while and finally got a solid working script! I just wanted to share with the community an easy working template.
      Table Preset Browser Working.gif

      Functions:
      Save
      Delete
      Rename
      Back
      Next
      Random
      Combobox presets with custom name save

      Hope this helps someone down the line!

      const var PresetList = Content.getComponent("PresetList");
      const var PresetNameToSave = Content.getComponent("PresetNameToSave");
      const var SaveOk = Content.getComponent("SaveOk");
      const var TableEnvelope1Pro = Synth.getTableProcessor("Table Envelope1");

      // File path for saving/loading
      const var presetFile = FileSystem.getFolder(FileSystem.Desktop).getChildFile("myFile.json");

      // Declare object to hold presets
      var AttackTablePresets = {};
      var lastRandomPresetName = "";

      //------------------------ LOAD existing presets on init ------------------------//

      if (presetFile.isFile())
      {
      	AttackTablePresets = presetFile.loadAsObject();

      	// Manually extract keys
      	var keyList = [];
      	for (k in AttackTablePresets)
      		keyList.push(k);

      	PresetList.set("items", keyList.join("\n"));
      }


      //------------------------ SAVE PRESET ------------------------//

      inline function onSaveOkControl(component, value)
      {
      	if (!value)
      		return;

      	local presetNameNOW = PresetNameToSave.get("text").trim();
      	if (presetNameNOW == "")
      		return;

      	local tableData0 = TableEnvelope1Pro.exportAsBase64(0);

      	// Add to object
      	AttackTablePresets[presetNameNOW] = tableData0;

      	// Save to file
      	presetFile.writeObject(AttackTablePresets);

      	// Update ComboBox
      	local keyList = [];
      	for (k in AttackTablePresets)
      		keyList.push(k);

      	PresetList.set("items", keyList.join("\n"));
      	PresetList.setValue(keyList.indexOf(presetNameNOW) + 1);
      	PresetNameToSave.set("text", "(Enter Preset Name)");
      };

      SaveOk.setControlCallback(onSaveOkControl);

      //--------------------------COMBOBOX RESTORE TABLE CONTROLS --------------------------//
      inline function onPresetListControl(component, value)
      {
          if (value <= 0)
              return;

          // Get the selected preset name from the ComboBox using the selected index
          local selectedPresetName = PresetList.getItemText();

          // Look up the table data in the preset object
          local presetData = AttackTablePresets[selectedPresetName];

          // Restore the table if data exists
          if (presetData)
              TableEnvelope1Pro.restoreFromBase64(0, presetData);
      };
      PresetList.setControlCallback(onPresetListControl);

      // ---------------------------DELETE CURRENT PRESET CONTROLS -------------------------------//
      const var DeletePresetButton = Content.getComponent("DeletePresetButton");

      inline function onDeletePresetButtonControl(component, value)
      {
          if (!value)
              return;

          local selectedIndex = PresetList.getValue();
          if (selectedIndex <= 0)
              return;

          // Get preset name
          reg presetNameToDelete = PresetList.getItemText();

          if (!isDefined(AttackTablePresets[presetNameToDelete]))
              return;

          Engine.showYesNoWindow("Delete Preset",
              "Are you sure you want to delete \"" + presetNameToDelete + "\"?",
              function(result) // nested callback
              {
                  if (result)  // IF 'YES'
                  {
                      var newPresets = {};
                      for (k in AttackTablePresets)
                      {
                          if (k != presetNameToDelete)
                              newPresets[k] = AttackTablePresets[k];
                      }

                      AttackTablePresets = newPresets;

                      presetFile.writeObject(AttackTablePresets);

                      var keyList = [];
                      for (k in AttackTablePresets)
                          keyList.push(k);

                      PresetList.set("items", keyList.join("\n"));
                      PresetList.setValue(PresetList.getValue() - 1); // Clear selection
                  }
              });
      };

      DeletePresetButton.setControlCallback(onDeletePresetButtonControl);

      //------------------------------------RANDOMIZER BUTTON CONTROLS ------------------------//
      const var RandomizePresetButton = Content.getComponent("RandomizePresetButton");

      inline function onRandomizePresetButtonControl(component, value)
      {
      	if (!value)
      		return;

      	// Collect preset names
      	local presetNames = [];
      	for (k in AttackTablePresets)
      		presetNames.push(k);

      	local total = presetNames.length;
      	if (total == 0)
      		return;

      	local randomPresetName = "";
      	local tries = 10; // safety cap to avoid infinite loop

      	while (tries > 0)
      	{
      		local i = Math.floor(Math.random() * total);
      		randomPresetName = presetNames[i];

      		// Stop if the new name is different, or only one preset exists
      		if (randomPresetName != lastRandomPresetName || total == 1)
      			break;

      		tries--;
      	}

      	// Find index of selected name in ComboBox
      	local comboIndex = 0;
      	for (i = 0; i < presetNames.length; i++)
      	{
      		if (presetNames[i] == randomPresetName)
      		{
      			comboIndex = i + 1;
      			break;
      		}
      	}

      	if (comboIndex > 0)
      		PresetList.setValue(comboIndex);

      	// Load the new preset
      	local presetData = AttackTablePresets[randomPresetName];
      	if (presetData)
      		TableEnvelope1Pro.restoreFromBase64(0, presetData);

      	// Store the name to avoid repetition next time
      	lastRandomPresetName = randomPresetName;
      };

      RandomizePresetButton.setControlCallback(onRandomizePresetButtonControl);


      //--------------------------BACK BUTTON CONTROLS -------------
      const var BackPresetButton = Content.getComponent("BackPresetButton");

      inline function onBackPresetButtonControl(component, value)
      {
      	if (!value)
      		return;

      	local currentIndex = PresetList.getValue();
      	local totalItems = 0;

      	for (k in AttackTablePresets)
      		totalItems++;

      	// Wrap to last if we're at the first
      	if (currentIndex <= 1)
      		currentIndex = totalItems + 1;

      	local newIndex = currentIndex - 1;
      	PresetList.setValue(newIndex);

      	local presetName = PresetList.getItemText();
      	local presetData = AttackTablePresets[presetName];

      	if (presetData)
      		TableEnvelope1Pro.restoreFromBase64(0, presetData);
      };
      BackPresetButton.setControlCallback(onBackPresetButtonControl);


      //-------------------------------NEXT BUTTON CONTROLS ---------------

      const var NextPresetButton = Content.getComponent("NextPresetButton");

      inline function onNextPresetButtonControl(component, value)
      {
      	if (!value)
      		return;

      	local currentIndex = PresetList.getValue();
      	local totalItems = 0;

      	for (k in AttackTablePresets)
      		totalItems++;

      	// Wrap to first if we're at the last
      	if (currentIndex >= totalItems)
      		currentIndex = 0;

      	local newIndex = currentIndex + 1;
      	PresetList.setValue(newIndex);

      	local presetName = PresetList.getItemText();
      	local presetData = AttackTablePresets[presetName];

      	if (presetData)
      		TableEnvelope1Pro.restoreFromBase64(0, presetData);
      };
      NextPresetButton.setControlCallback(onNextPresetButtonControl);

      // -------------------------RENAME PRESET BUTTON CONTROLS-----------------------
      const var RenamePresetButton = Content.getComponent("RenamePresetButton");

      inline function onRenamePresetButtonControl(component, value)
      {
      	if (!value)
      		return;

      	local selectedIndex = PresetList.getValue();
      	if (selectedIndex <= 0)
      		return;

      	local oldName = PresetList.getItemText();
      	local newName = PresetNameToSave.get("text").trim();

      	if (newName == "" || newName == oldName)
      		return;

      	// If new name already exists, do nothing (or optionally warn)
      	if (isDefined(AttackTablePresets[newName]))
      	{
      		Console.print("A preset with that name already exists.");
      		return;
      	}

      	// Copy data to new name
      	AttackTablePresets[newName] = AttackTablePresets[oldName];

      	// Rebuild the object without the old key
      	local newPresets = {};
      	for (k in AttackTablePresets)
      	{
      		if (k != oldName)
      			newPresets[k] = AttackTablePresets[k];
      	}

      	AttackTablePresets = newPresets;

      	// Save updated object to file
      	presetFile.writeObject(AttackTablePresets);

      	// Update ComboBox
      	local keyList = [];
      	for (k in AttackTablePresets)
      		keyList.push(k);

      	PresetList.set("items", keyList.join("\n"));

      	// Select the renamed preset
      	PresetList.setValue(keyList.indexOf(newName) + 1);
      };
      RenamePresetButton.setControlCallback(onRenamePresetButtonControl);



      I had the help of @d-healey and @Lindon with making this and a few extra helps from gpt.

      Bless! 🙏

      • ROX

      PS> if anybody wants to make improvements and toss it back, have at it! Together we can make the ULtimate Table preset menu. haha.

      d.healeyD 1 Reply Last reply Reply Quote 6
      • d.healeyD
        d.healey @Chazrox
        last edited by

        Looking good! I think this is a really nice project to learn from. It's simple enough but also provides a few challenges.

        var AttackTablePresets = {};

        Use const for objects in on init

        var lastRandomPresetName = "";

        Use reg for variables in on init.

        Avoid using var unless that's your only choice.

        @Chazrox said in Free TABLE PRESETS Sub-Menu Template || Ready-to-run!:

        if (presetFile.isFile())
        {
        AttackTablePresets = presetFile.loadAsObject();

        // Manually extract keys
        var keyList = [];
        for (k in AttackTablePresets)
        keyList.push(k);

        PresetList.set("items", keyList.join("\n"));
        }

        Put this in an inline function and replace the var with a local

        @Chazrox said in Free TABLE PRESETS Sub-Menu Template || Ready-to-run!:

        // Get preset name
        reg presetNameToDelete = PresetList.getItemText();


        Use local in inline functions, keep the reg available - you only get 32 of them per namespace.

        @Chazrox said in Free TABLE PRESETS Sub-Menu Template || Ready-to-run!:

        "Are you sure you want to delete "" + presetNameToDelete + ""?"

        Quotes look a bit weird here, what's wrong with
        "Are you sure you want to delete " + presetNameToDelete + "?";

        @Chazrox said in Free TABLE PRESETS Sub-Menu Template || Ready-to-run!:

        function(result) // nested callback

        All the stuff in this function looks similar to stuff you're doing elsewhere. Can you consolidate it into a single inline function that you can use in both places to reduce the repetition?

        Libre Wave - Freedom respecting instruments and effects
        My Patreon - HISE tutorials
        YouTube Channel - Public HISE tutorials

        ChazroxC 1 Reply Last reply Reply Quote 1
        • ChazroxC
          Chazrox @d.healey
          last edited by Chazrox

          @d-healey Sweet! Yes I will clean this up good. 🙏

          Thank You for the help! I wanna make sub menus for everything now. hahaha.

          1 Reply Last reply Reply Quote 0
          • ChazroxC Chazrox marked this topic as a question
          • ChazroxC Chazrox has marked this topic as solved
          • ChazroxC
            Chazrox
            last edited by Chazrox

            Update*

            I was able to easily duplicate this process for the second table! I feel so accomplished. haha. ✊

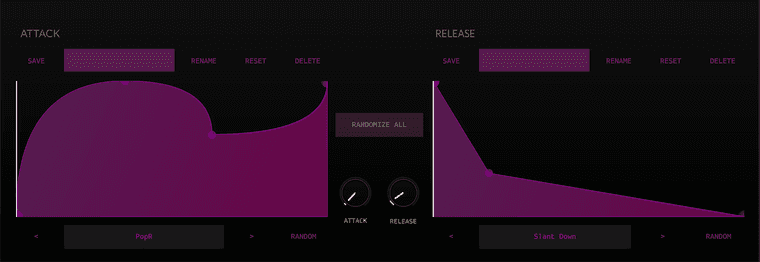

            Screenshot 2025-07-11 at 10.54.22 PM.png
