Make the Gain knob smooth the gain?

[Felix W]

@Chazrox Yes, I have searched the HISE documentation many times, but because I am a novice, I don’t know how to use many APIs, and I am crying because of my stupidity.

[David Healey]

@CatABC said in Make the Gain knob smooth the gain?:

crying because of my stupidity

You're not stupid. We all start at the beginning. Everything is hard until it becomes easy. Keep going.

[Felix W]

@d-healey

Thanks for the encouragement David,Please teach me again, when I trigger the second C#0, how can I add a fade-out to the note that responded to the first time?

[David Healey]

@CatABC Replace the Synth.noteOff with Synth.addVolumeFade - set the volume to -100 and that will also turn the note off.

[Felix W]

@d-healey
I think I have it working. Next I need to move on to multiple generators to test!
Thank you so much for your teaching ，David, I love you

function onNoteOn()
{
	local n = Message.getNoteNumber();

	if (n == ks)
	{
		if (eventIds.getValue(lastNote) != -99)
		{
			 Synth.noteOffByEventId(eventIds.getValue(lastNote));
		}

		if (Synth.isKeyDown(lastNote))
			eventIds.setValue(lastNote, Synth.playNote(lastNote, Message.getVelocity()));


		return Message.ignoreEvent(true);
	}
	if (n == 25)
		{
			if (eventIds.getValue(lastNote) != -99)
				{
					Synth.addVolumeFade(eventIds.getValue(lastNote), 500, -100);
				}
			return Message.ignoreEvent(true);
		}
	lastNote = n;
	eventIds.setValue(n, Message.makeArtificial());

}

[David Healey]

@CatABC Looks like it's almost there. But you have added that n == 25 block. If 25 is your keyswitch then you should be using the code I put already above that and just replace the noteOff with the volumeFade. No need for the extra block.

[Felix W]

@d-healey I tried to replace it directly, but it brought some problems, such as the note received the new KS and the previous note could not be stopped.

[David Healey]

@CatABC said in Make the Gain knob smooth the gain?:

I tried to replace it directly, but it brought some problems, such as the note received the new KS and the previous note could not be stopped.

Show me what you tried, we do it all one step at a time.

[Felix W]

@d-healey

When I do this, there will be errors like this, addVolumeFade seems to be invalid on the second KS

function onNoteOn()
{
	local n = Message.getNoteNumber();

	if (n == ks)
	{


		if (eventIds.getValue(lastNote) != -99)
		{
			 //Synth.noteOffByEventId(eventIds.getValue(lastNote));
			 Synth.addVolumeFade(eventIds.getValue(lastNote), 500, -100);
		}

		if (Synth.isKeyDown(lastNote))
			eventIds.setValue(lastNote, Synth.playNote(lastNote, Message.getVelocity()));


		return Message.ignoreEvent(true);
	}

	lastNote = n;
	eventIds.setValue(n, Message.makeArtificial());

onNoteOn() - Line 12, column 24: NoteOn with ID173 wasn't found
onNoteOn() - Line 12, column 24: NoteOn with ID178 wasn't found

[David Healey]

@CatABC Working here

HiseSnippet 1152.3oc2W01aaaCDlJNZXxcqXcnXXeTCaevdHMvJwwMFAAMu4zYz3Fi3zz8sBVpS1DQhTihJaFC4+39oz+AaGk7KRItYoFqCqyevv73c7d38xCO2WIYPRhTQrpd93XfX8E1CFKziNbDkKHcOhX8P6dzDMnbyEcv3XZRB3Srrp7bi.KmUIYed2yNfFRELXtHB4BImAmvi354R6u2K3ggGS8gy4QEzt4dcYRwgxPYJhmJ1MHwT1kzgvKoF0Vwl7SzjQDqezdqM1j0z+o9arwVsawnsf1Azf.uM8a1r01s81rMs41sfFaQr9rN9bsTMPS0PBwZ0Cj9iGLR9qhbGbAOg+1PvrviL.8bt3ikg9lqnQJ4vQ7P+9SCTIDhkc+4gsJ4gsGa2i6ymIed36qx1vctEECfVqTFdUJAOuhvqQA3s.HYU.RqlCoGYOfo3w546XvyCr6JvrY.EySEgRttjU99J1GJQMD50inWBGqvEyrnVqFMVyE+p9NUqh4pDs6kIt65tQyYqgqPS65aj1QLjKf0YJ.uclnvI7DcMzzo5rd.VGT6IsaaNNELzMDqzdoTC6DjJXZtT3JEl0mJpUu5uW0ITxngtB7r6g2HrxX8gPlAuLM5sfxb1NUc3At0Pc1EwV8pNnYYRl4TzjKngoPsodqt62sqqAEnlFscx5.Vm56egLLMBLUp2k4q4tkIr7Dur3hiy0Um3x7ygm7BX7QXNctEFO4L6DSt4Itlatkwgzwl0E1nv89B.CGb83Z0qWeGGGiSUfNUIloDenPpfNF+TSqRAC5t1DglddXfTfxtMRDy8joJXeklGvYbZH5LyUr50UcuYNJH3CMIc6XpnPtvjJxiCh7i+fwcxMXgFle4JiKSkrRFFZ7pAZ2XaC8yh2Yhg0DYPdM2qLNYlhXKV49V62eeaQZEVdiUAEkhtBt9zXP79HaHS5Fwe8ptGQ0TSy9DYndw.lZLPv5H3JjpMu02w9HH4RsLFIauEu.xHI8SCo5xzTFx7IafwfRbCl9eQBVpUjr+eLtq6KDejcetlMZwXbkEfQLR8w.iSX7+R6NAA.SOGfqZe7O+wgdun6eXt6ef8.jbMq+Hy4eS1Z2WSuBbeNH.kI34cGOW+G22mqiu2OWeJSit+bEUjDKSJcvCfH94RgIJLW3qRv2Wfe4LS1rn7CkT0B25cO6X7RtPaFPQpurxh8ijoBcoxfJ20T.dK4T.q9eto.9DnYuzfJNSw3.dTbHzQbE9jFJwfwuFovBnog5oRKWK2SJjwijBNqXh9LPq3CGBphXegWn80Zb1x4Rd7dmAg.sXQ6Or2IXwFUgwIXIiEdevCssv702ZmCWWSCn6mtjzU9+MI8YxTMWLrGEKB+Mbn.bdmAH2HCPuKDPnYPAqUL7a4qaXVmSNJ7yV7m3mIa5YVaMYSuoa9uhOhnLk7Mr7QfL0oedlD7dKx9iXN3+HDW65QxFKpXtLBY4dCiU9ntkgarrFt4xZXyk0vsVVCasrF9zk0vs+6Mz7Hz9oZYTdqIgzqemrYJsr5HnXUdVGA4u.bWGmC

[Felix W]

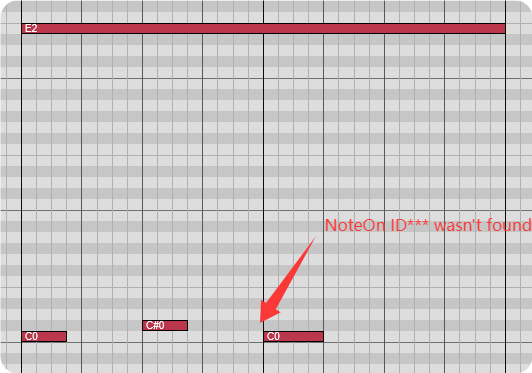

@d-healey After playing it once completely, the MIDI will start to display when you play it again.

 onNoteOn() - Line 9, column 23: NoteOn with ID5 wasn't found

[Felix W]

@d-healey However, this error does not seem to affect what happened

[David Healey]

@CatABC Is there a reason you are triggering the keyswitch and E2 at the same time?

We need to reset the stored event ID in note off.

HiseSnippet 1160.3oc2W01aaaCDlJNZXxcqXcnXXeTCXevdHMvxwwMFAAMuXmNiFmXDmlsuUvRcxlHRjZRTYyXH+G2Ok9OX6njskThaVpw5v57GLLOdGuGdu7vyCijLHNVFQLpdwzPfX7ElilJTSNZBkKH86RLdr4.ZrBhryDc3zPZbL3RLLp7Rs.Cq0Ioed2KNj5SELHWDgbojyfS3AbUtzg6+Jtu+wTW3BdPAsaseelTbjzWlf3ohYCRHkcEcLbJUq1ZljejFOgX7Cla2bKVK2m61r41cZynsgNdTOOmsba0p8Ncb1pCs0NsgFaSL9rdtbkLZjhpfXhw5GJcmNZh7WEYN3RdL+s9fdgCYD54LwGK8c0WQsTxQS39tCmGnhIDCyg4gsJYgsmZNf6xWHOO78UoaXmaQw.nwZkgWkRvyoH7ZT.dKARFEfz5YP5IliXQ7PU9NZ77Hy9BLa5Qw7TQnjoKYstULORhZHTaFPuBNNBWrvhZsazXCa7q56VsJlqhU1WEaumcyVKVCWil12UKsmXLW.axh.71oiBmviU0PSmqyldXcPsm0oi93hfw19Xk1oREfF2XWuDASwkBaoPK6LQs5U+8pV9RF02VfpL.uUX0wligTiNMI3sPj97spZw8rqg5rGhu5UsPyRkrvwnIWR8SfZy8Xc6uaOaMRPM0Zak1ErI008RoeR.nqVuOy2vdacn4YNowFKqapNykYmCO9UvztXdM2BsmrVbhw29D2vNyxPe5T85BaT3deIfgCtZZs50quqkk1oQfJIRrPI9XgLB5o8SMUTBnQ2M5HTgXs.kcWjHx8jtR3fHE2iy3TezY5qX0apZe6bjm2GZR5twTQgbgNUjEGDYG+gS6kYvRMLEWK8ljUjg27xfVWpGI880PRi6assleZ46LyvZhz6yF1WqczBEwdvxM1lu+F6h7NrrNuBJJE8Eb0Ygf38wFQl0th+5086RUTMavLYndg.l2zPvnKbMxEmwMXY1EhuRICQ136PbfTVR2DeppLOllse1FXLnD4glfPDi0gEeM3eLxsGJDeh4PthMY4XbskfQLR8w.iydR3KM644ALUN.W273e9iC+eQ2+3L2+HyQH6aZySpy+lz01+D8Zv9kf.hzAOm6487+3g9dd3C987yXJz8WDQEwgx3RG7HHfegTniB4BecL9.D7KmqylEkejjFszsd2KNFujK0lQTjWLsr3f.YhPUpLnx8MlfyJNlv5+maLgOAZ1KMIi0bLNhGD5C8DWiu2gRzX7qQJLOZhuZtzx0xCjBY3DofyJlnOGTQ7wignhXeoWnCTJb3ybIOc+yAefVrn862+DrXiFgwIXEiENevS0sz702ZlAWacCn8mtjzU9+MI84xDEWLd.EKB+Mbn.bXnQH2HCPuKDfudPAi0z7aYqanWmQNJbSW7m3mYa5nWaLaSm4a9uhOBnrH4aXYi.oqS+7TI38Vj9O0rv+xHt11gjNVTwbY.xx8FFq7QcGCatpFt0pZXqU0vsWUCaupF97U0vc96MT+HzAIJYPVqIgLXXuzYJML5InXUdZGA4u.rTF5YI

[Felix W]

@d-healey C0 will be a KeySwitch, and I will have many other keyswitch involved after this, so I need to trigger a KS first to ensure it is the articulation of C0

[David Healey]

@CatABC I see, that makes sense.

[Felix W]

@d-healey

I upgraded the sampler to two and used MidiMuter to switch the KS. When C#0 was in, it worked fine, but when I switched back to C0 again, it couldn't reproduce the logic.

HiseSnippet 1760.3oc6a0raaaDDlzxLMRoMMoH.oGYC5Ao.GCQpeRLLLh+StwHwwBQNN8PAB1PtRZgo1UkboaDB7CP6CPAxkh7Rz1q4ZeK5sdMnG501YIoDIkoTjksUsLjArQ1Y2Y2uYlcmY9jPpZyLvNNLaI4L60oMVR9SUp0gxatQSDgJs8lBA6yrbag2BYhkVuSajiC1TRVN02HVgb54k794CObcjEhZfCEIIsOiXfeBoEgGJs5pOlXYI1s8Hshr5hqtsAitAyh4BnIkRdo1HiCPMvOEIV1bJROB4zTR9tJkzKXTz79l55kVprApLdo5n500JXVrX4GrjVgkPEePYb9RRxWohIgyrqwQbrij77qyL6TqI6Gn9Gv9DGxqrvhAZR0fS1W7VLKSgIJjJsQShkY0ttIGII4OoZnSKkuS6VJ6PLI8jG57tg2DpgZD0AJOWb3kJF7zhBu7QfWBPRNBjl2GR2TolgMoMObFAdtlx1TN1tNxHdrzesRy8OoT1fAqfxWrE5.7V1vfdZjsb97KnB+I2xYx.wJGt5gHaUgEtiKrFM0UT8t7rXCLOlCI6cBWzc.sSPY8QQY8AnbgQQ4Bfx0coFbBipxnOkww6RylKyaxjIcZRc0r6.Z.22D6gXxm515UX6r4TWYEU8h4fE8F32zgVxhNX9ZbtM4UvvrQjSZPY130c4bFcAUg6Jpd5CPO89zSqO8JL.8JjndGMBFUow2nzFSiJ+4tQUdxaTiajJefQcTF09uXVut2Myz8Mm3woMyxRXsILsHip8vTLK0yUs.77wxE2agPVi3ohTFbpnnYJM7yUDYgL51TBe21X5fxeJEjfA9WOe6MQbjH+UfLXcsw1bh.BxahODpd3mMKsxlXmC3r1P8iikpCRxxLcsP73YdE0mBl.7AwR2IRoQcH7NQqeclkNdTg3MUpR3FMSFiyk.FAO04AFCJh8YJUpWGavCA37Ja8smOUrhd7W2+3ulRMBE6kEO3vqoMn9Mdete42G09MZOx8arqAGcHdOaD0oMyI1FWC2hrGiJr4PgO2AJPh+9mIhcQkuACYm3Te3gaAlXh5TCwcs8tDrVKlKkGKnmZXswnMlswL+Eu1XlazaiollZPOKI0FyOOuhpeaBG3nJpdubF0LARvGBIZ11THuBsADOVzvFCHWXgOg3vyBIk6snEqC2cxdukVJm2NXianZgb7J5LfdIRawLPVpTX6GPUJHmeFupXTQ8pCbf5UuIntVuiETYeQF5rcOsbpe0JpBbzs3le6NHSyvtyGl5KnVRz718zx2snS5fyzeiHNOF2YSHlEph3nR2aKc5eKWHniq1VnNhwQlHhguOF7GPRrr4xka4zo8NUaLbWm1aU90DqHNnrbanpDfOnljpZnSxqSkSlSx2KcZcSoORfY+eGAXKV3Qhfa.rKm6DB5tv9zC7dPu6eGIutW.p6lBWgofzieEfFFhErDVCpXWmXPPVPTd4g0Myn+133lJMhiR3j7cPT+se8NU7UHQE87HIZF9urOVKXyZyJg9CtlRuFYC9fABajNdAgTibAAsg2kPOaPdt.OKrTtGZtdPgA+dokHlBQQauVxy2Gs3qzHrGetRcxqqwcMNPbszo+MQZZn+yXeb.o6hwZjVssvUnGBYjAIBL9EP3tNx0h2UZ733NLJqcSFkXD0A7LLvqoQCrcTrmnAALfPFGDJ4Vq9LrEFEsypud0m.UfQ1feBOl9BsS7GMRhwquTwGtphG2pSu7FRc4l2vyXtbBswNH3R3qgDnPgiZPC7FX3zoTrkHop7bhTG9iyKF62AO0zav+B+DLolXrbvjZcmLpId6to9dAvLHF2D8AwMY0+9w+14N2DsDImDSZeZnmnFwjtIzg.M9V6KJ1pDdhsX1shrtqtZWg5QEVEQisYv3X6zNhHX2g+4CqPQvcfZXvxM20w.bLhq8QeoU00xA+BhIuoVTECEqGU7iP1lPHy37mJ0UltoRoeRnRUZFUpoapTEmVoRchg8E.xTynRMiJ0IiJk9T.UpfsaFUpgPkReFUpYTolV9JXF9qOnO8K1Qwaq.7EzU8Bkp++DKuvvKsvf3k9t69S+5kTdou6susz6SfW5MRhWJPibz4kl669qyRdo.P+iKC7ROwv6TyQsvv3n9i8wQs7LNpSabTm9InNk7UTNiV5DkV5UNqnkN7T8STJpEl8s8cofhZgYTTO8TTmezhaejmuSN5pm43c7otNQccmdZrST3dlQo8rA0SB5sShynExvl8RC+JChDFW0SBX2Tu+WljVYGwXUsiWJnET96kFFw2pion93pXgwUwhiqhkFWEKOtJd+wUwG7wUTzcxZtbVK+2I.K9pU7ZDRV1m.u2SFo+CXHo9dI

[David Healey]

@CatABC I posted a video to Patreon at the start of the month about keyswitching using midi muters. It will probably help you here.

[Felix W]

@d-healey I studied the relevant videos you posted on Patreon, but they don't apply to the problem I'm facing now.

[David Healey]

@CatABC You're trying to use keyswitches to toggle MIDI muters?

[Felix W]

@d-healey Yes, it's back to the previous problem. I need to switch the Sampler multiple times on a note. I made the switchers according to your video, but they don't apply to this problem.
