How do I get GlobalCable value?

[Chazrox]

as the title says....

I created a clock ramp in scriptNode and connected the needed values to global cables. How do I retrieve the values from these cables?

I have one tracking beat ticks and one tracking whole bar progression.

You guessed it im making a playhead and tempo marker. lol.

So with that said, I added a slider to my UI that I am going to later LAF to look like a cool progression bar of some sort.....

Any tips or snips? haha.

Thank You!

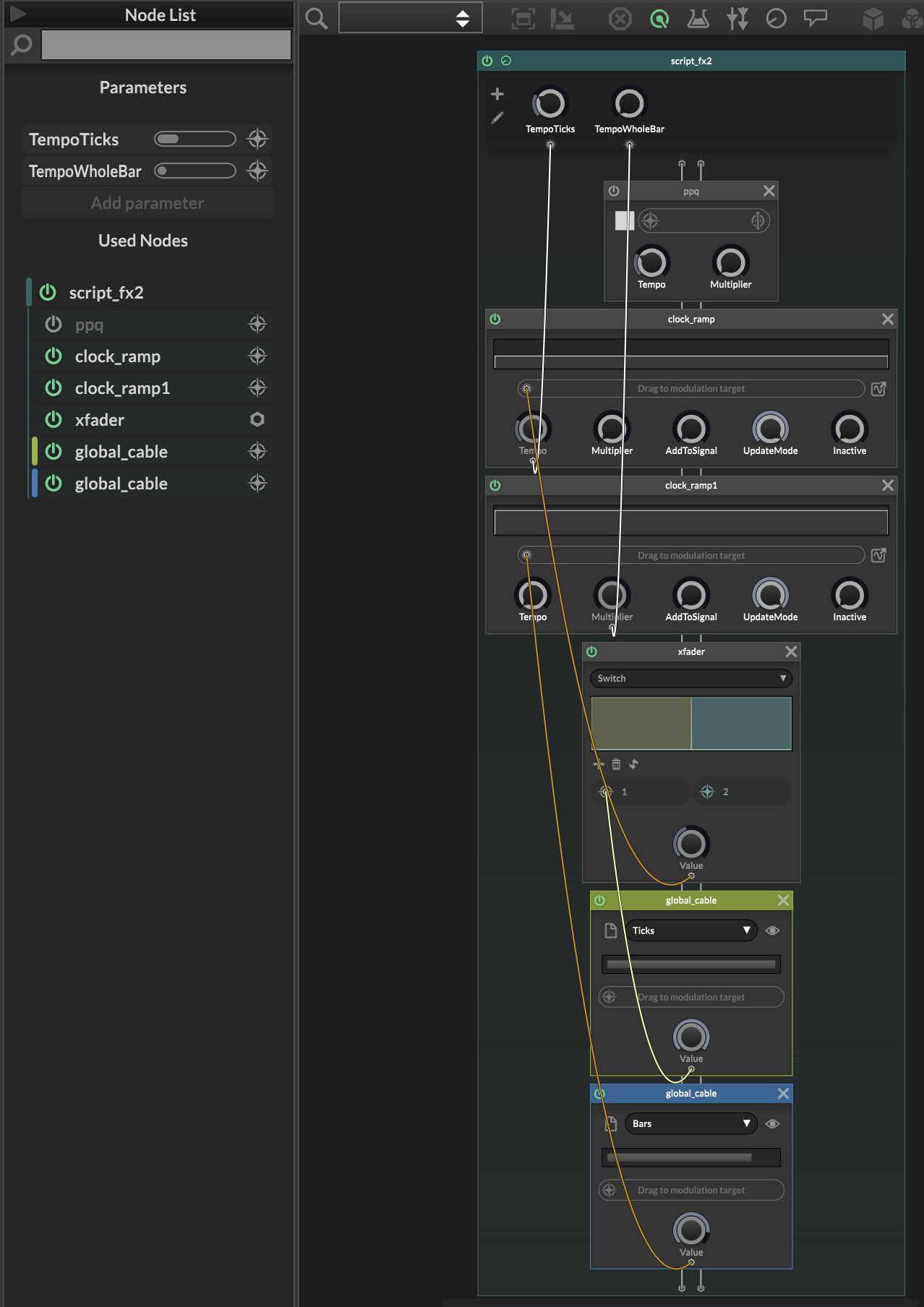

My scriptNode setup...

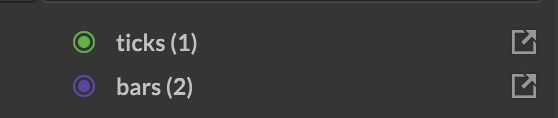

Shown in module tree..

[Chazrox]

update...

I figured it out...

I found the snippet in Docs and modified it for my usage. Yee.

const var rm = Engine.getGlobalRoutingManager();
const var mc = rm.getCable("bars");
const var pnlMasterPlayheadBars = Content.getComponent("pnlMasterPlayheadBars");
pnlMasterPlayheadBars.data.value = 0;

mc.registerCallback(function(value)
{
	pnlMasterPlayheadBars.data.value = value;
	pnlMasterPlayheadBars.repaint();

	//Console.print(value);
}, AsyncNotification);

pnlMasterPlayheadBars.setPaintRoutine(function(g)
{
	var a =  this.getLocalBounds(0);

	g.fillAll(this.get("bgColour"));
	g.setColour(Colours.withAlpha(this.get("textColour"), 1.0));

	var x = a[2] / 100 * (this.data.value * 100);

	g.drawVerticalLine(x, 0, a[3]);
});
